Component Description For Front SAM Control Unit - GF54.21-P-7010RF

Model 205, 253

Courtesy of MERCEDES-BENZ USA

Shown on model 205 up to 31.05.2018

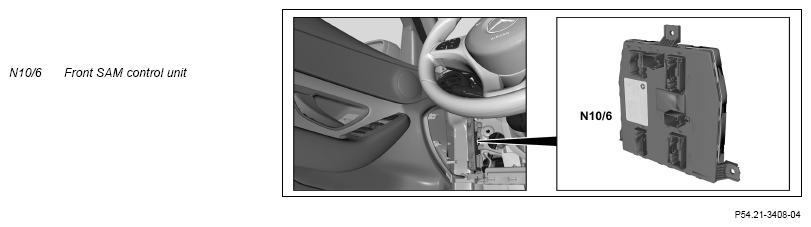

Location

The front SAM control unit is located at the left front on the A-pillar.

Tasks

The front SAM control unit has the following tasks:

• Reading in of sensors and signals
• Evaluation of input factors
• Controlling functions
• Actuation of components
• Switching of relays

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line
• Instrument panel LIN (LIN 1)
• Roof LIN (LIN B13) (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019)
• Battery sensor LIN (LIN B15)
• Rain/light sensor LIN (LIN B16)
• Interior CAN (CAN B)

Direct line

The signals from the following components are read via direct lines:

• Outside temperature sensor (B14)
• CDI control unit (N3/9) (diesel engine)
• ME-SFI [ME] control unit (N3/10) (gasoline engine)
• Hazard warning system button (N72/1s57)
• Exterior lights switch (S1)
• Instrument illumination brightness control (S1r1)
• Right front brake wear sensor (S10/2)
• Brake fluid level switch (S11)
• Center console anti-theft alarm system (ATA [EDW]) switch group (S21) (model 205.4 with code 551 (Anti-theft alarm system (ATA [EDW])))
• Coolant level switch (S41)
• Windshield washer system washer fluid level switch (S42)
• Hood contact switch on passenger side (S62/42)
• Hood contact switch on driver's side (S62/43)
• Switch for separate trunk lid lock (S88/6) (model 205.0/1/3/4 with CODE 887 (Separate trunk lid lock))

Instrument panel LIN

The signals from the following components are read-in over the instrument panel LIN:

• Driver-side instrument panel button group (S6/1) (with code 235 (Active Parking Assist with PARKTRONIC), code 238 (Active Lane Keeping Assist), code 266 (DISTRONIC PLUS with Steering Assist and Stop & Go Pilot), code 463 (Head-up display) and code 501 (360° camera))
• Analog clock (A70/1) (with code 246 (Analog clock))

Roof LIN (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019)

The signals of the following components are read-in over the roof LIN:

• Overhead control panel control unit (N70)
• Garage door opener (A67n2) (with CODE 232 (Garage door opener))

Battery sensor LIN

The battery sensor (B95) signals are read in over the battery sensor LIN.

Rain and light sensor LIN

The signals from the following components are read in over the rain/light sensor LIN:

• Rain/light sensor with additional functions (B38/2)
• Wiper motor (M6/1)

Interior CAN

The signals are read in by the front SAM control unit via the interior CAN. The functions that use these signals are described in the individual function descriptions (see the appropriate block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Controlling functions

The front SAM control unit also controls the following functions:

• Energy management
• Exterior lighting (except for code 631 (LHD static LED headlamp), except for code 632 (RHD static LED headlamp), except for code 640 (High Performance LED), except for code 641 (LHD dynamic LED headlamp) and except for code 642 (RHD dynamic LED headlamp))
• Interior illumination
• Windshield wiper system

Actuation of components

The actuation of the components takes place via the following connections:

• Direct line
• Instrument panel LIN
• Rain and light sensor LIN
• Roof LIN (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019)
• Interior CAN

Direct line

The following components are actuated via direct lines:

• Left front lamp unit (E1):
  • Left high beam (E1e1) (except CODE (631) Static left-hand traffic LED headlamp, except CODE (632) Static right-hand traffic LED headlamp, except CODE (640) High Performance LED, except CODE (641) DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP and except CODE (642) DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP)
  • Left low beam (E1e2) (except CODE (631) Static left-hand traffic LED headlamp, except CODE (632) Static right-hand traffic LED headlamp, except CODE (640) High Performance LED, except CODE (641) DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP and except CODE (642) DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP)
  • Left turn signal light (E1e5) (except CODE (631) Static left-hand traffic LED headlamp, except CODE (632) Static right-hand traffic LED headlamp, except CODE (640) High Performance LED, except CODE (641) DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP and except CODE (642) DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP)
  • Left front side marker light (E1e6) (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019, with code 494 (USA version) or code 460 (Canada version) and except for code 640 (High Performance LED), except for code 641 (left-hand traffic dynamic LED headlamp) and except for code 642 (right-hand traffic dynamic LED headlamp) and model 205 as of 01.06.2018, model 253 (except for model 253.99) as of 01.06.2019, with code 494 (USA version) or code 460 (Canada version) and except for code 631 (left-hand traffic static LED headlamp), except for code 632 (right-hand traffic static LED headlamp), except for code 640 (High Performance LED), except for code 641 (left-hand traffic dynamic LED headlamp) and except for code 642 (right-hand traffic dynamic LED headlamp))
  • Left parking light, standing light and daytime running lamp (E1e13) (except CODE 631 (Static left-hand traffic LED headlamp), except CODE 632 (Static right-hand traffic LED headlamp), except CODE 640 (High Performance LED), except CODE 641 (STATIC LEFT-HAND TRAFFIC LED HEADLAMP) and except CODE 642 (STATIC RIGHT-HAND TRAFFIC LED HEADLAMP))
• Right front lamp unit (E2):
  • Right high beam (E2e1) (except CODE (631) Static left-hand traffic LED headlamp, except CODE (632) Static right-hand traffic LED headlamp, except CODE (640) High Performance LED, except CODE (641) DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP and except CODE (642) DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP)
  • Right low beam (E2e2) (except CODE (631) Static left-hand traffic LED headlamp, except CODE (632) Static right-hand traffic LED headlamp, except CODE (640) High Performance LED, except CODE (641) DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP and except CODE (642) DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP)
  • Right turn signal light (E2e5) (except CODE (631) Static left-hand traffic LED headlamp, except CODE (632) Static right-hand traffic LED headlamp, except CODE (640) High Performance LED, except CODE (641) DYNAMIC LEFT-HAND TRAFFIC LED HEADLAMP and except CODE (642) DYNAMIC RIGHT-HAND TRAFFIC LED HEADLAMP)
  • Right front side marker light (E2e6) (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019, with code 494 (USA version) or code 460 (Canada version) and except for code 640 (High Performance LED), except for code 641 (left-hand traffic dynamic LED headlamp) and except for code 642 (right-hand traffic dynamic LED headlamp) and model 205 as of 01.06.2018, model 253 (except for model 253.99) as of 01.06.2019, with code 494 (USA version) or code 460 (Canada version) and except for code 631 (left-hand traffic static LED headlamp), except for code 632 (right-hand traffic static LED headlamp), except for code 640 (High Performance LED), except for code 641 (left-hand traffic dynamic LED headlamp) and except for code 642 (right-hand traffic dynamic LED headlamp))
  • Right parking light, standing light and daytime running lamp (E2e13) (except CODE 631 (Static left-hand traffic LED headlamp), except CODE 632 (Static right-hand traffic LED headlamp), except CODE 640 (High Performance LED), except CODE 641 (STATIC LEFT-HAND TRAFFIC LED HEADLAMP) and except CODE 642 (STATIC RIGHT-HAND TRAFFIC LED HEADLAMP))
• Glove compartment lamp (E13/1) (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019, with code P21 (Air quality package) or model 205 as of 01.06.2018, model 253 (except for model 253.99) as of 01.06.2019, model 253.99)

• Stowage compartment illumination (E13/3) (with code 876 (Interior Light Package))
• Right front footwell lamp (E17/15) (with code 876 (Interior Light Package), model 205 as of 01.06.2018, model 253 (except for model 253.99) as of 01.06.2019, model 253.99, except for code 877 (ambient lighting))
• Left front footwell lamp (E17/16) (with code 876 (Interior Light Package), model 205 as of 01.06.2018, model 253 (except for model 253.99) as of 01.06.2019, model 253.99, except for code 877 (ambient lighting))
• Left rear footwell lamp (E17/17) (with code 876 (Interior Light Package), model 205.1 as of 01.06.2018 except for code 877 (ambient lighting))
• Right rear footwell lamp (E17/18) (with code 876 (Interior Light Package), model 205.1 as of 01.06.2018 except for code 877 (ambient lighting))
• Left front illuminated door sill molding (E17/47) (model 205.0/2/3/4, 253 with code 877 (Ambient lighting), model 205.1)
• Right front illuminated door sill molding (E17/48) (model 205.0/2/3/4, 253 with code 877 (Ambient lighting), model 205.1)
• Left rear illuminated door sill molding (E17/51) (model 205.1)
• Right rear illuminated door sill molding (E17/52) (model 205.1)
• Left horn (H2) and right horn (H2/1) (model 205 as of 01.06.2018, model 253 (except for model 253.99) as of 01.06.2019, model 253.99)
• Windshield washer system pump (M5/1)
• Relay in electric steering lock control unit (N26/5) (transmission 716)
• Spray nozzle hose heater (R2/11) (with code 875 (Heated windshield washer system))

The front SAM control unit also powers the comfort switch and controls illumination, switch illumination (circuit 58d) and the ambiance illumination (with code 877 (Ambiance illumination)).

Instrument panel LIN

The following components are actuated via the instrument panel LIN:

• Analog clock (with code 246 (Analog clock))
• Driver-side instrument panel button group (with code 235 (Active Parking Assist with PARKTRONIC), code 238 (Active Lane Keeping Assist), code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot), code 463 (Head-up display) and code 501 (360° camera))

Rain and light sensor LIN

The wiper motor receives signals via the rain/light sensor LIN.

Roof LIN (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019)

The following components are actuated over the roof LIN:

• Inside rearview mirror (A67) (with CODE 232 (Garage door opener) or CODE 249 (Automatically dimming mirror))
• Overhead control panel control unit

Interior CAN

The signals are sent by the front SAM control unit over the interior CAN.

The functions that use these signals are described in the individual function descriptions (see the appropriate block diagram or function schematic).

Switching of relays

The following relays are switched by the front SAM control unit:

• Quiescent current shutoff relay (F32/4k2) (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019)
• Battery disconnect switch relay (K57/4) (model 205 as of 01.06.2018, model 253 (except for model 253.99) as of 01.06.2019, model 253.99)
• Decoupling relay (F32/3k1) (model 205 up to 31.05.2018 with code ME04 (Mild-hybrid drive) or code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) or code ME06 (Hybrid drive 60 KW variant (including plugin)); model 253 up to 31.05.2019 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)))
• Circuit relay 15R (K40/6kF) (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019)
• Engine compartment circuit 15 relay (K40/8kG)
• Horns relay (K40/8kL) (model 205 up to 31.05.2018, model 253 (except for model 253.99) up to 31.05.2019)
• ECO start/stop function additional battery relay (K114) (model 205 with code ME04 (Mild-hybrid drive) or code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) or code ME06 (Hybrid drive 60 KW variant (including plugin)); model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)))
• ECO start/stop function diode (V19) (model 205 as of 01.06.2018 with code ME04 (Mild-hybrid drive) or code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) or code ME06 (Hybrid drive 60 KW variant (including plugin)); model 253 as of 01.06.2019 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)))

	Wiring diagram for front signal acquisition and actuation module (SAM) control unit	Model 253 (except 253.99) as of model year 2020 Model 253.99	PE54.21-P-2114-97FCA
		Model 205 as of model year 2019	PE54.21-P-2114-97FBC
		Model 205 up to model year 2019 Sheet 1 Model 253 (except 253.99) up to model year 2020 Sheet 1	PE54.21-P-2114-97FBA
		Model 205 up to model year 2019 Sheet 2 Model 253 (except 253.99) up to model year 2020 Sheet 2	PE54.21-P-2114-97FBB
