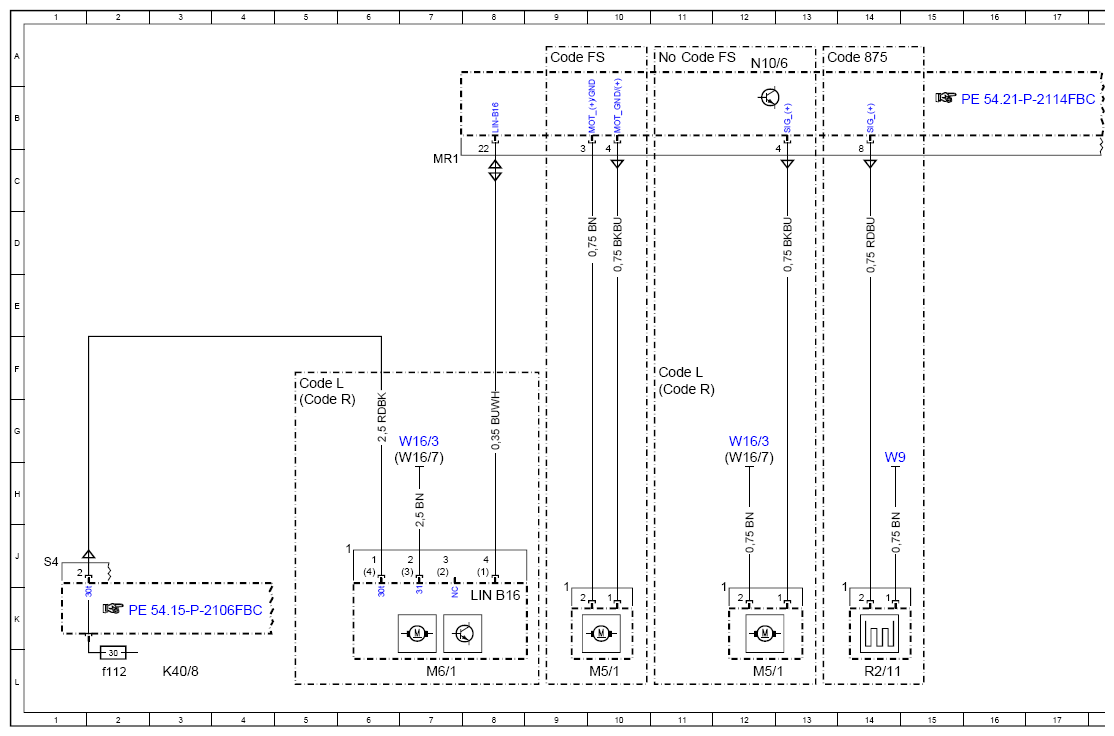

Wiring Diagram For Windshield Wiper System - PE82.30-P-2003-97FBA
Model 205 as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 875 | Heated windshield washer system | 13A |
| Code FS | STATION WAGON | 9A |
| Code FS | STATION WAGON | 11A |
| Code FS | STATION WAGON | 18A |
| Code L | LEFT-HAND DRIVE | 11F |
| Code L | LEFT-HAND DRIVE | 5F |
| Code R | RIGHT-HAND DRIVE | 5G |
| Code R | RIGHT-HAND DRIVE | 11F |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f112 | Fuse 112 | 2L |
| LIN B16 | Rain and light sensor LIN | 8K |
| M5/1 | Windshield washer system pump | 12L |
| M5/1 | Windshield washer system pump | 10L |
| M6/1 | Wiper motor | 7L |
| M6/4 | Tailgate wiper motor | 19L |
| N10/6 | Front SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 21A |
| R2/11 | Spray nozzle hose heater | 14L |
| W16/3 | Left major assembly compartment ground point | 12G |
| W16/3 | Left major assembly compartment ground point | 7G |
| W16/7 | Right major assembly compartment electronics ground point | 12H |
| W16/7 | Right major assembly compartment electronics ground point | 7H |
| W7 | Right wheel house trunk ground point | 19H |
| W9 | Left front ground point (at lamp unit) | 14H |
