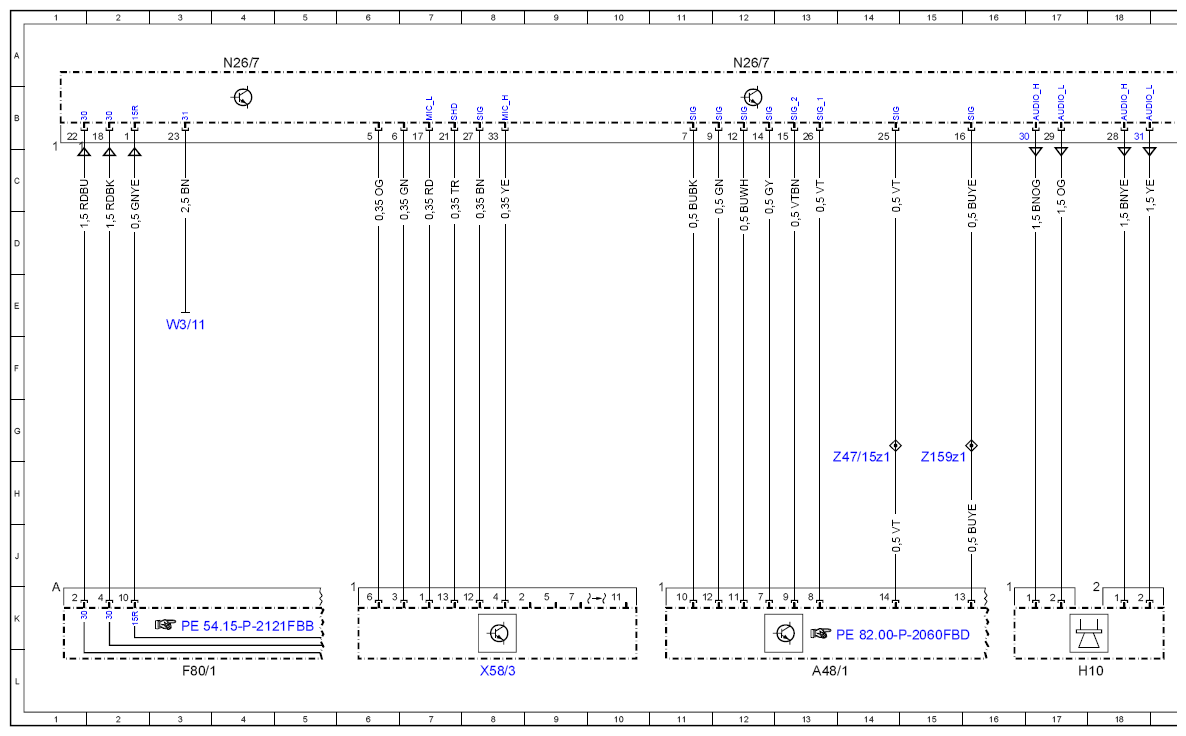

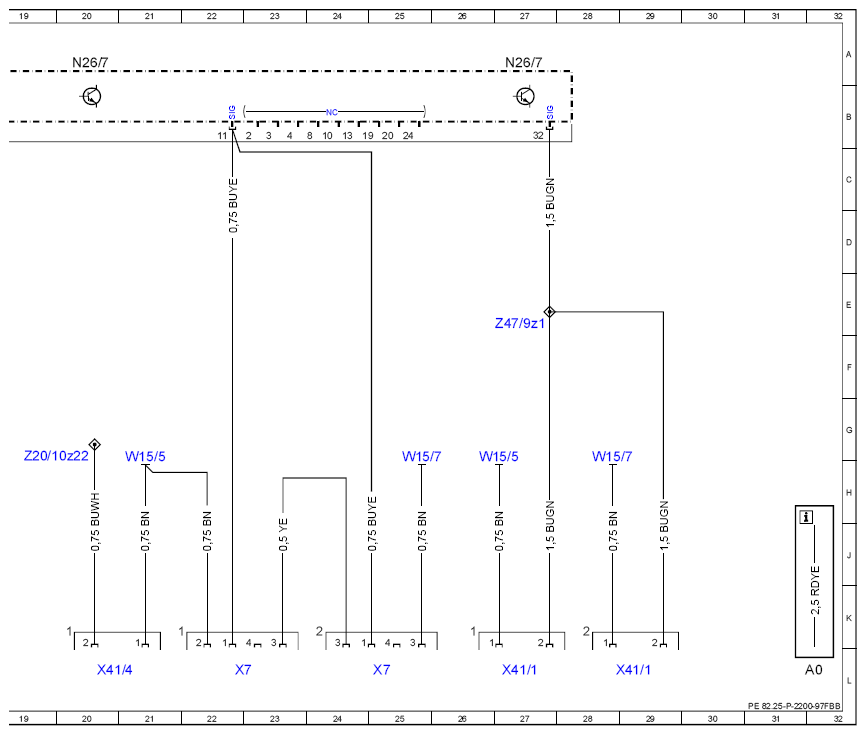

Special Signal System Wiring Diagram - PE82.25-P-2200-97FBB
Model 205 as of model year 2019 with code 970 (Police emergency vehicle) with code 974 (Preparation for fire service command vehicle) with code 975 (Preparation for emergency doctor vehicle) Control unit N26/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A48/1 | Special signal system operating unit | 13L |
| F80/1 | Special-purpose vehicle fuse block 1 | 3L |
| H10 | Exterior special signal system speaker | 17L |
| N26/7 | Special signal system control unit | 4A |
| N26/7 | Special signal system control unit | 12A |
| N26/7 | Special signal system control unit | 20A |
| N26/7 | Special signal system control unit | 27A |
| W15/5 | Left front footwell ground point | 26H |
| W15/5 | Left front footwell ground point | 21H |
| W15/7 | Right front footwell ground point | 25H |
| W15/7 | Right front footwell ground point | 28H |
| W3/11 | Left rear wheel well ground point | 3E |
| X41/1 | Blue light separation point | 27L |
| X41/1 | Blue light separation point | 29L |
| X41/4 | Police beacon separation point | 20L |
| X58/3 | Microphone separation point | 8L |
| X7 | Front flashing light connecting point | 22L |
| X7 | Front flashing light connecting point | 25L |
| Z159z1 | Tone sequence active connector sleeve | 15G |
| Z20/10z22 | Wire end not stripped | 20G |
| Z47/15z1 | Emergency vehicle warning light connector sleeve | 14G |
| Z47/9z1 | Blue priority vehicle warning light, separation point connector sleeve | 27E |
