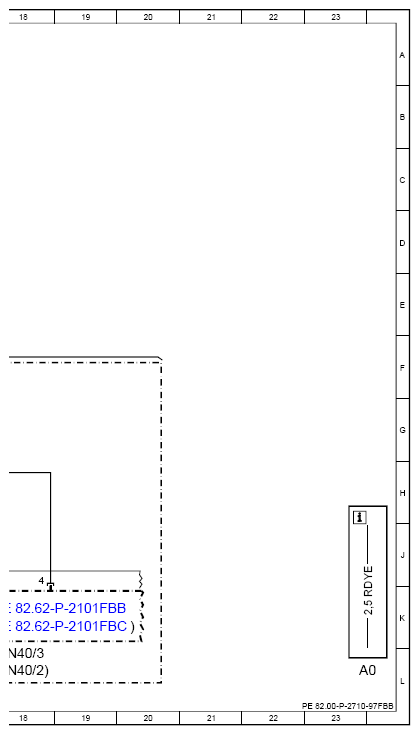

Wiring Diagram Of MOST Bus - PE82.00-P-2710-97FBB
Model 205 as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |

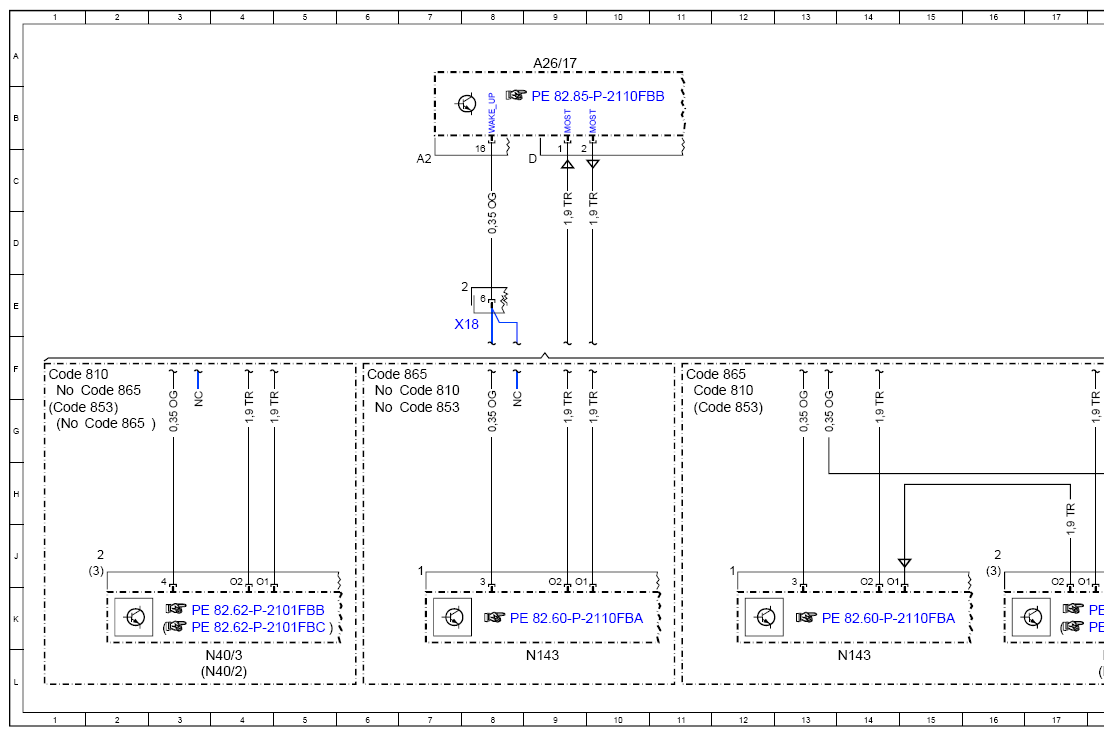

| A26/17 | Head unit | 9A |
| Code 810 | Sound System | 1F |
| Code 810 | Sound System | 7F |
| Code 810 | Sound System | 11F |
| Code 853 | Midline Sound System | 1G |
| Code 853 | Midline Sound System | 7G |
| Code 853 | Midline Sound System | 11G |
| Code 865 | TV Tuner | 11F |
| Code 865 | TV Tuner | 6F |
| Code 865 | TV Tuner | 1F |
| Code 865 | TV Tuner | 1G |
| N143 | TV Tuner control unit | 9L |
| N143 | TV Tuner control unit | 14L |
| N40/2 | Sound System midline amplifier control unit | 4L |
| N40/2 | Sound System midline amplifier control unit | 18L |
| N40/3 | Sound System amplifier control unit | 4L |
| N40/3 | Sound System amplifier control unit | 18L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 8E |
