Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBN
Model 205 as of model year 2019
with Code 640 (High-Performance LED)
with Code 641 (Dynamic LED Headlamps, Left-Hand Traffic)
with Code 642 (LED Intelligent Light System)
except Code 631 (Static LED Headlamps, Left-Hand Traffic)
except Code 632 (Static LED Headlamps, Right-Hand Traffic)
Headlamps E2
| Code: | Designation: | Position: |
|---|---|---|

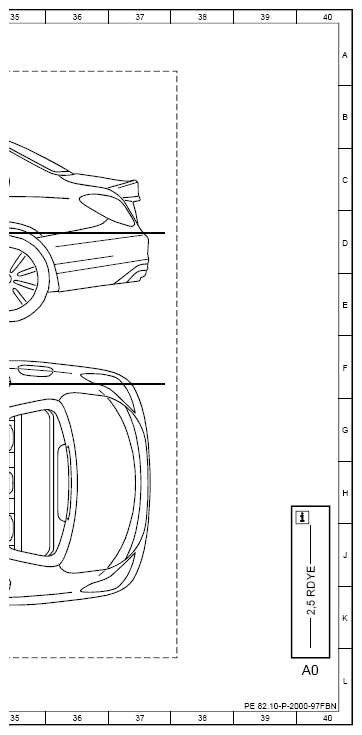

| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 17K |
| Code L | LEFT-HAND DRIVE | 15D |
| Code R | RIGHT-HAND DRIVE | 18D |

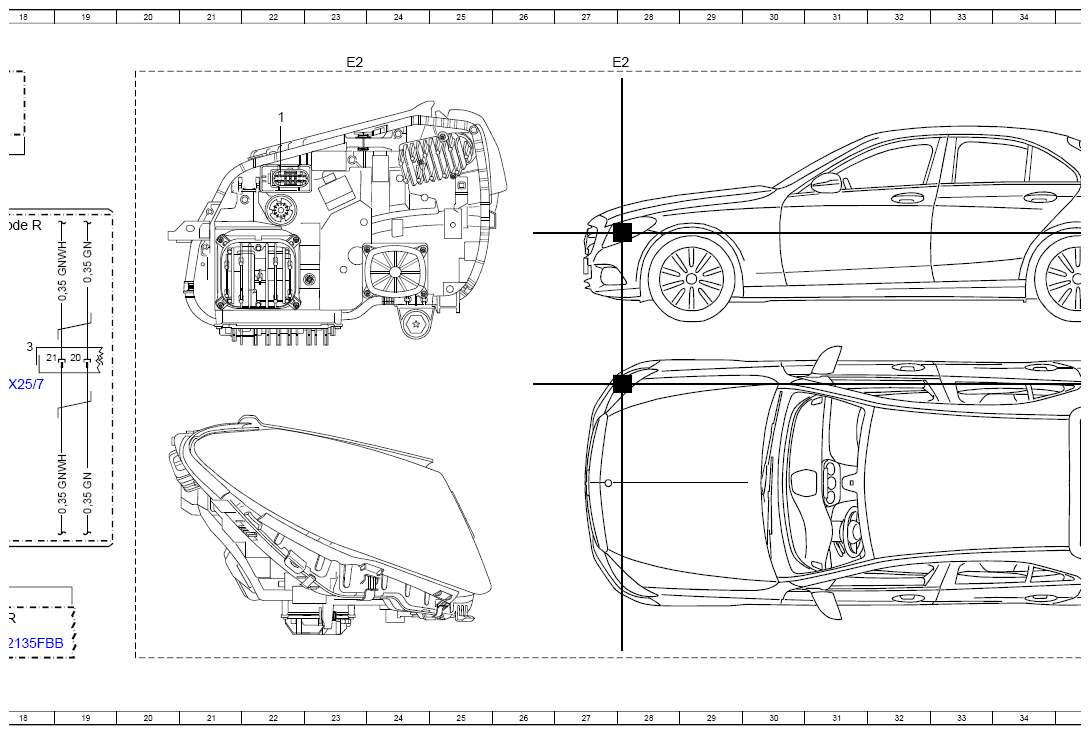

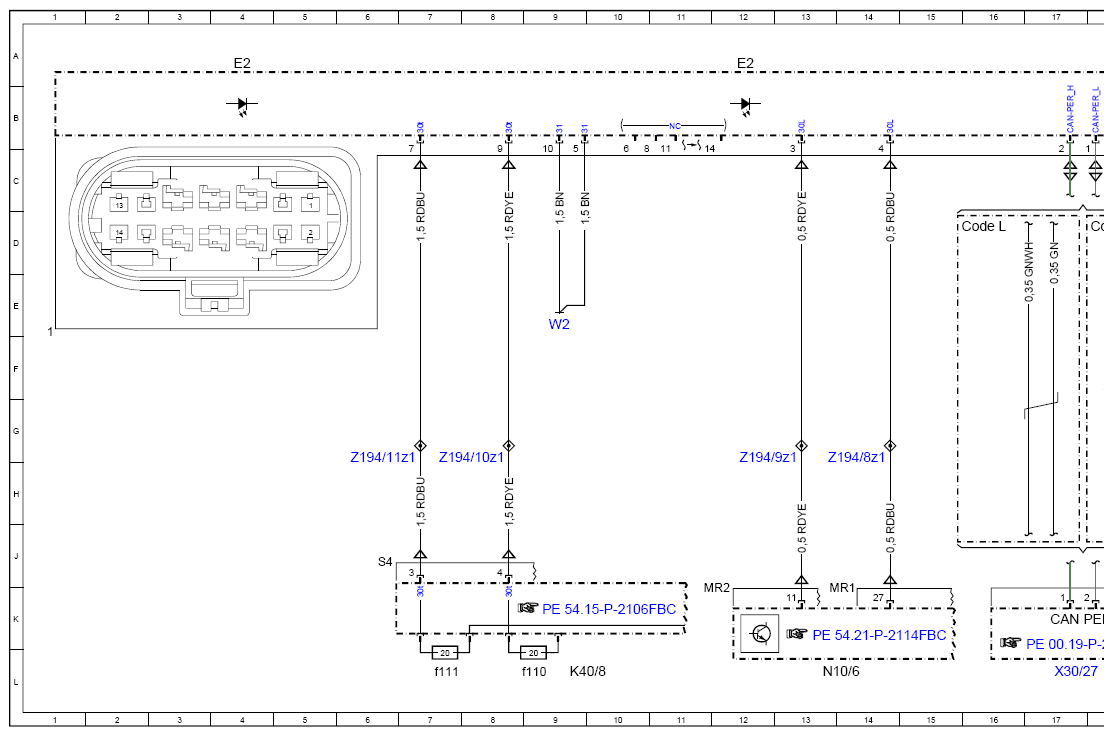

| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 23A |
| E2 | Right front lamp unit | 27A |
| K40/8 | Engine fuse and relay module | 9L |
| K40/8f110 | Fuse 110 | 9L |
| K40/8f111 | Fuse 111 | 7L |
| N10/6 | Front SAM control unit | 13L |
| W2 | Right front ground point (at lamp unit) | 9E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 18F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 17L |
| Z194/10z1 | Terminal 30_A connector sleeve, front lamp unit | 8G |
| Z194/11z1 | Terminal 30_B connector sleeve, front lamp unit | 6G |
| Z194/8z1 | Circuit 30L connector sleeve | 14G |
| Z194/9z1 | Circuit 30L connector sleeve | 12G |
