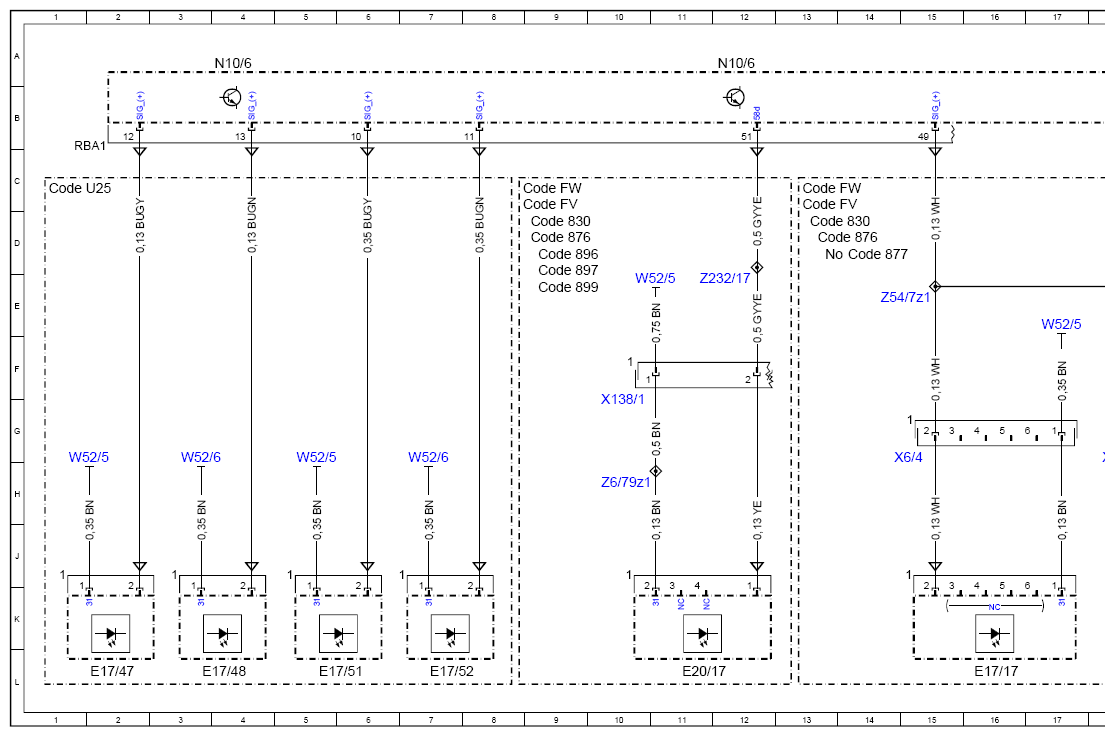

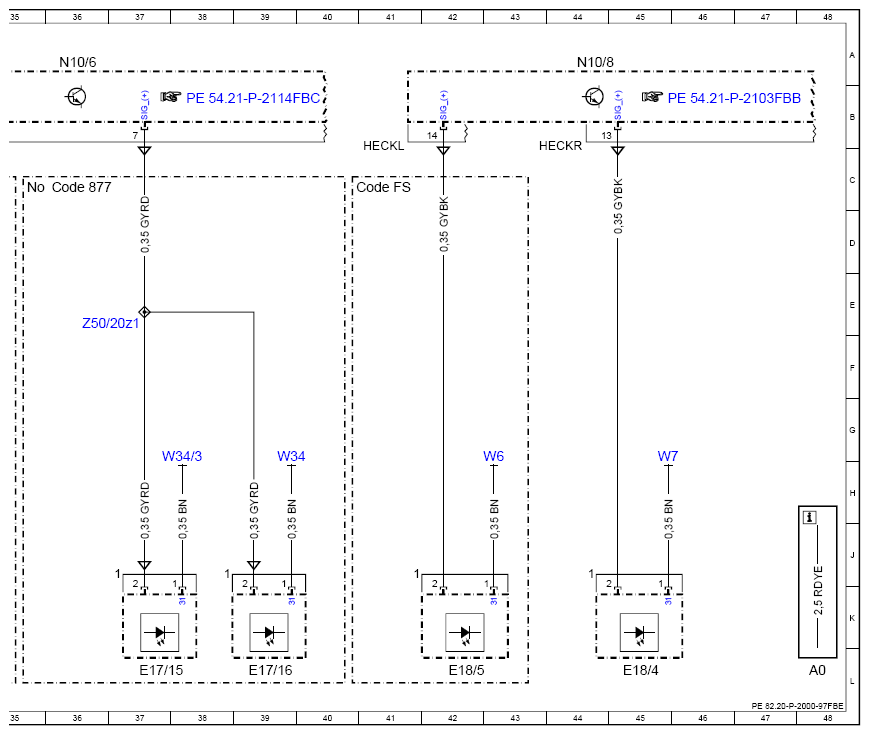

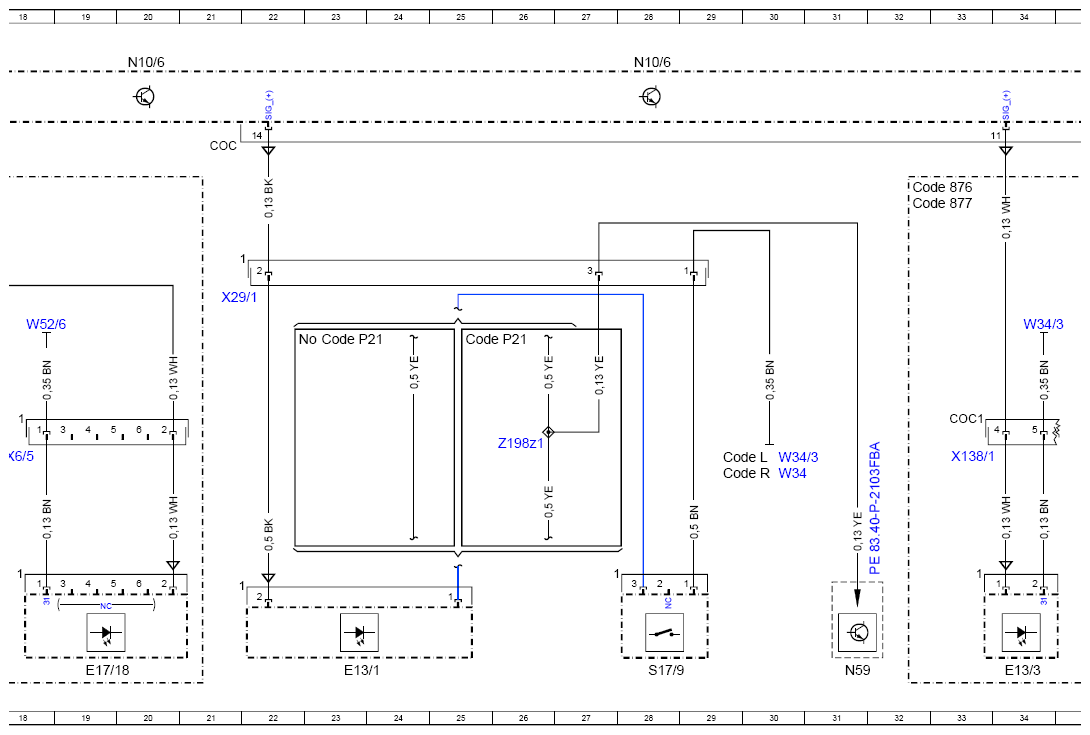

Wiring Diagram Interior Illumination - PE82.20-P-2000-97FBE
Model 205 as of model year 2019 Symbol and Ambiance Illumination
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code 830 | Additional parts for China vehicles | 9D |
| Code 830 | Additional parts for China vehicles | 13D |
| Code 876 | Interior lights package | 9D |
| Code 876 | Interior lights package | 13D |
| Code 876 | Interior lights package | 32C |
| Code 877 | Ambiance Illumination | 14D |
| Code 877 | Ambiance Illumination | 32C |
| Code 877 | Ambiance Illumination | 36C |
| Code 896 | Vehicle access and drive authorization via mobile phone | 9D |
| Code 897 | Wireless mobile phone charging | 9E |
| Code 899 | Multifunction telephony | 9E |
| Code FS | STATION WAGON | 40C |
| Code FV | LONG SEDAN | 13C |
| Code FV | LONG SEDAN | 8C |
| Code FW | SEDAN | 8C |
| Code FW | SEDAN | 13C |
| Code L | LEFT-HAND DRIVE | 29H |
| Code P21 | AIR-BALANCE package | 25F |
| Code P21 | AIR-BALANCE package | 23F |
| Code R | RIGHT-HAND DRIVE | 29H |
| Code U25 | illuminated door sills | 1C |
| E13/1 | Glove box lamp | 23L |
| E13/3 | Stowage compartment illumination | 34L |
| E17/15 | Right front footwell lamp | 37L |
| E17/16 | Left front footwell lamp | 39L |
| E17/17 | Left rear footwell lamp | 16L |
| E17/18 | Right rear footwell lamp | 19L |
| E17/47 | Left front illuminated door sill molding | 2L |
| E17/48 | Right front illuminated door sill molding | 4L |
| E17/51 | Left rear illuminated door sill molding | 5L |
| E17/52 | Right rear illuminated door sill molding | 7L |
| E18/4 | Right luggage compartment lamp | 45L |
| E18/5 | Left luggage compartment lamp | 42L |
| E20/17 | Center console cup holder illumination | 11L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 28A |
| N10/6 | Front SAM control unit | 36A |
| N10/8 | Rear SAM Control Unit | 44A |
| N59 | Perfume atomizer generator | 31L |
| S17/9 | Glove box lamp switch | 28L |
| W34 | Left footwell ground point | 30H |
| W34 | Left footwell ground point | 39H |
| W34/3 | Right footwell ground point | 30H |
| W34/3 | Right footwell ground point | 38H |
| W34/3 | Right footwell ground point | 34E |
| W52/5 | Left center longitudinal member ground point | 1H |
| W52/5 | Left center longitudinal member ground point | 5H |
| W52/5 | Left center longitudinal member ground point | 17E |
| W52/5 | Left center longitudinal member ground point | 10E |
| W52/6 | Right center longitudinal member ground point | 3H |
| W52/6 | Right center longitudinal member ground point | 7H |
| W52/6 | Right center longitudinal member ground point | 18E |
| W6 | Left wheel arch trunk ground point | 43H |
| W7 | Right wheel house trunk ground point | 45H |
| X138/1 | Front center console electrical connector | 10G |
| X138/1 | Front center console electrical connector | 33H |
| X29/1 | Glove compartment electrical connector | 21E |
| X6/4 | Driver footwell lamp electrical connector | 15H |
| X6/5 | Front passenger footwell lamp electrical connector | 18H |
| Z198z1 | Signal line connector sleeve (varying potential) | 26G |
| Z232/17 | Ambiance Illumination connector sleeve | 12E |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 37E |
| Z54/7z1 | Footwell illumination connector sleeve | 15E |
| Z6/79z1 | Circuit 31 connector sleeve | 10H |
