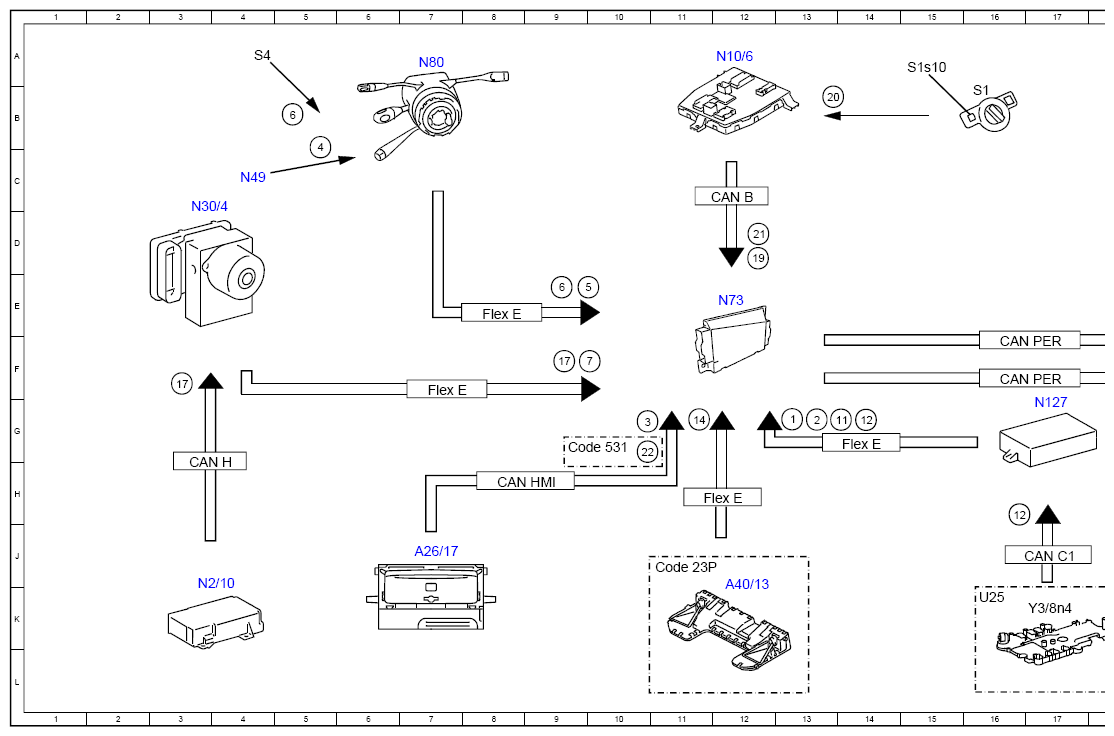

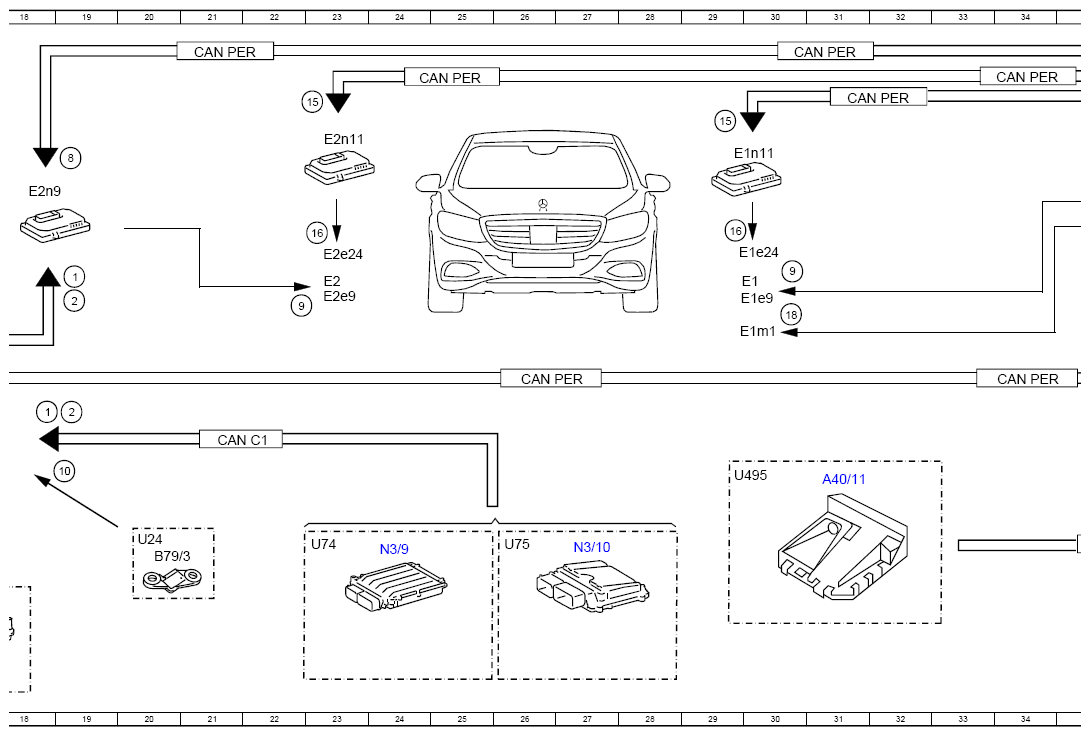

Function Schematic For Intelligent Light System - PE82.10-P-2067-97FBB
Model 205 as of model year 2019
with Code 640 (High-Performance LED)
with Code 641 (Dynamic LED Headlamps, Left-Hand Traffic)
with Code 642 (Dynamic LED Headlamps, Right-Hand Traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 19E |
| 1 | Engine running, signal | 36E |
| 1 | Engine running, signal | 13G |
| 1 | Engine running, signal | 18G |
| 10 | Manual transmission main shifter shaft position sensor, status | 19H |
| 11 | Reverse gear engaged, signal | 13G |
| 12 | Gear range, status | 16H |
| 12 | Gear range, status | 14G |
| 13 | Reverse gear, status | 36E |
| 14 | Ambient information, data | 38D |
| 14 | Ambient information, data | 36E |
| 14 | Ambient information, data | 11G |
| 15 | Intelligent Light System light distribution, request | 23B |
| 15 | Intelligent Light System light distribution, request | 29B |
| 16 | Adaptive high beam, actuation | 23D |
| 16 | Adaptive high beam, actuation | 30D |
| 17 | Speed, turn rate and lateral acceleration, signal | 3F |
| 17 | Speed, turn rate and lateral acceleration, signal | 9F |
| 17 | Speed, turn rate and lateral acceleration, signal | 36F |
| 18 | Headlamp range adjustment actuator motor, actuation | 30E |
| 19 | Wiper status, signal | 12D |
| 19 | Wiper status, signal | 36F |
| 2 | Drivetrain operational, signal | 36E |
| 2 | Drivetrain operational, signal | 13G |
| 2 | Drivetrain operational, signal | 19G |
| 2 | Drivetrain operational, signal | 19D |
| 20 | Rear fog light button, status | 13B |
| 21 | Rear fog light, request | 12D |
| 21 | Rear fog light, request | 36G |
| 22 | Map data, signal | 10G |
| 22 | Map data, signal | 36G |
| 3 | Intelligent Light System, status | 11G |
| 3 | Intelligent Light System, status | 36E |
| 4 | Steering wheel angle sensor, signal | 5C |
| 5 | Steering wheel angle, signal | 9E |
| 5 | Steering wheel angle, signal | 36F |
| 6 | Combination switch, status | 5B |
| 6 | Combination switch, status | 9E |
| 6 | Combination switch, status | 36F |
| 7 | Wheel speed, signal | 10F |
| 7 | Wheel speed, signal | 36E |
| 8 | Synchronization, signal | 19C |
| 9 | Cornering illumination, actuation | 22E |
| 9 | Cornering illumination, actuation | 30E |
| A26/17 | Head unit | 7J |
| A40/11 | Mono multifunction camera | 31H |
| A40/13 | Stereo multifunction camera | 12K |
| B79/3 | Manual transmission main shifter shaft position sensor | 20J |
| CAN B | Interior CAN | 12C |
| CAN C1 | Drive train CAN | 17J |
| CAN C1 | Drive train CAN | 21G |
| CAN H | Vehicle dynamics CAN | 3H |
| CAN HMI | User interface CAN | 8H |
| CAN PER | Peripherals CAN | 16F |
| CAN PER | Peripherals CAN | 16F |
| CAN PER | Peripherals CAN | 26F |
| CAN PER | Peripherals CAN | 34F |
| CAN PER | Peripherals CAN | 35J |
| CAN PER | Peripherals CAN | 21A |
| CAN PER | Peripherals CAN | 25A |
| CAN PER | Peripherals CAN | 31B |
| CAN PER | Peripherals CAN | 31A |
| CAN PER | Peripherals CAN | 34A |
| Code 23P | Driver assistance package | 11J |
| Code 531 | COMAND® APS | 9G |
| Code 531 | COMAND® APS | 35G |
| E1 | Left front lamp unit | 29E |
| E1e24 | Left front adaptive high beam | 29D |
| E1e9 | Left cornering illumination | 29E |
| E1m1 | Left headlamp range adjustment actuator motor | 29E |
| E1n11 | Left front LED matrix lamp unit control unit | 29C |
| E1n9 | Left headlamp control unit | 36C |
| E2 | Right front lamp unit | 23E |
| E2e24 | Right front adaptive high beam | 23D |
| E2e9 | Right cornering illumination | 23E |
| E2n11 | Right front LED matrix lamp unit control unit | 23B |
| E2n9 | Right headlamp control unit | 18C |
| Flex E | Chassis FlexRay | 7F |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 11H |
| Flex E | Chassis FlexRay | 8E |
| N10/6 | Front SAM control unit | 12A |
| N127 | Drivetrain control unit | 17G |
| N2/10 | Supplemental restraint system control unit | 3K |
| N3/10 | ME-SFI [ME] control unit | 27J |
| N3/9 | CDI control unit | 24J |
| N30/4 | Electronic Stability Program control unit | 3C |
| N49 | Steering wheel angle sensor | 4C |
| N73 | Electronic ignition switch control unit | 12E |
| N80 | Steering column module control unit | 7A |
| S1 | Exterior lights switch | 16B |
| S1s10 | Rear fog light button | 15A |
| S4 | Combination switch | 4A |
| U24 | Valid for manual transmission | 20J |
| U25 | Valid for automatic transmission | 16K |
| U495 | Not valid for driving assistance package | 29H |
| U74 | Valid for diesel engines | 23J |
| U75 | Valid for gasoline engines | 26J |
| Y3/8n4 | Fully integrated transmission control control unit | 17K |
