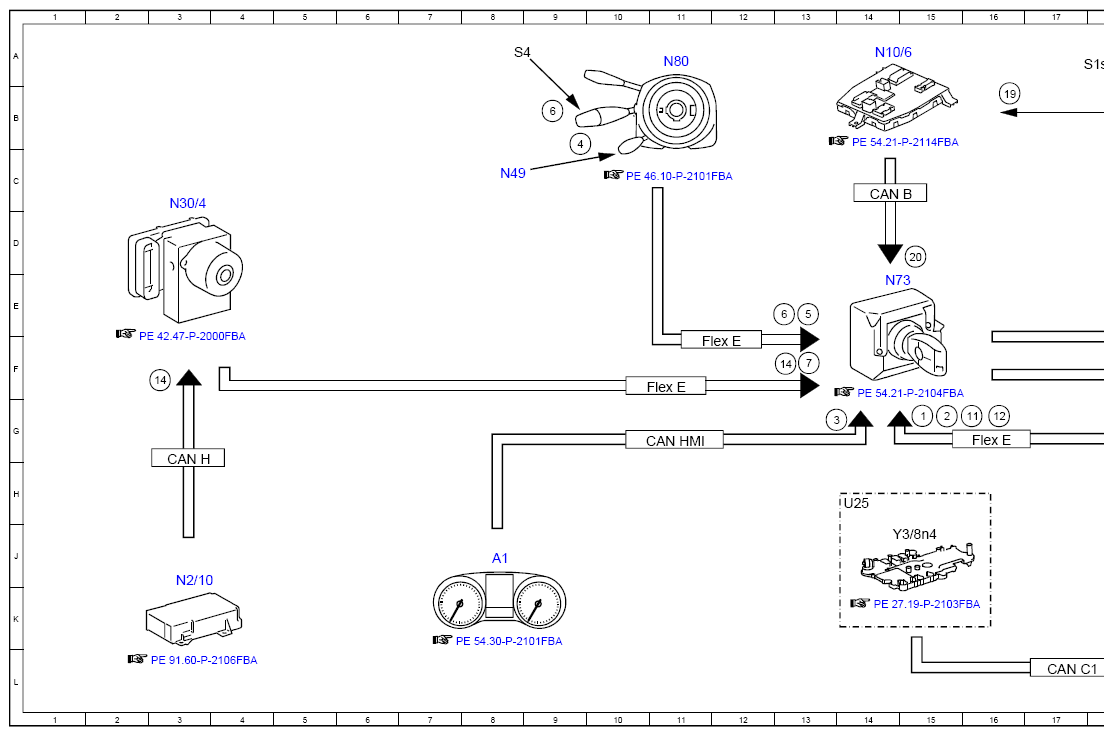

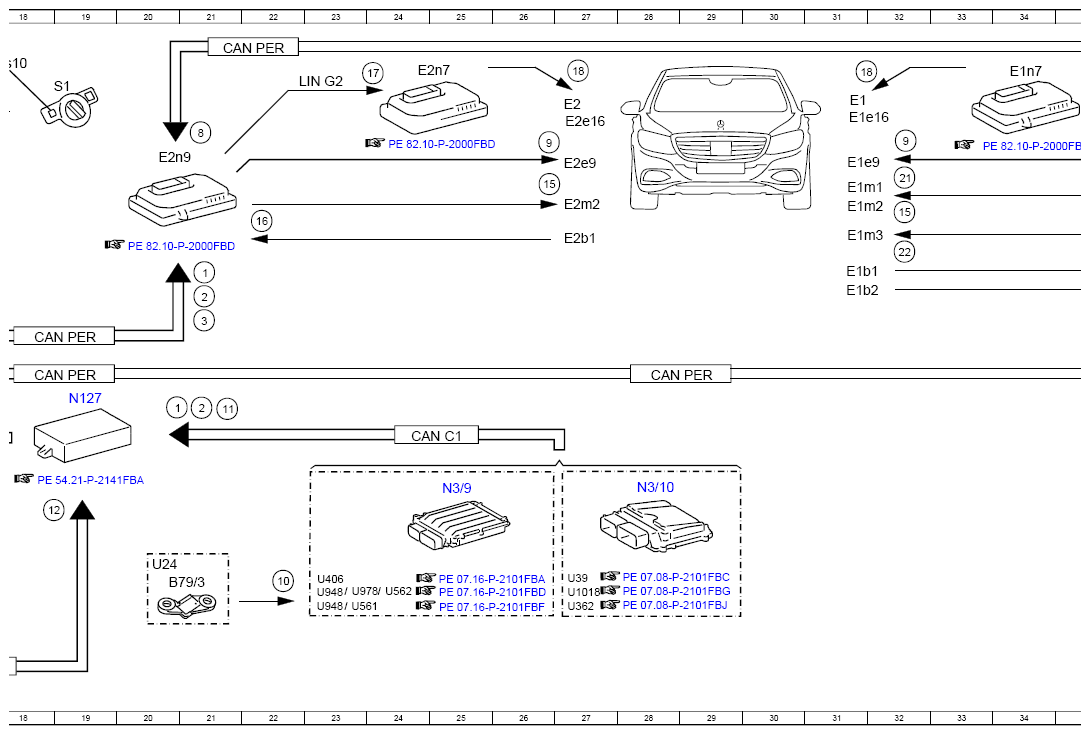

Function Schematic For Intelligent Light System - PE82.10-P-2067-97FBA
Model 205 up to model year 2019
with Code 640 (High-Performance LED)
with Code 641 (Dynamic LED Headlamps, Left-Hand Traffic)
with Code 642 (Dynamic LED Headlamps, Right-Hand Traffic)
Model 253 (except 253.99)
with Code 640 (High-Performance LED)
with Code 641 (Dynamic LED Headlamps, Left-Hand Traffic)
with Code 642 (Dynamic LED Headlamps, Right-Hand Traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 21E |
| 1 | Engine running, signal | 39D |
| 1 | Engine running, signal | 15G |
| 1 | Engine running, signal | 20G |
| 10 | Manual transmission main shifter shaft position sensor, status | 22J |
| 11 | Reverse gear engaged, signal | 15G |
| 11 | Reverse gear engaged, signal | 21G |
| 12 | Gear range, status | 18H |
| 12 | Gear range, status | 16G |
| 13 | Reverse gear, status | 39E |
| 14 | Turn rate, lateral and longitudinal acceleration sensor, signal | 13F |
| 14 | Turn rate, lateral and longitudinal acceleration sensor, signal | 3F |
| 14 | Turn rate, lateral and longitudinal acceleration sensor, signal | 39E |
| 15 | Active curve illumination actuator motor, actuation | 26C |
| 15 | Active curve illumination actuator motor, actuation | 32D |
| 16 | Active curve lights position sensor, signal | - |
| 16 | Active curve lights position sensor, signal | - |
| 17 | Increase light output, request | 24A |
| 17 | Increase light output, request | 35A |
| 18 | Low beams, actuation | 27A |
| 18 | Low beams, actuation | 31A |
| 19 | Rear fog light button, status | 16B |
| 2 | Drivetrain operational, signal | 39E |
| 2 | Drivetrain operational, signal | 15G |
| 2 | Drivetrain operational, signal | 21G |
| 2 | Drivetrain operational, signal | 21E |
| 20 | Rear fog light, request | 39F |
| 20 | Rear fog light, request | 15D |
| 21 | Headlamp range adjustment actuator motor, actuation | 32C |
| 22 | Light distribution actuator motor, actuation | 32D |
| 23 | Light distribution position sensor, signal | - |
| 3 | Intelligent Light System, status | 21E |
| 3 | Intelligent Light System, status | 13G |
| 3 | Intelligent Light System, status | 39E |
| 4 | Steering wheel angle sensor, signal | 9B |
| 5 | Steering wheel angle, signal | 39F |
| 5 | Steering wheel angle, signal | 13E |
| 6 | Combination switch, status | 9B |
| 6 | Combination switch, status | 39F |
| 6 | Combination switch, status | 13E |
| 7 | Wheel speed, signal | 39D |
| 7 | Wheel speed, signal | 13F |
| 8 | Synchronization, signal | 21B |
| 9 | Cornering illumination, actuation | 32B |
| 9 | Cornering illumination, actuation | 26B |
| A1 | Instrument cluster | 8J |
| B79/3 | Manual transmission main shifter shaft position sensor | 20K |
| CAN B | Interior CAN | 14C |
| CAN C1 | Drive train CAN | 17L |
| CAN C1 | Drive train CAN | 24G |
| CAN H | Vehicle dynamics CAN | 3H |
| CAN HMI | User interface CAN | 11G |
| CAN PER | Peripherals CAN | 18F |
| CAN PER | Peripherals CAN | 18F |
| CAN PER | Peripherals CAN | 28F |
| CAN PER | Peripherals CAN | 36F |
| CAN PER | Peripherals CAN | 21A |
| CAN PER | Peripherals CAN | 36A |
| E1 | Left front lamp unit | 31B |
| E1b1 | Left active curve illumination position sensor | 31E |
| E1b2 | Left light distribution position sensor | 31E |
| E1e16 | Left low beam (long range) | 31B |
| E1e9 | Left cornering illumination | 31C |
| E1m1 | Left headlamp range adjustment actuator motor | 31C |
| E1m2 | Left active curve illumination actuator motor | 31D |
| E1m3 | Left light distribution actuator motor | 31D |
| E1n7 | Actuation module for left front exterior lights LED | 34A |
| E1n9 | Left headlamp control unit | 38C |
| E2 | Right front lamp unit | 27B |
| E2b1 | Right active curve illumination position sensor | 27D |
| E2e16 | Right low beam (long range) | 27B |
| E2e9 | Right cornering illumination | 27C |
| E2m2 | Right active curve illumination actuator motor | 27C |
| E2n7 | Actuation module for right front exterior lights LED | 24A |
| E2n9 | Right headlamp control unit | 20C |
| Flex E | Chassis FlexRay | 11F |
| Flex E | Chassis FlexRay | 16G |
| Flex E | Chassis FlexRay | 11F |
| LIN G1 | Left headlamp LIN | 36B |
| LIN G2 | Right headlamp LIN | 23B |
| N10/6 | Front SAM control unit | 14A |
| N127 | Drivetrain control unit | 19G |
| N2/10 | Supplemental restraint system control unit | 3J |
| N3/10 | ME-SFI [ME] control unit | 28H |
| N3/9 | CDI control unit | 25H |
| N30/4 | Electronic Stability Program control unit | 3C |
| N49 | Steering wheel angle sensor | 8C |
| N73 | Electronic ignition switch control unit | 14E |
| N80 | Steering column module control unit | 11A |
| S1 | Exterior lights switch | 18B |
| S1s10 | Rear fog light button | 17A |
| S4 | Combination switch | 8A |
| U1018 | Valid for gasoline engine 276 | 27K |
| U24 | Valid for manual transmission | 20J |
| U25 | Valid for automatic transmission | 14H |
| U362 | Valid for gasoline engine 274 | 27K |
| U39 | Valid for gasoline engine 177 | 27J |
| U406 | Valid for diesel engine 626 | 23J |
| U561 | Valid for Delphi system | 23K |
| U562 | Valid for Bosch system | 24K |
| U948 | Valid for diesel engine 651 | 23K |
| U948 | Valid for diesel engine 651 | 23K |
| U978 | Valid for hybrid drive | 23K |
| Y3/8n4 | Fully integrated transmission control control unit | 15J |
