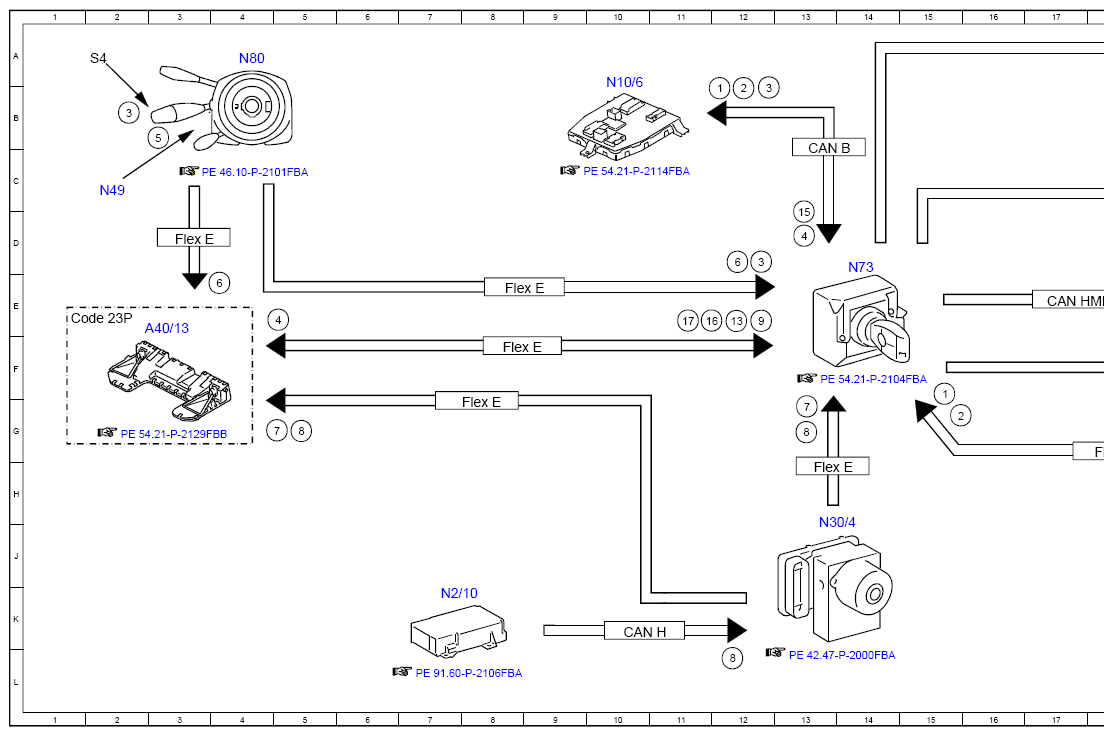

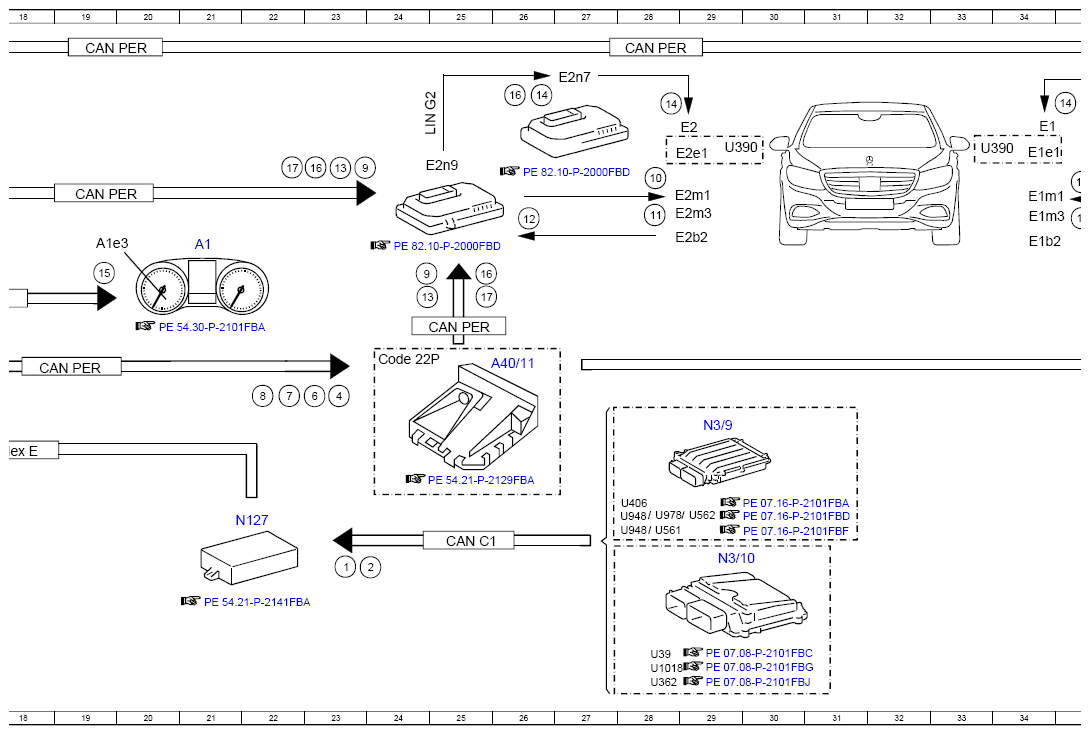

Function Schematic For Adaptive High Beam Assist - PE82.10-P-2066-97FBA
Model 205 up to model year 2019
with Code 640 (High-Performance LED)
with Code 641 (Dynamic LED Headlamps, Left-Hand Traffic)
with Code 642 (Dynamic LED Headlamps, Right-Hand Traffic)
Model 253
with Code 640 (High-Performance LED)
with Code 641 (Dynamic LED Headlamps, Left-Hand Traffic)
with Code 642 (Dynamic LED Headlamps, Right-Hand Traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 15F |
| 1 | Engine running, signal | 23J |
| 1 | Engine running, signal | 12B |
| 10 | Headlamp range adjustment actuator motor, actuation | 28C |
| 10 | Headlamp range adjustment actuator motor, actuation | 35C |
| 11 | Light distribution actuator motor, actuation | 28D |
| 11 | Light distribution actuator motor, actuation | 35D |
| 12 | Light distribution position sensor, signal | 26D |
| 12 | Light distribution position sensor, signal | - |
| 13 | High beams, request | 12E |
| 13 | High beams, request | 23C |
| 13 | High beams, request | 24E |
| 13 | High beams, request | 40B |
| 13 | High beams, request | 38E |
| 14 | High beams, actuation | 28B |
| 14 | High beams, actuation | 35B |
| 14 | High beams, actuation | 26B |
| 14 | High beams, actuation | 37B |
| 15 | High beams, status | 19E |
| 15 | High beams, status | 13D |
| 16 | Increase light output, request | 11E |
| 16 | Increase light output, request | 23C |
| 16 | Increase light output, request | 25E |
| 16 | Increase light output, request | 26B |
| 16 | Increase light output, request | 38B |
| 16 | Increase light output, request | 40B |
| 16 | Increase light output, request | 39E |
| 17 | Rotation angle adjustment, request | 11E |
| 17 | Rotation angle adjustment, request | 25E |
| 17 | Rotation angle adjustment, request | 39E |
| 17 | Rotation angle adjustment, request | 39A |
| 17 | Rotation angle adjustment, request | 22C |
| 2 | Drivetrain operational, signal | 15G |
| 2 | Drivetrain operational, signal | 24J |
| 2 | Drivetrain operational, signal | 12B |
| 3 | Combination switch, status | 2B |
| 3 | Combination switch, status | 12D |
| 3 | Combination switch, status | 12B |
| 4 | Automatic high beams, enable | 5E |
| 4 | Automatic high beams, enable | 13D |
| 4 | Automatic high beams, enable | 23G |
| 5 | Steering wheel angle sensor, signal | 3B |
| 6 | Steering wheel angle, signal | 4E |
| 6 | Steering wheel angle, signal | 12D |
| 6 | Steering wheel angle, signal | 12D |
| 7 | Wheel speed, signal | 5G |
| 7 | Wheel speed, signal | 13G |
| 7 | Wheel speed, signal | 22G |
| 8 | Turn rate, lateral and longitudinal acceleration sensor, signal | 5G |
| 8 | Turn rate, lateral and longitudinal acceleration sensor, signal | 13G |
| 8 | Turn rate, lateral and longitudinal acceleration sensor, signal | 22G |
| 8 | Turn rate, lateral and longitudinal acceleration sensor, signal | 12L |
| 9 | Optical headlamp range adjustment, request | 12E |
| 9 | Optical headlamp range adjustment, request | 24D |
| 9 | Optical headlamp range adjustment, request | 39B |
| 9 | Optical headlamp range adjustment, request | 38E |
| 9 | Optical headlamp range adjustment, request | 23C |
| A1 | Instrument cluster | 21D |
| A1e3 | High beam indicator lamp | 19D |
| A40/11 | Mono multifunction camera | 25F |
| A40/13 | Stereo multifunction camera | 2E |
| CAN B | Interior CAN | 13C |
| CAN C1 | Drive train CAN | 25J |
| CAN H | Vehicle dynamics CAN | 10K |
| CAN MMI | User interface CAN | 17E |
| CAN PER | Peripherals CAN | 36A |
| CAN PER | Peripherals CAN | 36F |
| CAN PER | Peripherals CAN | 28A |
| CAN PER | Peripherals CAN | 25E |
| CAN PER | Peripherals CAN | 19A |
| CAN PER | Peripherals CAN | 19C |
| CAN PER | Peripherals CAN | 19F |
| Code 22P | Track package | 24F |
| Code 23P | Driver assistance package | 1E |
| E1 | Left front lamp unit | 34B |
| E1b2 | Left light distribution position sensor | 34D |
| E1e1 | Left high beam | 34C |
| E1m1 | Left headlamp range adjustment actuator motor | 34C |
| E1m3 | Left light distribution actuator motor | 34D |
| E1n7 | Actuation module for left front exterior lights LED | 36B |
| E1n9 | Left headlamp control unit | 39C |
| E2 | Right front lamp unit | 29B |
| E2b2 | Right light distribution position sensor | 28D |
| E2e1 | Right high beam | 28C |
| E2m1 | Right headlamp range adjustment actuator motor | 28C |
| E2m3 | Right light distribution actuator motor | 28D |
| E2n7 | Actuation module for right front exterior lights LED | 27A |
| E2n9 | Right headlamp control unit | 24C |
| Flex E | Chassis FlexRay | 8G |
| Flex E | Chassis FlexRay | 3D |
| Flex E | Chassis FlexRay | 8F |
| Flex E | Chassis FlexRay | 8E |
| Flex E | Chassis FlexRay | 18G |
| Flex E | Chassis FlexRay | 13H |
| LIN G1 | Left headlamp LIN | 39B |
| LIN G2 | Right headlamp LIN | 24B |
| N10/6 | Front SAM control unit | 10B |
| N127 | Drivetrain control unit | 21J |
| N2/10 | Supplemental restraint system control unit | 7K |
| N3/10 | ME-SFI [ME] control unit | 29J |
| N3/9 | CDI control unit | 29G |
| N30/4 | Electronic Stability Program control unit | 13J |
| N49 | Steering wheel angle sensor | 2C |
| N73 | Electronic ignition switch control unit | 14D |
| N80 | Steering column module control unit | 4A |
| S4 | Combination switch | 2A |
| U1018 | Valid for gasoline engine 276 | 28L |
| U362 | Valid for gasoline engine 274 | 28L |
| U39 | Valid for gasoline engine 177 | 28L |
| U390 | Valid for Model 205 | 29C |
| U390 | Valid for Model 205 | 33C |
| U406 | Valid for diesel engine 626 | 28H |
| U561 | Valid for Delphi system | 28J |
| U562 | Valid for Bosch system | 29H |
| U948 | Valid for diesel engine 651 | 28J |
| U948 | Valid for diesel engine 651 | 28H |
| U978 | Valid for hybrid drive | 28H |
