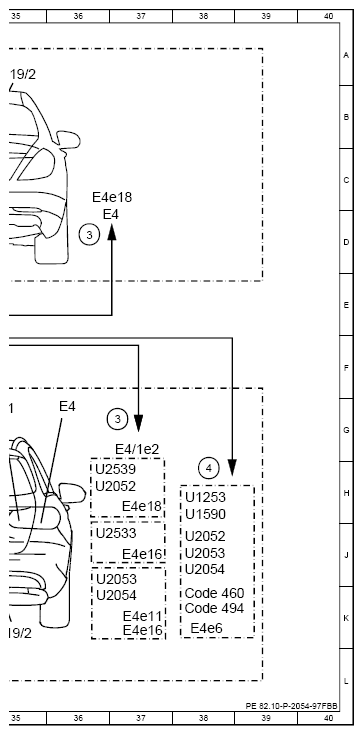

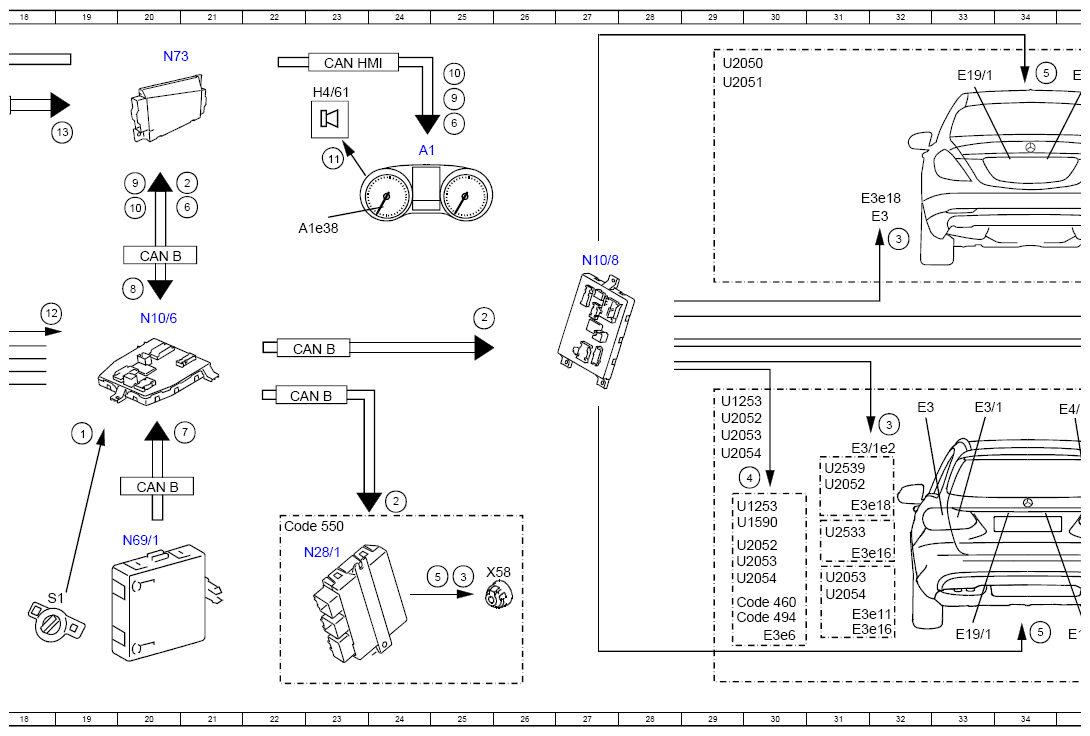

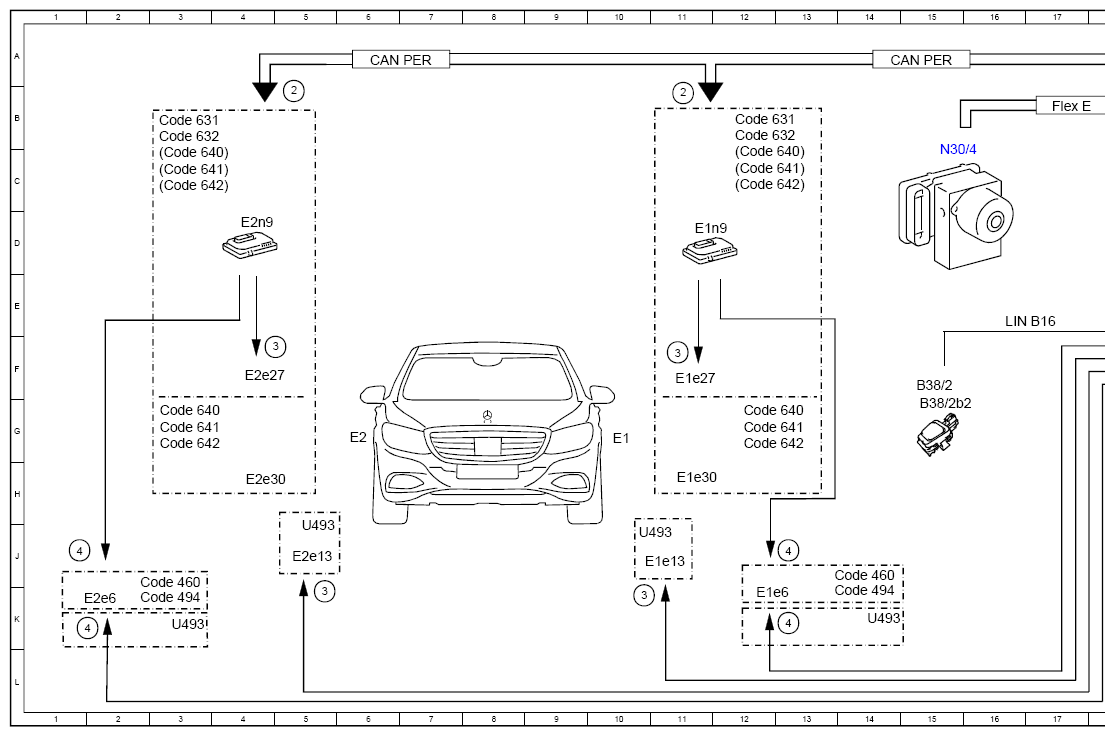

Electrical Function Schematic, Standing Light/Parking Lights Actuation - PE82.10-P-2054-97FBB
Model 205 as of model year 2019
Model 253.99
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 19G |
| 10 | Warning tone, request | 20D |
| 10 | Warning tone, request | 25A |
| 11 | Speaker, actuation | 23C |
| 12 | Low beams, request | 12E |
| 13 | Vehicle speed, signal | 19B |
| 2 | Standing and parking lights, request | 24H |
| 2 | Standing and parking lights, request | 25E |
| 2 | Standing and parking lights, request | 21C |
| 2 | Standing and parking lights, request | IIB |
| 2 | Standing and parking lights, request | 5A |
| 3 | Standing and parking lights, actuation | 10K |
| 3 | Standing and parking lights, actuation | 25J |
| 3 | Standing and parking lights, actuation | 37G |
| 3 | Standing and parking lights, actuation | 11F |
| 3 | Standing and parking lights, actuation | 32D |
| 3 | Standing and parking lights, actuation | 36D |
| 3 | Standing and parking lights, actuation | 6J |
| 3 | Standing and parking lights, actuation | 32G |
| 3 | Standing and parking lights, actuation | 5F |
| 4 | Side-marker lamp, actuation | 1K |
| 4 | Side-marker lamp, actuation | 13K |
| 4 | Side-marker lamp, actuation | 30H |
| 4 | Side-marker lamp, actuation | 38H |
| 4 | Side-marker lamp, actuation | 13J |
| 4 | Side-marker lamp, actuation | 1J |
| 5 | License plate lamp, actuation | 25J |
| 5 | License plate lamp, actuation | 34K |
| 5 | License plate lamp, actuation | 34A |
| 6 | Standing lights indicator lamp, request | 21C |
| 6 | Standing lights indicator lamp, request | 25B |
| 7 | Door rotary tumbler switch, status | 21G |
| 8 | Circuit 15, status | 20E |
| 9 | Instrument cluster message, request | 20C |
| 9 | Instrument cluster message, request | 25B |
| A1 | Instrument cluster | 24C |
| A1e38 | Standing lamps indicator lamp | 23D |
| B38/2 | Rain/light sensor with additional functions | 15F |
| B38/2b2 | Light sensor | 15G |
| CAN B | Interior CAN | 20H |
| CAN B | Interior CAN | 22G |
| CAN B | Interior CAN | 20D |
| CAN B | Interior CAN | 22F |
| CAN MMI | User interface CAN | 23A |
| CAN PER | Peripherals CAN | 6A |
| CAN PER | Peripherals CAN | 15A |
| Code 460 | Canada version | 2J |
| Code 460 | Canada version | 13J |
| Code 460 | Canada version | 29K |
| Code 460 | Canada version | 38K |
| Code 494 | USA version | 29K |
| Code 494 | USA version | 2K |
| Code 494 | USA version | 13K |
| Code 494 | USA version | 38K |
| Code 550 | Trailer hitch | 22J |
| Code 631 | Static LED headlamp, left-hand traffic | 3B |
| Code 631 | Static LED headlamp, left-hand traffic | 12B |
| Code 632 | Static LED headlamp, right-hand traffic | 12B |
| Code 632 | Static LED headlamp, right-hand traffic | 3B |
| Code 640 | High Performance LED | 3G |
| Code 640 | High Performance LED | 12G |
| Code 640 | High Performance LED | 3C |
| Code 640 | High Performance LED | 12C |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 3G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 12G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 3C |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 12C |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 3G |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 12G |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 3C |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 12C |
| E1 | Left front lamp unit | 10G |
| E19/1 | Left license plate lamp | 33K |
| E19/1 | Left license plate lamp | 33A |
| E19/2 | Right license plate lamp | 35K |
| E19/2 | Right license plate lamp | 35A |
| E1e13 | Left parking light, standing light and daytime running light | 10J |
| E1e27 | Left position light and daytime running light | 11F |
| E1e30 | Left front position light 2 | 11H |
| E1e6 | Left front side-marker lamp | 12K |
| E1n9 | Left headlamp control unit | 11D |
| E2 | Right front lamp unit | 6G |
| E2e13 | Right parking light, standing light and daytime running light | 5J |
| E2e27 | Right position light and daytime running light | 4F |
| E2e30 | Right front position light 2 | 4H |
| E2e6 | Right front side-marker lamp | IK |
| E2n9 | Right headlamp control unit | 4D |
| E3 | Left rear lamp unit | 32G |
| E3 | Left rear lamp unit | 32D |
| E3/1 | Inner left rear lamp unit | 33G |
| E3/1e2 | Left inside tail light | 31G |
| E3e11 | Outer left brake light and tail light | 31K |
| E3e16 | Outer left tail light | 31K |
| E3e16 | Outer left tail light | 31J |
| E3e18 | Left tail lamp | 31H |
| E3e18 | Left tail lamp | 31C |
| E3e6 | Left side-marker lamp | 30K |
| E4 | Right rear lamp unit | 36G |
| E4 | Right rear lamp unit | 36D |
| E4/1 | Inner right rear lamp unit | 35G |
| E4/1e2 | Right inside tail light | 37G |
| E4e11 | Outer right brake light and tail light | 37K |
| E4e16 | Outer right tail light | 37K |
| E4e16 | Outer right tail light | 37J |
| E4e18 | Right tail lamp | 37H |
| E4e18 | Right tail lamp | 36C |
| E4e6 | Right side-marker lamp | 38K |
| Flex E | Chassis FlexRay | 17B |
| H4/61 | Instrument cluster speaker | 23B |
| LIN B16 | Rain and light sensor LIN | 16E |
| N10/6 | Front SAM control unit | 20E |
| N10/8 | Rear SAM Control Unit | 27D |
| N28/1 | Trailer recognition control unit | 23J |
| N30/4 | Electronic Stability Program control unit | 15C |
| N69/1 | Left front door control unit | 20J |
| N73 | Electronic ignition switch control unit | 20A |
| S1 | Exterior lights switch | 18K |
| U1253 | Valid for Model 253 | 29G |
| U1253 | Valid for Model 253 | 29H |
| U1253 | Valid for Model 253 | 38H |
| U1590 | Valid up to model year 2020 | 29J |
| U1590 | Valid up to model year 2020 | 38H |
| U2050 | Valid for Model 205.0 | 29A |
| U2051 | Valid for Model 205.1 | 29B |
| U2052 | Valid for Model 205. 2 | 31H |
| U2052 | Valid for Model 205. 2 | 29G |
| U2052 | Valid for Model 205. 2 | 36H |
| U2052 | Valid for Model 205. 2 | 29J |
| U2052 | Valid for Model 205.2 | 38J |
| U2053 | Valid for Model 205.3 | 31J |
| U2053 | Valid for Model 205.3 | 29G |
| U2053 | Valid for Model 205.3 | 36J |
| U2053 | Valid for Model 205.3 | 29J |
| U2053 | Valid for Model 205.3 | 38J |
| U2054 | Valid for Model 205.4 | 31K |
| U2054 | Valid for Model 205.4 | 29G |
| U2054 | Valid for Model 205.4 | 36K |
| U2054 | Valid for Model 205.4 | 29J |
| U2054 | Valid for Model 205.4 | 38J |
| U2533 | Valid for Model 253.3 | 31J |
| U2533 | Valid for Model 253.3 | 36J |
| U2539 | Valid for Model 253. 9 | 31H |
| U2539 | Valid for Model 253. 9 | 36H |
| U493 | Valid for halogen lamp unit | 3K |
| U493 | Valid for halogen lamp unit | 14K |
| U493 | Valid for halogen lamp unit | 5J |
| U493 | Valid for halogen lamp unit | 10J |
| X58 | Trailer socket | 25J |
