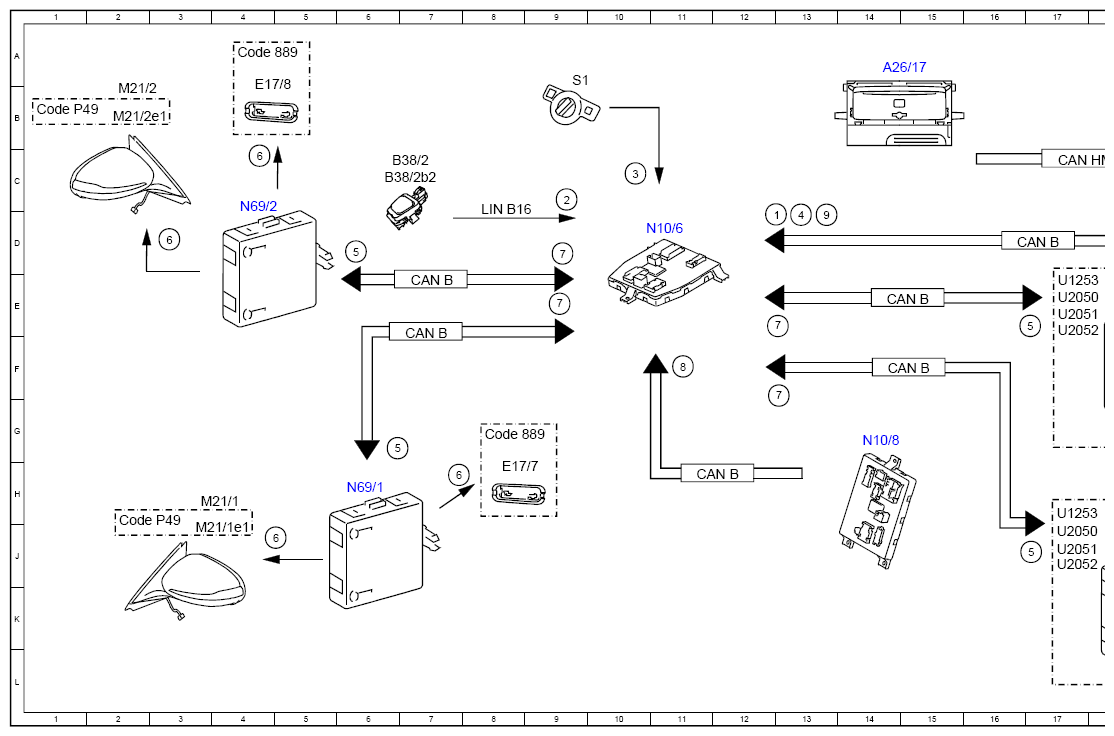

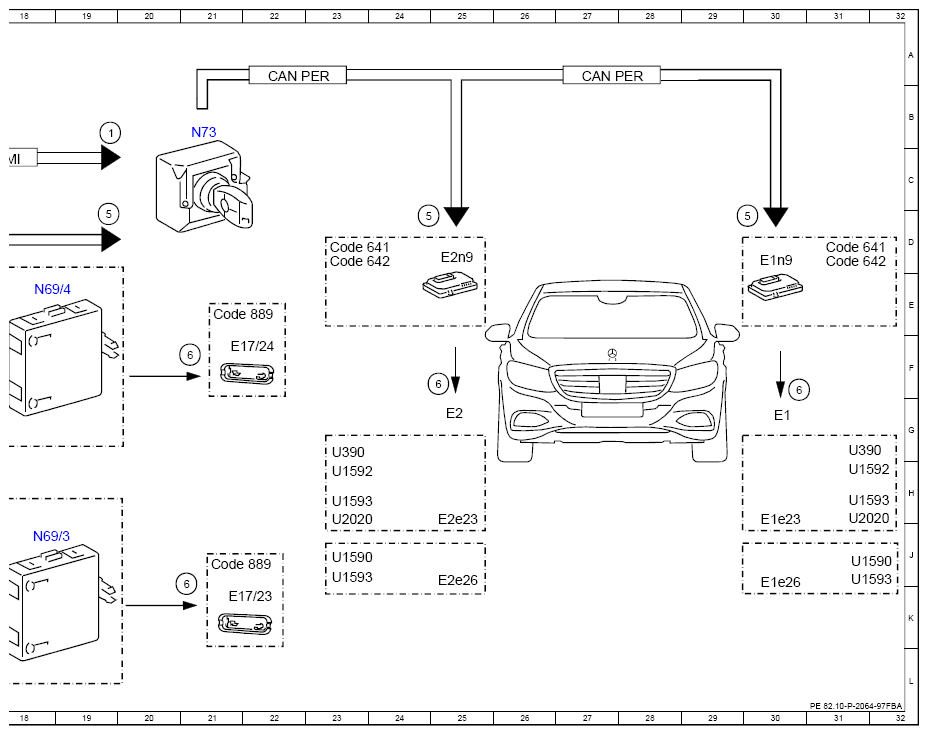

Electrical Function Schematic For Ambient Illumination - PE82.10-P-2064-97FBA
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambient illumination, request | 19B |
| 1 | Ambient illumination, request | 12D |
| 2 | Dusk setting, signal | 9C |
| 3 | Exterior lights switch, status | 10C |
| 4 | Circuit 15, status | 13D |
| 5 | Ambient lamp, request | 6G |
| 5 | Ambient lamp, request | 6D |
| 5 | Ambient lamp, request | 17E |
| 5 | Ambient lamp, request | 24D |
| 5 | Ambient lamp, request | 30D |
| 5 | Ambient lamp, request | 19D |
| 5 | Ambient lamp, request | 17J |
| 6 | Ambient lamp, actuation | 3D |
| 6 | Ambient lamp, actuation | 4J |
| 6 | Ambient lamp, actuation | 4C |
| 6 | Ambient lamp, actuation | 7H |
| 6 | Ambient lamp, actuation | 21F |
| 6 | Ambient lamp, actuation | 25F |
| 6 | Ambient lamp, actuation | 30F |
| 6 | Ambient lamp, actuation | 21K |
| 7 | Door rotary tumbler switch, status | 9D |
| 7 | Door rotary tumbler switch, status | 9E |
| 7 | Door rotary tumbler switch, status | 13E |
| 7 | Door rotary tumbler switch, status | 13F |
| 8 | Trunk lid/liftgate rotary tumbler switch, status | 11F |
| 9 | Central locking, status | 13D |
| A26/17 | Head unit | 14A |
| B38/2 | Rain/light sensor with additional functions | 7C |
| B38/2b2 | Light sensor | 6C |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 14E |
| CAN B | Interior CAN | 14F |
| CAN HMI | User interface CAN | 17C |
| CAN PER | Peripherals CAN | 22A |
| CAN PER | Peripherals CAN | 27A |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 23D |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 31D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 23D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 31D |
| Code 889 | KEYLESS-GO | 8G |
| Code 889 | KEYLESS-GO | 4A |
| Code 889 | KEYLESS-GO | 21E |
| Code 889 | KEYLESS-GO | 21J |
| Code P49 | Mirror package | 1B |
| Code P49 | Mirror package | 2J |
| E1 | Left front lamp unit | 30G |
| E17/23 | Left rear door exterior door handle illumination | 21K |
| E17/24 | Right rear door exterior door handle illumination | 21F |
| E17/7 | Left front door exterior door handle illumination | 8H |
| E17/8 | Right front door exterior door handle illumination | 4B |
| E1e23 | Left front ambient light | 30J |
| E1e26 | Left position light, daytime running light, turn signal light and ambient light | 30K |
| E1n9 | Left headlamp control unit | 30D |
| E2 | Right front lamp unit | 25G |
| E2e23 | Right front ambient light | 25H |
| E2e26 | Right position light, daytime running light, turn signal light and ambient light | 25J |
| E2n9 | Right headlamp control unit | 25D |
| LIN B16 | Rain and light sensor LIN | 8D |
| M21/1 | Left outside mirror | 3H |
| M21/1e1 | Left outside mirror ambient lamp | 3J |
| M21/2 | Right outside mirror | 2B |
| M21/2e1 | Right outside mirror ambient lamp | 2B |
| N10/6 | Front SAM control unit | 11D |
| N10/8 | Rear SAM Control Unit | 14G |
| N69/1 | Left front door control unit | 6H |
| N69/2 | Right front door control unit | 4C |
| N69/3 | Left rear door control unit | 18J |
| N69/4 | Right rear door control unit | 18E |
| N73 | Electronic ignition switch control unit | 21B |
| S1 | Exterior lights switch | 9A |
| U1253 | Valid for Model 253 | 17E |
| U1253 | Valid for Model 253 | 17H |
| U1590 | Valid up to model year 2020 | 23J |
| U1590 | Valid up to model year 2020 | 31J |
| U1592 | Valid for Model 253. 99 | 23H |
| U1592 | Valid for Model 253.99 | 31H |
| U1593 | Valid for Model 253 except Model 253.99 | 23H |
| U1593 | Valid for Model 253 except Model 253.99 | 23J |
| U1593 | Valid for Model 253 except Model 253.99 | 31H |
| U1593 | Valid for Model 253 except Model 253.99 | 31J |
| U2020 | Valid as of model year 2020 | 23J |
| U2020 | Valid as of model year 2020 | 31H |
| U2050 | Valid for Model 205.0 | 17E |
| U2050 | Valid for Model 205.0 | 17J |
| U2051 | Valid for Model 205.1 | 17E |
| U2051 | Valid for Model 205.1 | 17J |
| U2052 | Valid for Model 205.2 | 17E |
| U2052 | Valid for Model 205.2 | 17J |
| U390 | Valid for Model 205 | 23G |
| U390 | Valid for Model 205 | 31G |
