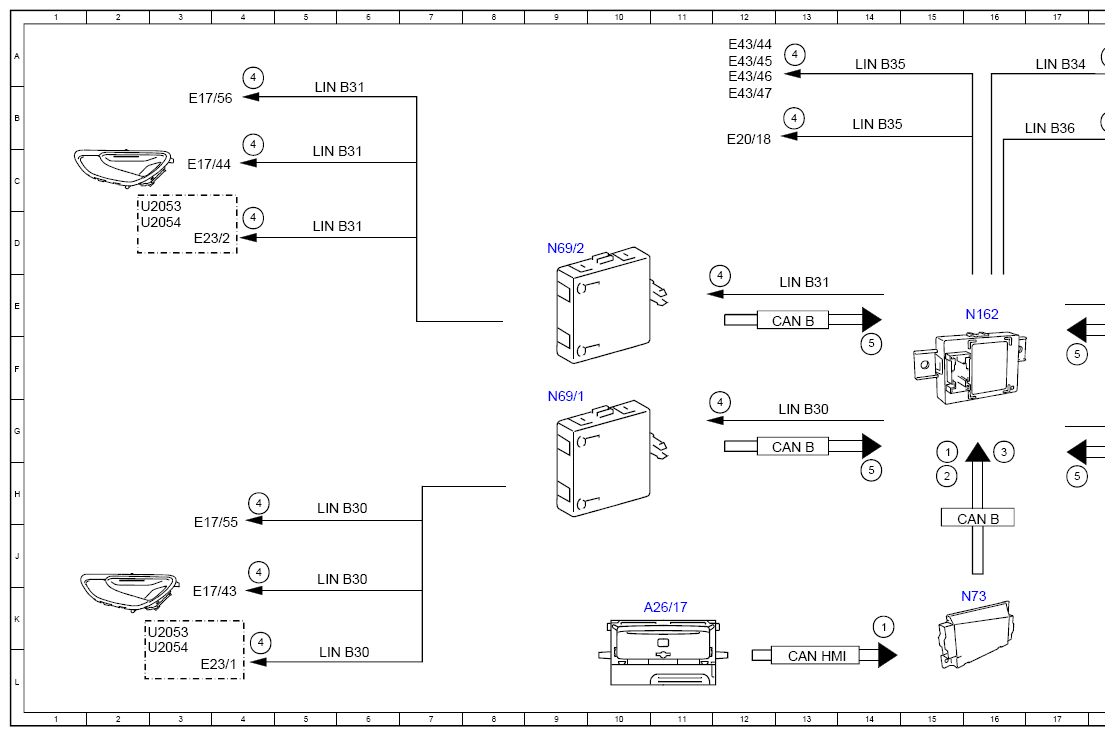

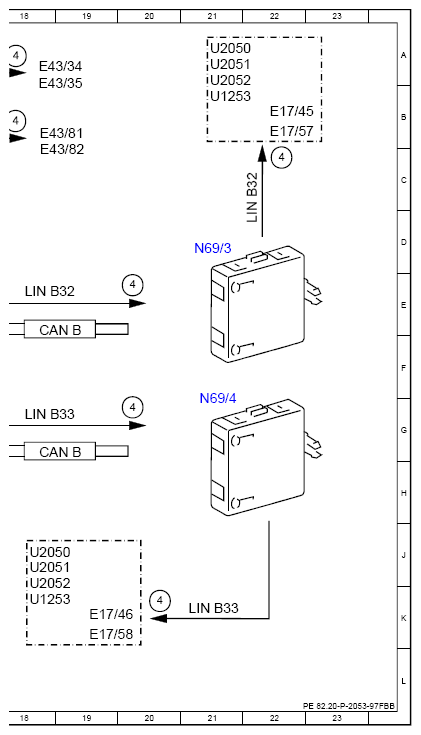

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97FBB
Model 205 as of model year 2019
with Code 877 (Ambient Lighting)
Model 253 (except 253.99) as of model year 2020
Model 253.99
with Code 877 (Ambient Lighting)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambiance Illumination settings, status | 14K |
| 1 | Ambiance Illumination settings, status | 15G |
| 2 | Circuit 15, status | 15H |
| 3 | Central locking, status | 16G |
| 4 | Ambience illumination, request | 4K |
| 4 | Ambience illumination, request | 4H |
| 4 | Ambience illumination, request | 4J |
| 4 | Ambience illumination, request | 4A |
| 4 | Ambience illumination, request | 4D |
| 4 | Ambience illumination, request | 4B |
| 4 | Ambience illumination, request | 13A |
| 4 | Ambience illumination, request | 13B |
| 4 | Ambience illumination, request | 12E |
| 4 | Ambience illumination, request | 12G |
| 4 | Ambience illumination, request | 18A |
| 4 | Ambience illumination, request | 18B |
| 4 | Ambience illumination, request | 20E |
| 4 | Ambience illumination, request | 20G |
| 4 | Ambience illumination, request | 22C |
| 4 | Ambience illumination, request | 20K |
| 5 | Door rotary tumbler switch, status | 14F |
| 5 | Door rotary tumbler switch, status | 14H |
| 5 | Door rotary tumbler switch, status | 17F |
| 5 | Door rotary tumbler switch, status | 17H |
| A26/17 | Head unit | 11K |
| CAN B | Interior CAN | 16H |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 13G |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 18G |
| CAN HMI | User interface CAN | 13L |
| E17/43 | Left front door Ambiance Illumination | 3K |
| E17/44 | Right front door Ambiance Illumination | 3C |
| E17/45 | Left rear door Ambiance Illumination | 22B |
| E17/46 | Right rear door Ambiance Illumination | 19K |
| E17/55 | Left front door handle Ambiance Illumination | 3J |
| E17/56 | Right front door handle Ambiance Illumination | 3B |
| E17/57 | Left rear door handle Ambiance Illumination | 22B |
| E17/58 | Right rear door handle Ambiance Illumination | 19K |
| E20/18 | Front center console cup holder Ambiance Illumination | 12B |
| E23/1 | Left front door stowage compartment illumination | 3L |
| E23/2 | Right front door stowage compartment illumination | 3D |
| E43/34 | Left rear footwell illumination Ambiance Illumination (LED) | 18A |
| E43/35 | Right rear footwell illumination Ambiance Illumination (LED) | 18B |
| E43/44 | Upper left center console Ambient Lighting | 12A |
| E43/45 | Upper right center console Ambient Lighting | 12A |
| E43/46 | Lower left center console Ambient Lighting | 12A |
| E43/47 | Lower right center console Ambient Lighting | 12B |
| E43/81 | Left front footwell Ambiance Illumination | 18B |
| E43/82 | Right front footwell Ambiance Illumination | 18C |
| LIN B30 | Left front door Ambiance Illumination LIN | 5L |
| LIN B30 | Left front door Ambiance Illumination LIN | 5H |
| LIN B30 | Left front door Ambiance Illumination LIN | 5J |
| LIN B30 | Left front door Ambiance Illumination LIN | 13G |
| LIN B31 | Right front door Ambiance Illumination LIN | 5B |
| LIN B31 | Right front door Ambiance Illumination LIN | 5D |
| LIN B31 | Right front door Ambiance Illumination LIN | 5C |
| LIN B31 | Right front door Ambiance Illumination LIN | 13E |
| LIN B32 | Left rear door Ambiance Illumination LIN | 18E |
| LIN B32 | Left rear door Ambiance Illumination LIN | 22C |
| LIN B33 | Right rear door Ambiance Illumination LIN | 18G |
| LIN B33 | Right rear door Ambiance Illumination LIN | 21K |
| LIN B34 | Cockpit Ambiance Illumination LIN | 17A |
| LIN B35 | Vehicle interior Ambiance Illumination LIN | 14A |
| LIN B35 | Vehicle interior Ambiance Illumination LIN | 14B |
| LIN B36 | Roof Ambiance Illumination LIN | 17B |
| N162 | Ambiance Illumination control unit | 16E |
| N69/1 | Left front door control unit | 9G |
| N69/2 | Right front door control unit | 9D |
| N69/3 | Left rear door control unit | 21D |
| N69/4 | Right rear door control unit | 21G |
| N73 | Electronic ignition switch control unit | 15K |
| U1253 | Valid for Model 253 | 21B |
| U1253 | Valid for Model 253 | 18K |
| U2050 | Valid for Model 205.0 | 21A |
| U2050 | Valid for Model 205.0 | 18J |
| U2051 | Valid for Model 205.1 | 21A |
| U2051 | Valid for Model 205.1 | 18J |
| U2052 | Valid for Model 205.2 | 21A |
| U2052 | Valid for Model 205.2 | 18K |
| U2053 | Valid for Model 205.3 | 2C |
| U2053 | Valid for Model 205.3 | 2K |
| U2054 | Valid for Model 205.4 | 2D |
| U2054 | Valid for Model 205.4 | 2L |
