Retrofit Wiring Harness For LED Tail Lamps - AZ82.10-P-0005-01LWY
Model 205.0## 2#

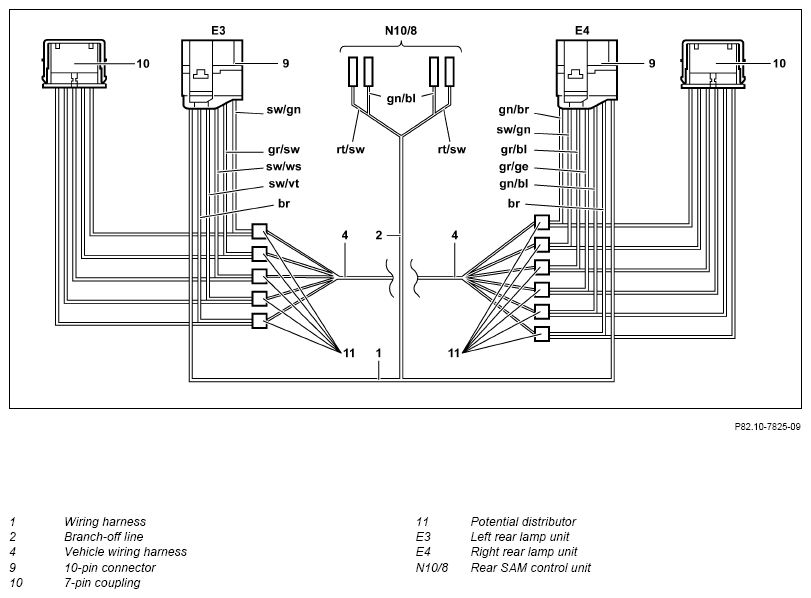

Connection scheme

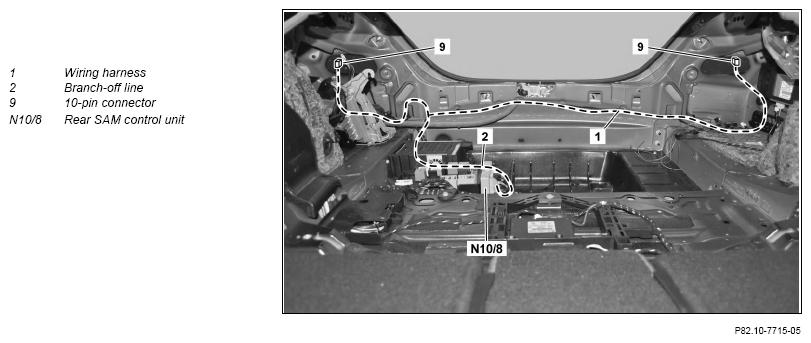

Routing diagram

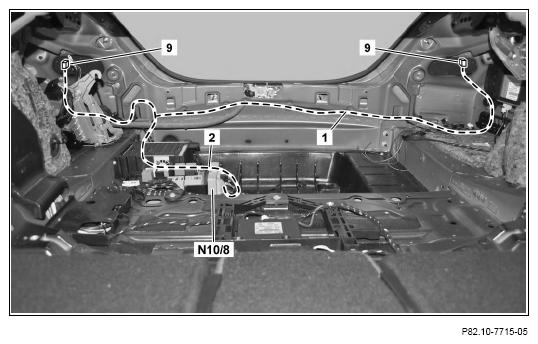

- Route wiring harness (1) from left rear lamp unit (E3) to right rear lamp unit (E4) and clip into rear center section in given bores.
- Strip vehicle wiring harness (4) from 7-pin connector (10) by approx. 10 cm.

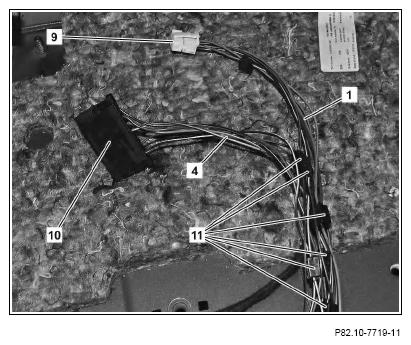

- Connect wiring harness (1) and vehicle wiring harness (4) at left rear lamp unit (E3) with potential distributor (11).
Use basic wiring harness repair kit or
In the following list, connect the lines for the wiring harness (1) to the 7-pin connector (10) of the vehicle wiring harness (4), and cut off any excess line lengths. Wrap felt tape around the potential distributor (11).
- Black/white (BK/WH) line to contact cavity 1 of 7-pin connector (10) → Signal for left turn signal (L)
- Black/violet (BK/VT) line to contact cavity 2 of 7-pin connector (10) → Signal for left tail lamp and brake lamp (58L and 54)
- Contact cavity 3 → not used
- Gray/black (GY/BK) line to contact cavity 4 of 7-pin connector (10) → Signal for left brake light (54)
- Contact cavity 5 → not used
- Brown (BN) line to contact cavity 6 of 7-pin connector (10) → Signal for ground connection (W3/11)
- Black/green (BK/GN) line to contact cavity 7 of 7-pin connector (10) → Signal for left backup lamp
- Connect wiring harness (1) and vehicle wiring harness (4) at right rear lamp unit (E4) with potential distributor (11).
Shown on left side of vehicle
- Black/green (BK/GN) line to contact cavity 1 of 7-pin connector (10) → Signal for right turn signal indicator (R)
- Gray/blue (GY/BU) line to contact cavity 2 of 7-pin connector (10) → Signal for right taillight and brake light (58R54)
- Contact cavity 3 → not used
- Green/brown (GN/BR) line to contact cavity 4 of 7-pin connector (10) → Signal for right brake light (54)
- Green/blue (GN/BU) line to contact cavity 5 of 7-pin connector (10) → Signal for right rear fog light
- Brown (BN) line to contact cavity 6 of 7-pin connector (10) → Signal for ground connection (W3/8)
- Gray/yellow (GY/YE) line to contact cavity 7 of 7-pin connector (10) → Signal for right taillight
Shown on left side of vehicle

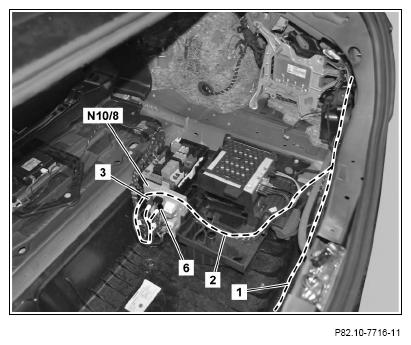

- Route branch-off line (2) along right longitudinal member to rear SAM control unit (N10/8) and fix in place using felt tape.
Vehicles without Code 537 (Digital radio (DAB)) or Code 550 (Trailer hitch) or Code 865 (TV Tuner)

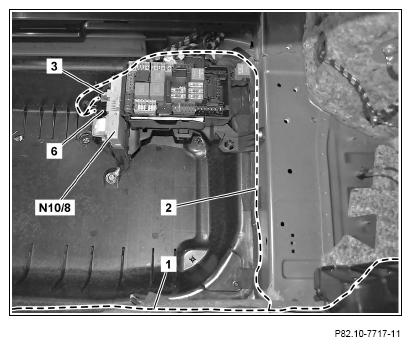

- Route branch-off line (2) along wiring harness in control unit carrier to rear SAM control unit (N10/8).
Vehicles with Code 537 (Digital radio (DAB)) or Code 550 (Trailer hitch) or Code 865 (TV Tuner)

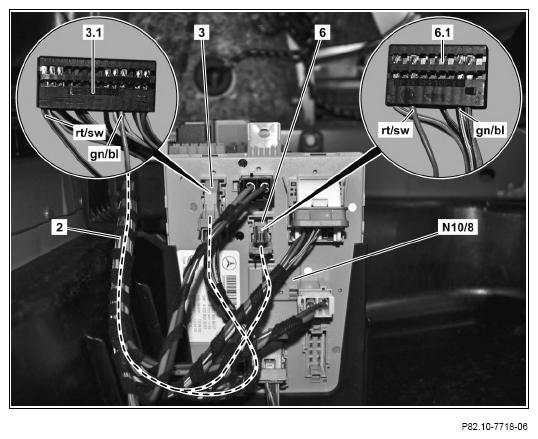

- Remove the blue, 28-pin connector (3), denoted on rear with R, from rear SAM control unit (N10/8).
- Remove the housing from the blue, 28-pin connector (3).
- Install the red/black (RD/BK) line of the blue-marked branch off line (2) in contact cavity 14 of the 28-pin supporting body (3.1).
- Install the green/blue (GN/BU) line of the blue-marked branch off line (2) into contact cavity 4 of the 28-pin supporting body (3.1).
- Remove the black, 20-pin connector (6), denoted on rear by L, from the rear SAM control unit (N10/8).
- Remove the housing from the black, 20-pin connector (6).
- Install the red/black (RD/BK) line in contact cavity 8 of the 20-pin supporting body (6.1).
- Install green/blue (GN/BU) line into contact cavity 13 or 20-pin supporting body (6.1).
- Install the 28-pin supporting body (3.1) back in the blue housing.
- Install the 20-pin supporting body (6.1) back in the black housing.
- Connect the blue, 28-pin connector (3) to the rear SAM control unit (N10/8) again.
- Connect the black, 20-pin connector (6) to the rear SAM control unit (N10/8) again.
- Connect the 10-pin connector (9) to the left rear lamp unit (E3).
- Connect the 10-pin connector (9) to the right rear lamp unit (E4).
