(Adjust E-Call Russia Camera - AR82.95-P-0050-02NKA)

Model 117, 156, 166.0, 172, 176, 205, 231, 246, 253, 292

with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))

with code E64 (ECALL RUSSIA (GLONASS))

Model 117, 190, 217, 218, 222, 246

with code 6U4 (Mercedes-Benz Ecall emergency call system Russia (GLONASS))

Model 166.8

with code E64 (ECALL RUSSIA (GLONASS))

Model 176, 253

with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))

except code E64 (ECALL RUSSIA (GLONASS))

Model 463 up to model year 2019

with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))

with code E64 (ECALL RUSSIA (GLONASS))

To perform the following operations, use a WLAN-capable terminal with a visual display option in the browser (a smartphone in the example described).

Compliance with the following technical specifications is required:

• Compliance with WLAN standard IEEE 802.11g or higher.
• Support for the WPA2 security standard.

  No Internet connection is required.

Establishing a connection to the camera's wireless network

1. Switch on ignition.

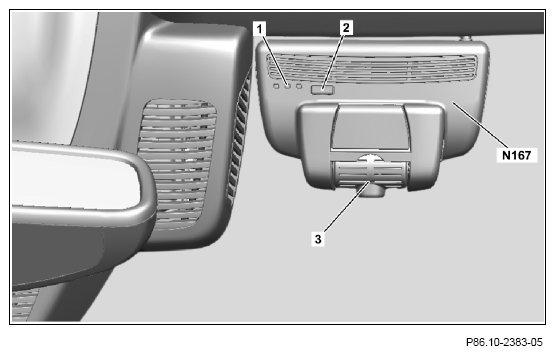

2. Press and hold the button (2) on the eCall Russia (GLONASS) control unit (N167) until the center indicator lamp (1) flashes slowly.

   After approx. 10 s, the indicator lamp (1) goes out and the wireless network is ready to establish a connection for approx. 3 min.

3. Call up the wireless network settings in the smartphone, look for the vehicle camera's wireless network and connect.

   To do so, use the access data at the back of the user handbook of the eCall Russia (GLONASS) control unit (N167).

4. Enter the password for the wireless network.

   To do so, use the access data at the back of the user handbook of the eCall Russia (GLONASS) (N167) control unit.

5. Open an Internet browser on the smartphone and enter "192.168.2.1" in the address line and confirm.

   Courtesy of MERCEDES-BENZ USA

   Check and correct camera settings

6. In the "Main" menu, select the "Livestream" option.
7. Check and correct the vertical camera (3) alignment using the image shown.

Set up the camera (3) so that it shows the whole area in front of the vehicle and the hood can also be seen at the bottom edge of the screen.

It is only possible to adjust the vertical alignment.
