Transfer Plug Housing For TV Tuner Electrical Wiring Harness - AN82.60-P-0030-03LF
Model 117, 156, 166, 172, 176, 205, 207, 212, 217, 218, 222, 231, 242, 246, 253, 292, 463
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. Model 117, 156, 205.0/2/3, 212, 217, 222, 231, 253 | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 117, 156, 205.0/2/3, 212, 217, 222, 231, 253 | AH80.61-P-0001-01A |

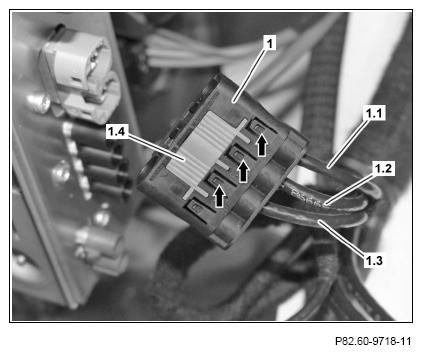

- Release and remove secondary fuse (1.4) at connector socket (1).
- Mark electrical lines (1.1, 1.2 and 1.3) to match contact cavity assignment of connector socket (1).
- Release and remove electrical lines (1.1, 1.2 and 1.3) at locks (arrows).

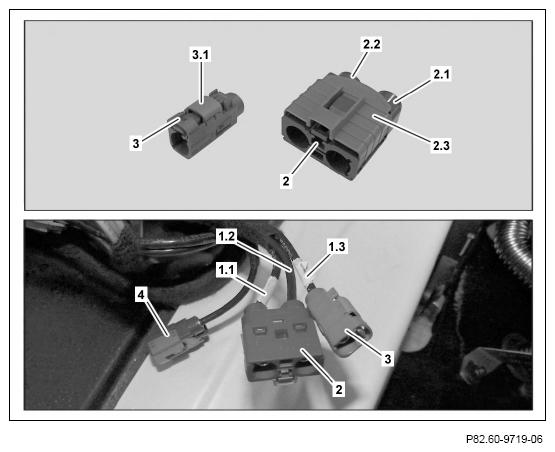

- Release and remove secondary fuse (3.1) at connector socket (3).
- First install removed electrical line (1.3) in connector socket (3).
- Install and lock secondary fuse (3.1) at connector socket (3).
- Release and remove secondary fuse (2.3) at connector socket (2) as shown.
- First install removed electrical line (1.1) in contact cavity (2.1) on connector socket (2).
- First install removed electrical line (1.2) in contact cavity (2.2) on connector socket (2).
- Lock secondary fuse (2.3) at connector socket (2).
- Model 117, 156, 166, 172, 176, 205, 207, 212, 217, 218, 222, 231, 242, 246, 253, 292 with code 537 (Digital radio (DAB))
Strap down connector socket (4).
