Retrofit GPS Antenna For SD Card Navigation - AN82.85-P-0007-02LW

Model 205.0/1/2/3/4

Work procedure shown on left-hand drive vehicle, the work procedure may deviate for right-hand drive vehicles.

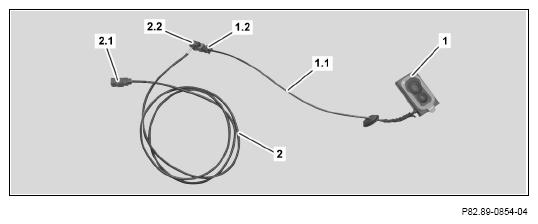

1. Remove violet supporting body (2.1) from adapter line (2).

   The violet supporting body (2.1) is no longer required.

2. Connect violet, 1-pin plug (1.2) of antenna line (1.1) to violet, 1-pin connector (2.2) of adapter line (2).
3. Wrap felt tape around antenna line (1.1) and adapter line (2).

   Courtesy of MERCEDES-BENZ USA

4. Attach commercially available Velcro strip (3) to top of global positioning system (GPS) antenna (1).

   The given duct tape with red carrier foil on the bottom of the GPS antenna (1) is no longer required.

5. Detach carrier foil from Velcro strip (3).

   Courtesy of MERCEDES-BENZ USA

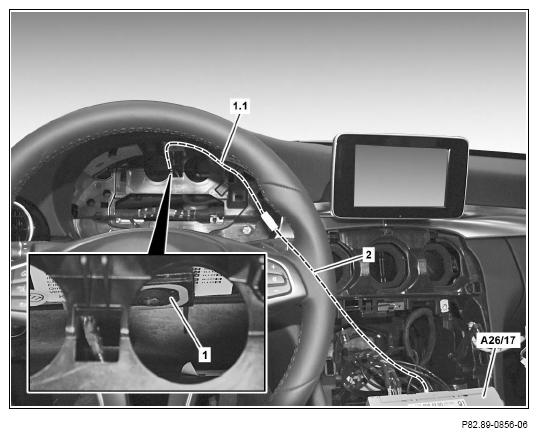

6. Stick GPS antenna (1) into device installation frame of instrument cluster.
7. Route antenna line (1.1) and adapter line (2) into device installation frame of head unit (A26/17) and fix in place with cable ties.

   Courtesy of MERCEDES-BENZ USA

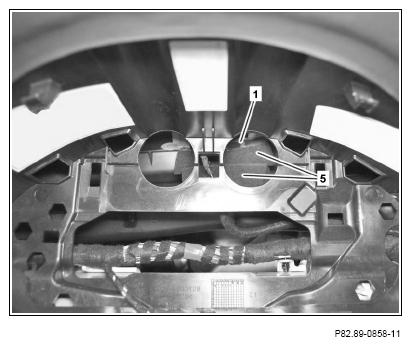

8. Stick foam pads (5) between GPS antenna (1) and instrument panel.

   Foam pads (5) are included in installation kit.

   Courtesy of MERCEDES-BENZ USA

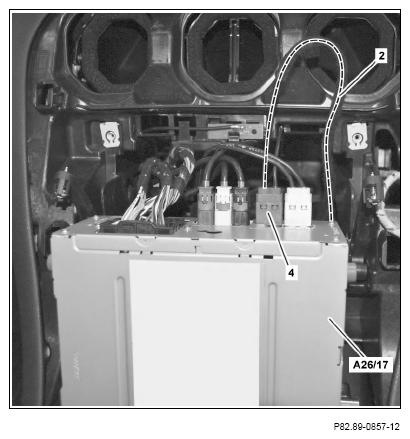

9. Disconnect blue, 2-pin connector (4) from head unit (A26/17).
10. Install adapter line (2) into blue, 2-pin connector (4).
11. Connect blue, 2-pin connector (4) with head unit (A26/17).

    Courtesy of MERCEDES-BENZ USA
