Retrofit CAN Wiring Harness - AN82.60-P-0017-02LWA

Model 205.0/2/3/4

with code 506 (Audio 20 NTG 5.5 radio)

except code 520 (Audio 20 USB)

except code 522 (Audio 20 radio)

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Welding Bead Catcher (129 589 01 98 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter (220 589 01 99 42)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Reflector (220 589 01 99 41)

Courtesy of MERCEDES-BENZ USA

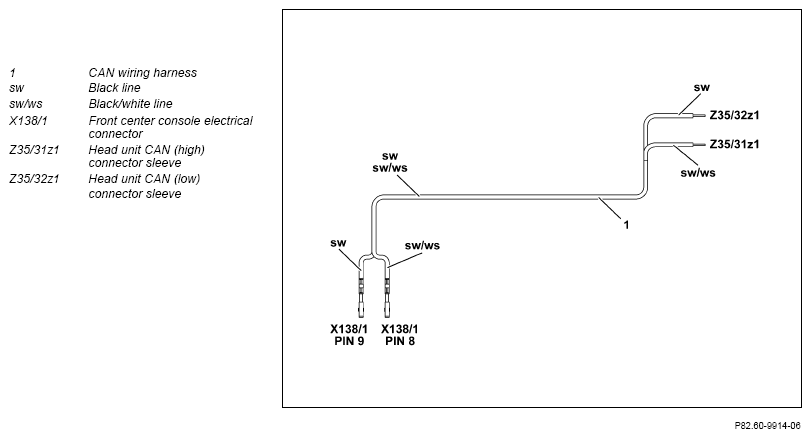

Connection scheme

Courtesy of MERCEDES-BENZ USA

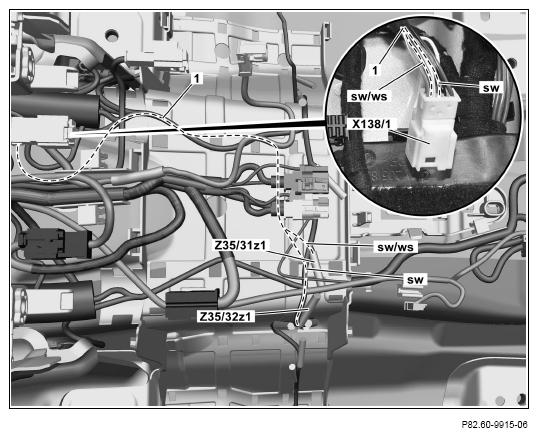

1. Install black/white line (BK/WH) into contact cavity 8 of front center console electrical connector (X138/1).

   The contact cavities are labeled.

2. Install black line (BK) into contact cavity 9 of front center console electrical connector (X138/1).

   The contact cavities are labeled.

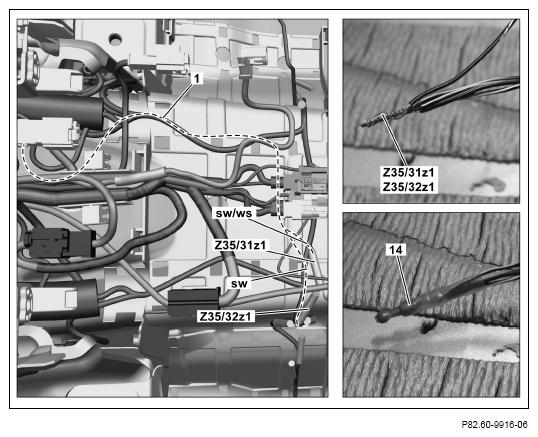

3. Route CAN wiring harness (1) along existing lines to head unit end sleeve CAN (low) (Z35/32z1) and head unit end sleeve CAN (high) (Z35/31z1).

   Courtesy of MERCEDES-BENZ USA

4. Solder black/white line (BK/WH) to head unit end sleeve CAN (high) (Z35/31z1).

   The end sleeve (14) and the adapter and the reflector are available in the basic wiring harness repair kit or the supplementary wiring harness repair kit.

   When making the soldering joint use welding pearl catcher.

5. Wrap the end sleeve (14) with fabric tape.
6. Solder black line (BK) to head unit end sleeve CAN (Low) (Z35/32z1).

   The end sleeve (14) and the adapter and the reflector are available in the basic wiring harness repair kit or the supplementary wiring harness repair kit.

   When making the soldering joint use welding pearl catcher.

7. Wrap the end sleeve (14) with fabric tape.
8. Fasten CAN wiring harness (1) in place using cable ties.

   Courtesy of MERCEDES-BENZ USA
