Check And Correct The Adjustment Of The Headlamps - AP82.10-P-8260E
Model 205, 253

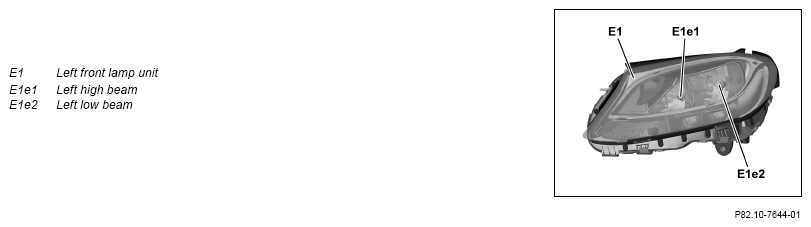

Halogen headlamp, shown on model 205

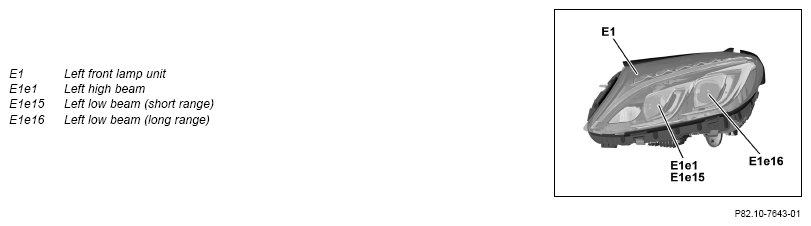

Static LED headlamp, shown on model 205

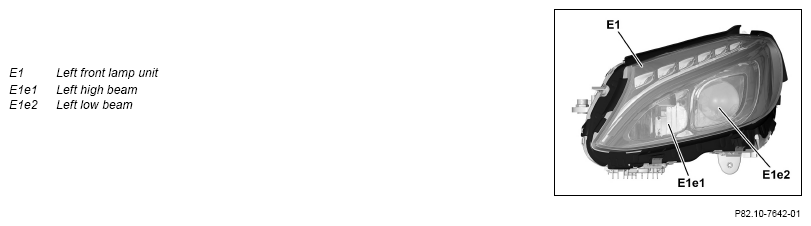

Dynamic LED headlamp, shown on model 205
Shown in model 205
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| General information on checking/correcting headlamp adjustment | AH82.10-P-1000-01A | ||
| Check | |||
| 1 | Check low beam setting; adjust if necessary | Halogen headlamp ECE version | AP82.10-P-8263R |
| Halogen headlamp SAE version | AP82.10-P-8263Q | ||
| Static LED headlamps, ECE version | AP82.10-P-8263U | ||
| Static LED headlamps, SAE version | AP82.10-P-8263V | ||
| Dynamic LED headlamps, ECE version | AP82.10-P-8263W | ||
| Dynamic LED headlamps, SAE version | AP82.10-P-8263T | ||
Before the low beams are checked and set, all operation steps listed in the linked description must be performed carefully. Otherwise it cannot be guaranteed that the headlamps concerned are correctly set, which can then jeopardize the road safety of the vehicle! |
|||
| 2 | Switch on high beam | On vehicles with active high beams assistant: ↓ Have a second person actuate the headlamp flasher in order to activate the high beams. |
|
| 3 | Check setting of high beam | AP82.10-P-8260-02D | |

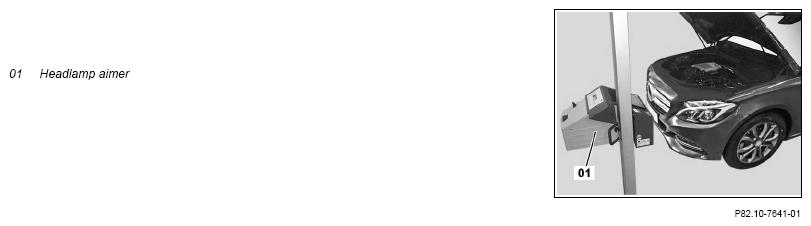

Position the headlamp aimer (01) in front of the left high beam headlamp (E1e1). The same procedure is used to adjust the right side. If the high beam setting is not OK: ↓ Rectify the problem subject to a separate repair order. |
|||
| 4 | Reset switch positions to input condition |
