Check Wiper Arms - AR82.30-P-6000-01LW

Model 205

Model 206, 297

Model 213

Model 238

Model 253, 293

IMPORTANT Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). AS82.30-Z-0001-01A
  Notes on wiper arm adjustment   AH82.30-P-0001-01A
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 205 Model 206
BE82.30-P-1001-01M Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 1...-6, 1 -1, 2...-5, 2
Right-hand drive vehicle ∠° +2, 1...+ 6, 1 +1, 2...+5, 2
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 213 Model 238
BE82.30-P-1001-01M Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 1...-6, 1 -0, 5...-4, 5
Right-hand drive vehicle ∠° +2, 1...+6, 1 +0, 5...+4, 5
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 253 Model 293
BE82.30-P-1001-01M Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -1, 2...-5, 2 -1, 2...-5, 2
Right-hand drive vehicle ∠° +1, 2...+5, 2 +1, 2...+5, 2
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 297
BE82.30-P-1001-01M Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 1...-6, 1
Right-hand drive vehicle ∠° +2, 1...+6, 1
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 205 Model 206
BE82.30-P-1002-01M Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 1...-6, 1 -2, 5...-6, 5
Right-hand drive vehicle ∠° +2, 1...+6, 1 +2, 5...+6, 5
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 213 Model 238
BE82.30-P-1002-01M Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 1...-6, 1 -0, 8...-4, 8
Right-hand drive vehicle ∠° +2, 1...+6, 1 +0, 8...+4, 8
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 253 Model 293
BE82.30-P-1002-01M Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -1, 8...-5, 8 -1, 8...-5, 8
Right-hand drive vehicle ∠° +1, 8...+5, 8 +1, 8...+5, 8
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 297
BE82.30-P-1002-01M Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -1, 9...-5, 9
Right-hand drive vehicle ∠° +1, 9...+5, 9
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 205 Model 206
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 5...+7, 5 +3, 0....+7, 0
Right-hand drive vehicle ∠° -3, 5...-7, 5 -3, 0....-7, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 213 Model 238
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 5...+7, 5 +2, 1...+6, 1
Right-hand drive vehicle ∠° -3, 5...-7, 5 -2, 1...-6, 1
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 253 Model 293
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 4...+7, 4 +3, 4...+7, 4
Right-hand drive vehicle ∠° -3, 4...-7, 4 -3, 4...-7, 4
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 297
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0
Right-hand drive vehicle ∠° -3, 0...-7, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 205 Model 206
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 1...+7, 1 +3, 5...+7, 5
Right-hand drive vehicle ∠° -3, 1...-7, 1 -3, 5...-7, 5
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 213 Model 238
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 1...+7, 1 +1, 3...+5, 3
Right-hand drive vehicle ∠° -3, 1...-7, 1 -1, 3...-5, 3
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 253 Model 293
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0 +3, 0...+7, 0
Right-hand drive vehicle ∠° -3, 0...-7, 0 -3, 0...-7, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 297
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0
Right-hand drive vehicle ∠° -3, 0...-7, 0
Fig 1: Identifying Adapter (206 589 00 21 00)
G13774901Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Adapter (231 589 00 21 00)
G10112396Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Adapter (205 589 00 21 00)
G10134557Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Adjusting Tool Set (211 589 02 21 00)
G07304520Courtesy of MERCEDES-BENZ USA

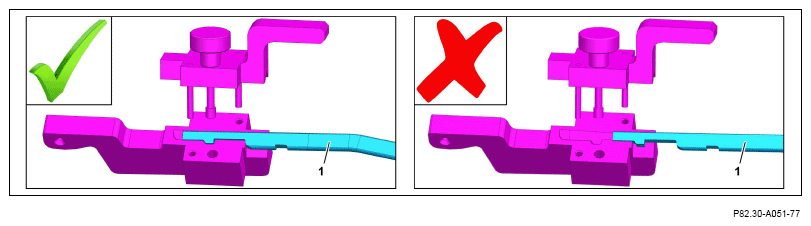

G14187992Courtesy of MERCEDES-BENZ USA

Shown on driver-side wiper arm (1) on model 206

NOTES Model 206, 297

Ensure that driver-side wiper arm (1) is seated correctly in SPECIAL TOOL adapter.

Otherwise, measurement errors will occur, resulting in incorrect adjustment of driver-side wiper arm (1).

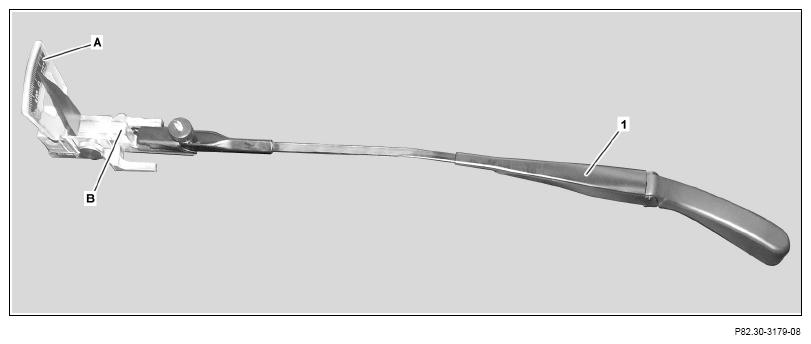

G14187993Courtesy of MERCEDES-BENZ USA

Shown on driver-side wiper arm (1) on model 205

IMPORTANT Use the following special tools:

SPECIAL TOOL Angle gauge (A) from SPECIAL TOOL adjustment tool set (211 589 02 21 00)

Model 205, 206, 213, 253, 293, 297

Model 238 except code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) SPECIAL TOOL Adaptor (B) (205 589 00 21 00)

Model 238 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) SPECIAL TOOL Adapter (B) (231 589 00 21 00)

Model 206, 297 SPECIAL TOOL Adapter (B) (206 589 00 21 00)

  1. Insert corresponding SPECIAL TOOLSPECIAL TOOLSPECIAL TOOL adapter (B) into guide of SPECIAL TOOL angle gauge (A) and fix in place using screw on SPECIAL TOOL angle gauge (A).
  2. Fold up driver-side wiper arm (1) and attach SPECIAL TOOL angle gauge (A) together with corresponding SPECIAL TOOLSPECIAL TOOLSPECIAL TOOL adapter (B) to wiper blade mount.
  3. Lower driver-side wiper arm (1) until all three contact points at base of SPECIAL TOOL angle gauge (A) are in contact with windshield.
  4. Read angle of incidence of driver-side wiper arm (1) on scale of SPECIAL TOOL angle gauge (A), and note.
  5. SPECIAL TOOL Remove angle gauge (A) together with corresponding SPECIAL TOOLSPECIAL TOOLSPECIAL TOOL adapter (B) from driver-side wiper arm (1).
  6. Repeat testing procedure for passenger-side wiper arm.
  7. Move driver-side wiper arm (1) and passenger-side wiper arm to parked position and repeat testing procedure for driver-side wiper arm (1) and passenger side wiper arm.

    NOTES When changing from reversing position to parking position, make sure that driver-side wiper arm (1) and passenger-side wiper arm do not make direct contact with windshield.

    Otherwise the windshield will be damaged.

    IMPORTANT For test procedure on passenger-side wiper arm, move passenger-side wiper arm from parking position.

  8. Compare recorded check values with adjustment values.
