Adjust Wiper Arms - AR82.30-P-6100-01LW

Model 205

Model 206, 297

Model 213

Model 238

Model 253, 293

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on wiper arm adjustment		AH82.30-P-0001-01A

Number	Designation			Model 205	Model 206
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 5...+ 7, 5	+3, 0....+7, 0
		Right-hand drive vehicle	∠°	-3, 5...-7, 5	-3, 0....-7, 0

Number	Designation			Model 213	Model 238
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 5...+ 7, 5	+2, 1...+6, 1
		Right-hand drive vehicle	∠°	-3, 5...-7, 5	-2, 1...-6, 1

Number	Designation			Model 253	Model 293
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 4...+7, 4	+3, 4...+7, 4
		Right-hand drive vehicle	∠°	-3, 4...-7, 4	-3, 4...-7, 4

Number	Designation			Model 297
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 0...+7, 0
		Right-hand drive vehicle	∠°	-3, 0...-7, 0

Number	Designation			Model 205	Model 206
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 1...+7, 1	+3, 5...+7, 5
		Right-hand drive vehicle	∠°	-3, 1...-7, 1	-3, 5...-7, 5

Number	Designation			Model 213	Model 238
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 1...+7, 1	+1, 3...+5, 3
		Right-hand drive vehicle	∠°	-3, 1...-7, 1	-1, 3...-5, 3

Number	Designation			Model 253	Model 293
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 0...+7, 0	+3, 0...+7, 0
		Right-hand drive vehicle	∠°	-3, 0...-7, 0	-3, 0...-7, 0

Number	Designation			Model 297
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 0...+7, 0
		Right-hand drive vehicle	∠°	-3, 0...-7, 0

Courtesy of MERCEDES-BENZ USA

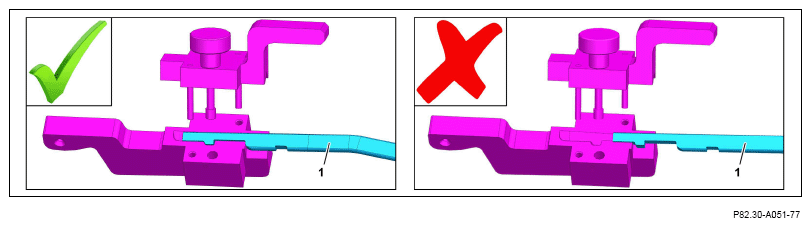

Shown on driver-side wiper arm (1) on model 206

Model 206, 297

Ensure that driver-side wiper arm (1) is seated correctly in the adapter.

Otherwise, measurement errors will occur, resulting in incorrect adjustment of driver-side wiper arm (1).

Use the following special tools:

Angle gauge (A) from adjustment tool set (211 589 02 21 00)

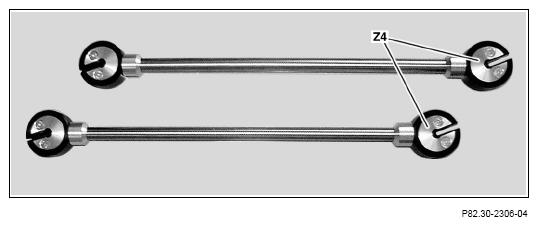

Adjustment lever (Z4) from adjustment tool set (211 589 02 21 00)

Model 205, 206, 213, 253, 293, 297

Model 238

except code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Adapter (E) (205 589 00 21 00)

Model 238 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Adapter (E) (231 589 00 21 00)

Model 206, 297 Adapter (E) (206 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

1. Attach angle gauge (A) with corresponding adapter (E) to wiper arm to be adjusted.
2. Position adjustment levers (Z4) as far apart from one another as possible on wiper arm to be adjusted.

   Cross adjustment levers (Z4) in required direction until correct set value on scale of angle gauge (A) is achieved.

   Wiper arms are crossed axially using adjustment lever (Z4) positioned near to angle gauge (A). The second adjustment lever (Z4) is used as a counterholder.

3. Remove adjustment levers (Z4) from wiper arm.
4. Read angle of incidence of adjusted wiper arm on scale of angle gauge (A), and compare with adjustment value.

   If a deviation is present,

   ↓

   correct angle of incidence.

5. Remove angle gauge (A) with corresponding adapter (E) from adjusted wiper arm.
6. Repeat adjustment procedure on wiper arm not yet adjusted.

   If required.

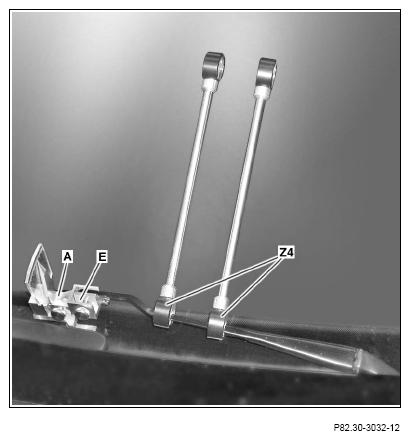

   Shown on driver-side wiper arm in parked position

   Courtesy of MERCEDES-BENZ USA
