Prepare Waistline Reinforcement For Rear Fender For Installation - Ar63.50-P-0003-02LWR

Model 205.4

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

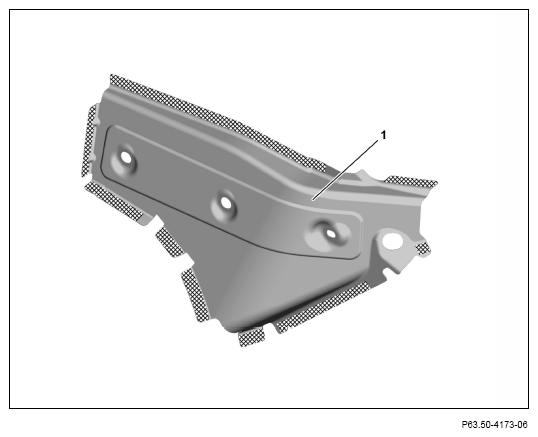

1. Grind mating surfaces on window ledge reinforcement (1) down to bare metal in crosshatched areas.
2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
