Install And Weld In B-Pillar - Ar63.20-P-1350-06LWR

Model 205.4

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

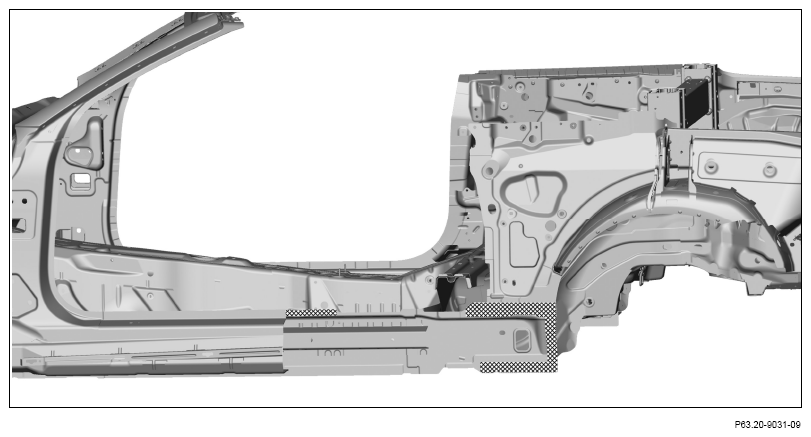

1. Apply 2-component adhesive to body in crosshatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

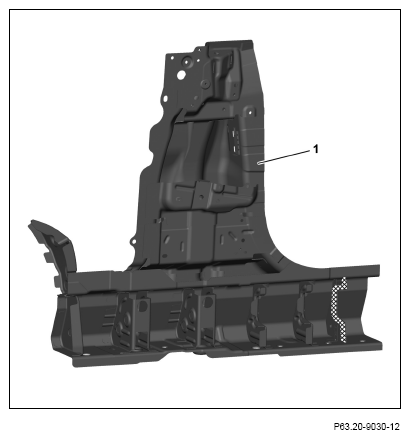

2. Apply sealant to B-pillar (1) in crosshatched area.

   Courtesy of MERCEDES-BENZ USA

3. Install B-pillar (1) with portal bracket, fit and fix in place.

   Use spacers.

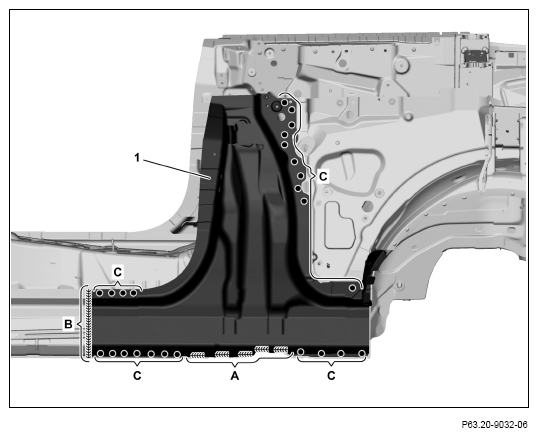

4. B-pillar (1) (areas A and B).

   Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

5. Grind inert gas weld down flat (area B).
6. B-pillar (1) (areas C).
7. Solder surfaces on B-pillar (1) with body solder and smooth (area B).

   Alternatively to restorage of the surfaces with body solder, it is also possible to use a body basic spatula.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

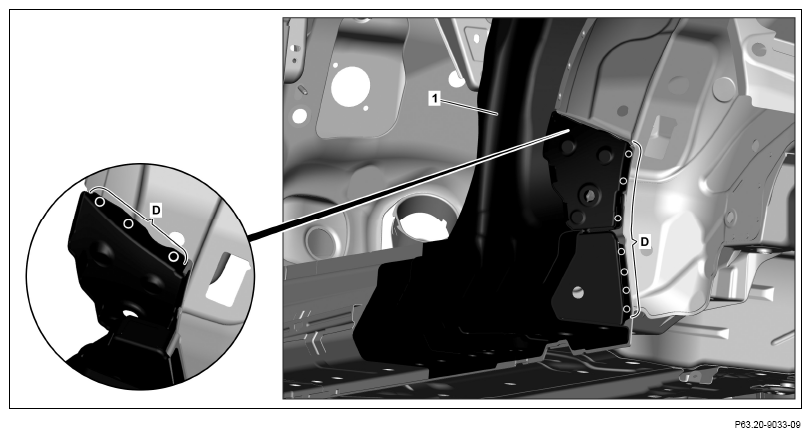

8. B-pillar (1) (areas D).

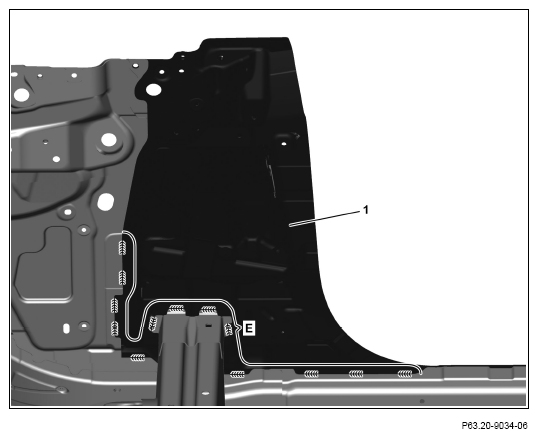

9. B-pillar (1) (area E).

   Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

10. Remove portal bracket.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

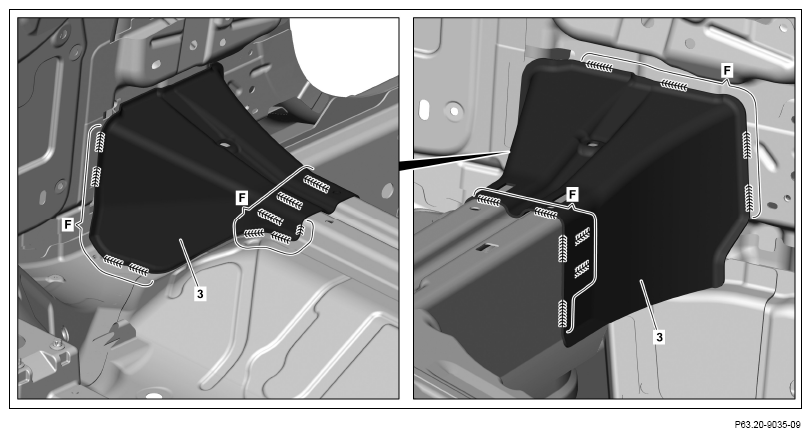

11. Support (3) (areas F).

    Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

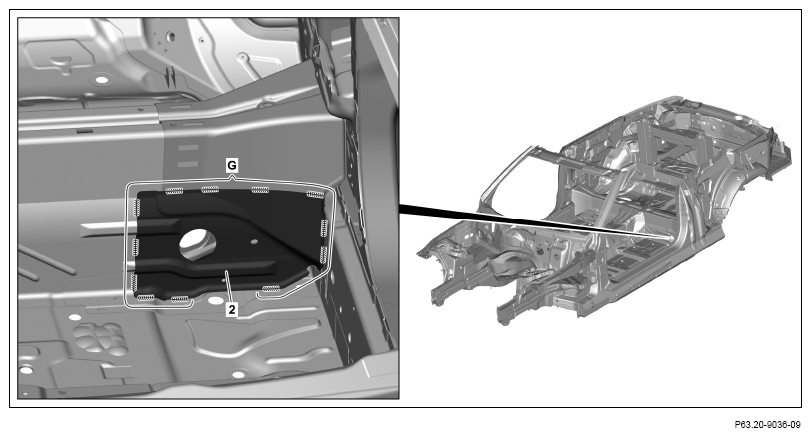

    Fig 1: Crossmember Reinforcement Component Location (Model 205.4)

    Courtesy of MERCEDES-BENZ USA
12. Crossmember reinforcement (2) (area G).

    Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

    Courtesy of MERCEDES-BENZ USA

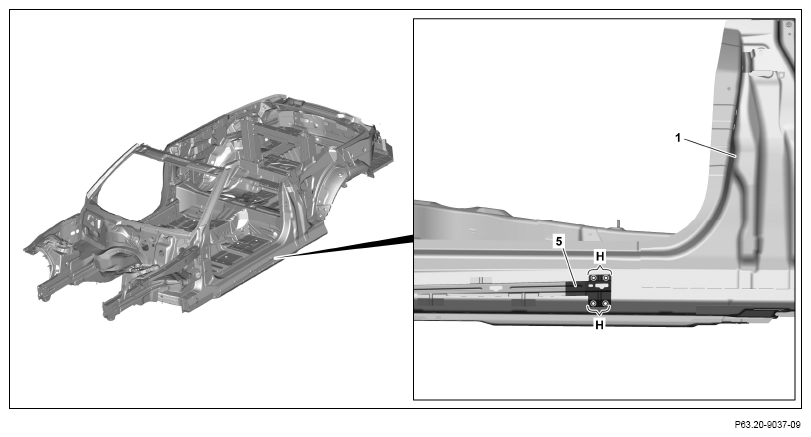

13. Install mounting rail (5), fit and fix in place.
14. Drill rivet holes on mounting rail (5) with Ø 6.7 mm (areas H).
15. Remove mounting rail (5).
16. Deburr rivet holes on mounting rail (5) and B-pillar (1) on both sides.
17. Remove drilling chips.
    Fig 2: Mounting Rail Component Location (Model 205.4)

    Courtesy of MERCEDES-BENZ USA
18. Install mounting rail (5), fit and fix in place.
19. Rivet mounting rail (5) Ø 6.5x12., 5 rivet (areas I).

    Clamping range 3.8 mm.

20. Mounting rail (5) (area J).

    Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

21. Solder surface on mounting rail (5) with body solder and smooth (area J).

    Alternatively to restorage of the surfaces with body solder, it is also possible to use a body basic spatula.
