Cut Off B-Pillar - Ar63.20-P-1350-05LW

Model 205.0/1/2

Model 253

Model 293

The following operation steps are shown on the left side of the vehicle on MODEL 205.0 and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

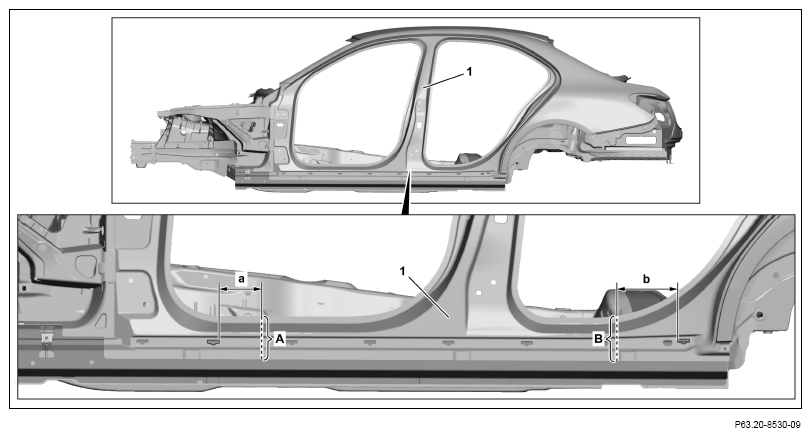

1. Model 205.0/1/2

   Mark separating points on B-pillar paneling (1) and cut (areas A and B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   a = approx. 125 mm

   b = approx. 180 mm

   Courtesy of MERCEDES-BENZ USA

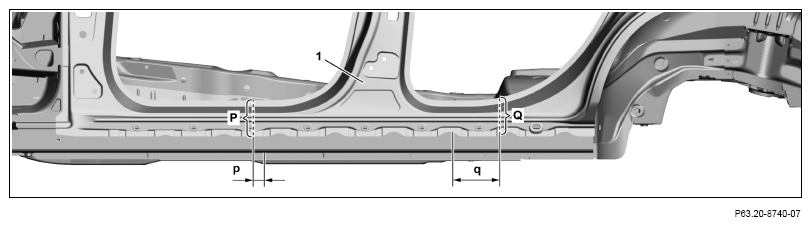

2. Model 253

   Model 293

   Mark separating points on B-pillar paneling (1) and cut (areas P and Q).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   p = approx. 40 mm, measured from Y-marking on longitudinal member outer shell q = approx. 155 mm, measured from Y-marking

   Page 215 of 391

   Courtesy of MERCEDES-BENZ USA

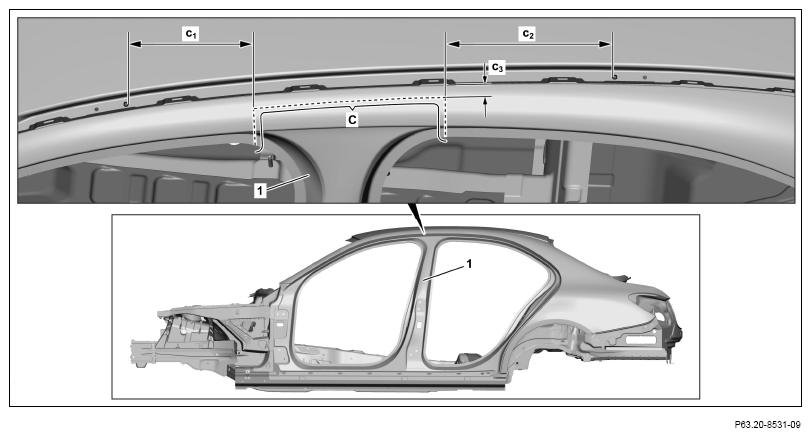

3. Mark separation point on B-pillar paneling (1) and cut (area C).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Model 205.0/1/2

   Dimensions:

   c₁ = approx. 155 mm

   c₂ = approx. 265 mm

   c₃ = approx. 13 mm

   Model 253

   Model 293

   Dimensions:

   c₁ = approx. 195 mm

   c₂ = approx. 172 mm

   c₃ = approx. 25 mm

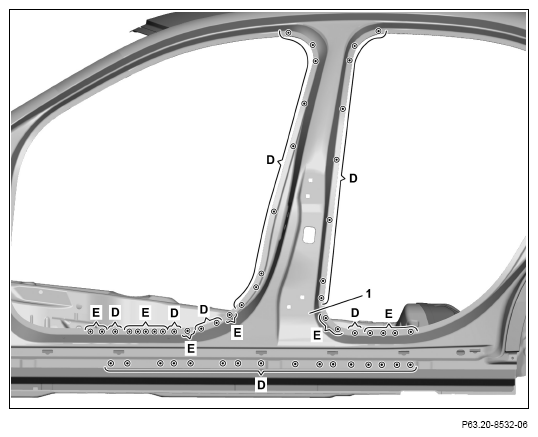

4. Expose spot welds on A-pillar paneling (1) and cut out (areas D and E).

   Cut out spot welds through two panel thicknesses (areas E).

   Courtesy of MERCEDES-BENZ USA

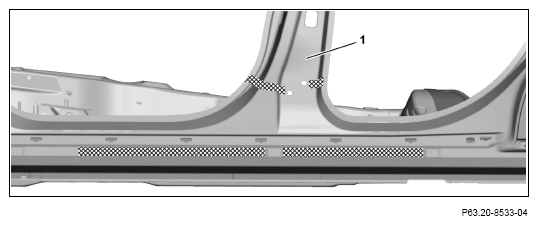

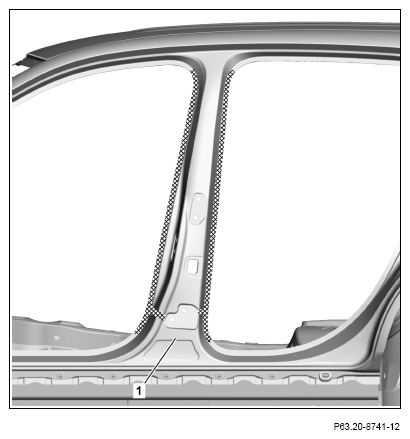

5. Model 205.0/1/2

   Heat B-pillar paneling (1) in crosshatched areas.

   Cross-hatched areas are bonded.

6. Model 205.0/1/2

   Remove B-pillar paneling (1).

   Courtesy of MERCEDES-BENZ USA

7. Model 253

   Model 293

   Heat B-pillar paneling (1) in crosshatched areas.

   Cross-hatched areas are bonded.

8. Model 253

   Model 293

   Remove B-pillar paneling (1).

   Courtesy of MERCEDES-BENZ USA

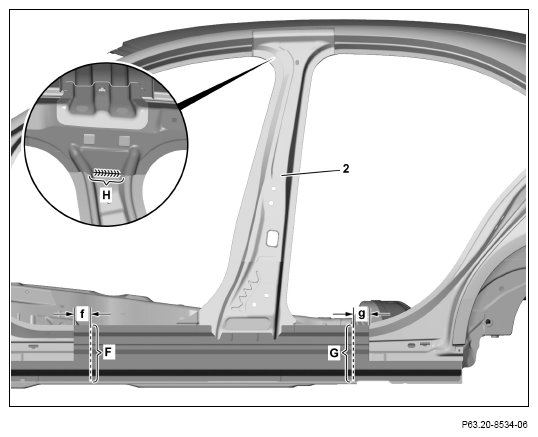

9. Mark separating points on B-pillar reinforcement (2) and cut (areas F and G).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   f = approx. 40 mm

   g = approx. 50 mm

10. Expose insert gas weld at B-pillar reinforcement (2) and cut (area H)

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

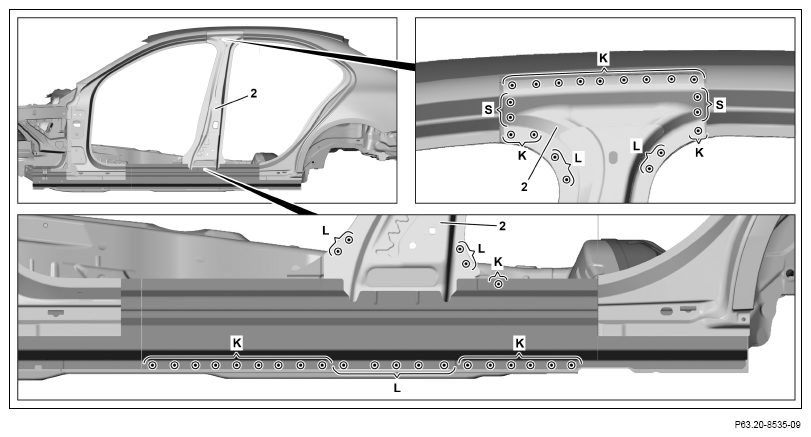

11. Expose spot welds on B-pillar reinforcement (2) and cut out (areas K and L).

    Cut out spot welds through two panel thicknesses (areas L).

12. Model 253

    Model 293

    Expose spot welds on B-pillar reinforcement (2) and cut out (areas S).

    Courtesy of MERCEDES-BENZ USA

13. Heat B-pillar reinforcement (2) in crosshatched areas.

    Cross-hatched areas are bonded.

    Cross-hatched areas are bonded.

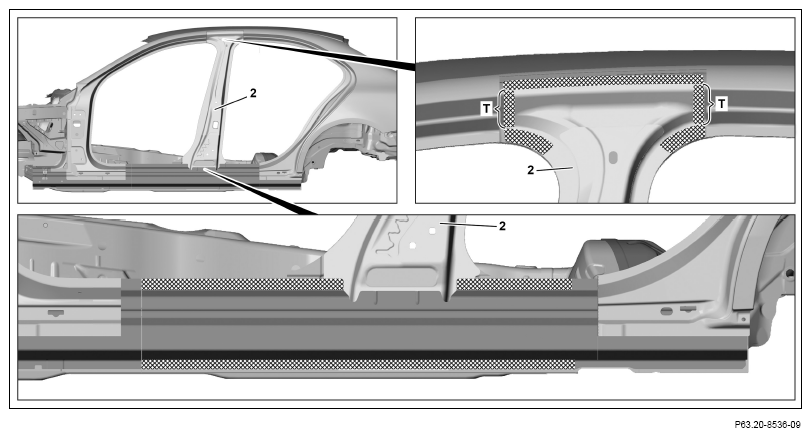

14. Model 253

    Model 293

    Heat B-pillar reinforcement (2) in crosshatched areas (areas T).

15. Remove B-pillar reinforcement (2).

    Courtesy of MERCEDES-BENZ USA

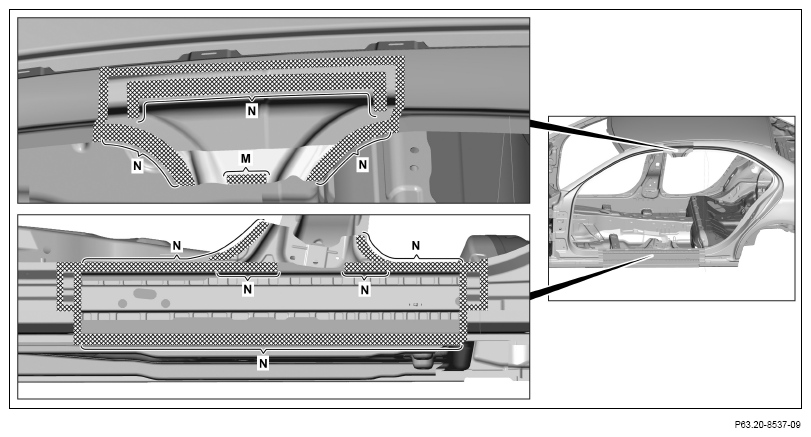

16. Grind mating surfaces down to bare metal in the crosshatched inner C-pillar sidewall.

    Sand down spot weld flanges to bare metal on both sides.

    Grind mating surfaces down to bare metal on inside (area M).

17. Remove grinding dust and drill chips.
18. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas N).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
