Prepare C-Pillar For Installation - Ar63.20-P-0500-02LW

MODEL 205.0/1

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

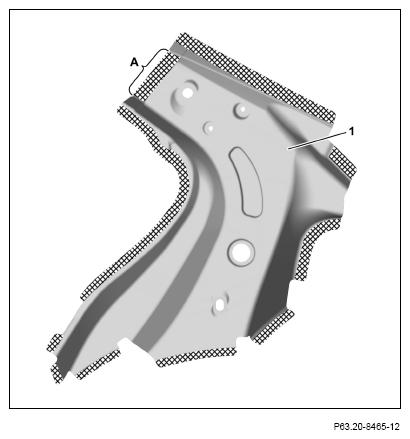

1. Grind mating surfaces on C-pillar (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (area A).

   Otherwise adhesion problems may occur. m Observe preliminary treatment of bonding surface.

   Courtesy of MERCEDES-BENZ USA

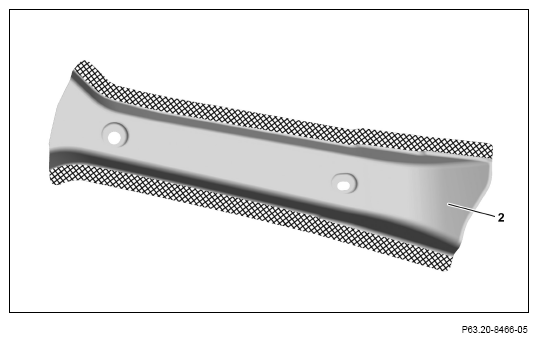

4. Grind mating surfaces on strut (2) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove grinding dust.
6. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
