Install Inner Sidewall With Outer Rear Wheel Well - Ar63.10-P-6051-03LWR

Model 205.4

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. Install inner side wall (1) and fit.
2. Install waist line reinforcement.
3. Install rear fender and fit.
4. Fix inner side wall (1) in place.
5. Remove rear fender.
6. Remove waist line reinforcement.

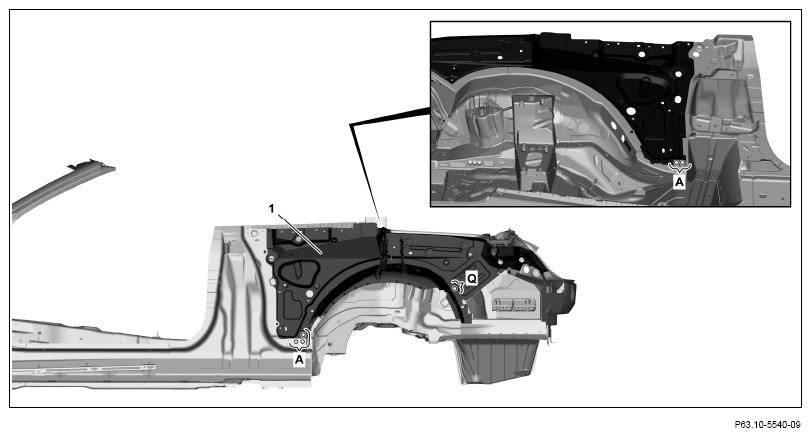

7. Drill rivet holes in inner side wall (1) with Ø 6.7 mm bit (areas A).
8. Drill rivet holes in inner side wall (1) with Ø 6.7 mm bit (area Q).

   Left side of vehicle.

   Courtesy of MERCEDES-BENZ USA

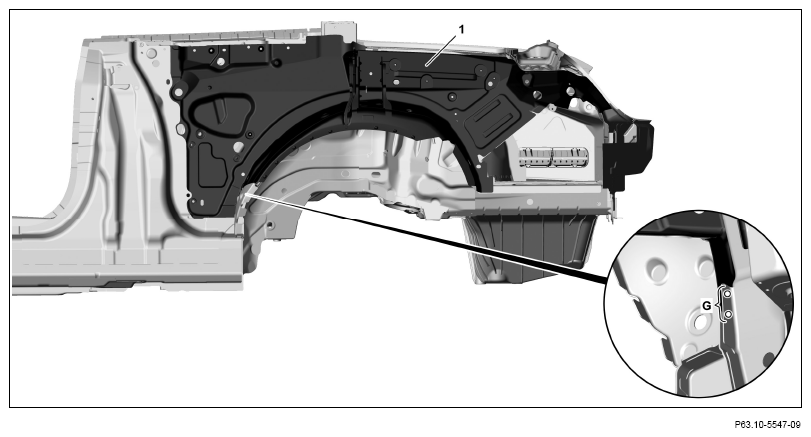

9. Drill holes for plug welding on inner side wall (1) with Ø 7 mm bit (area G).

   Drill holes through one panel thickness (area G).

10. Remove inner side wall (1).
11. Deburr rivet holes on inner side wall (1) and body on both sides.
12. Remove drilling chips.

    Courtesy of MERCEDES-BENZ USA

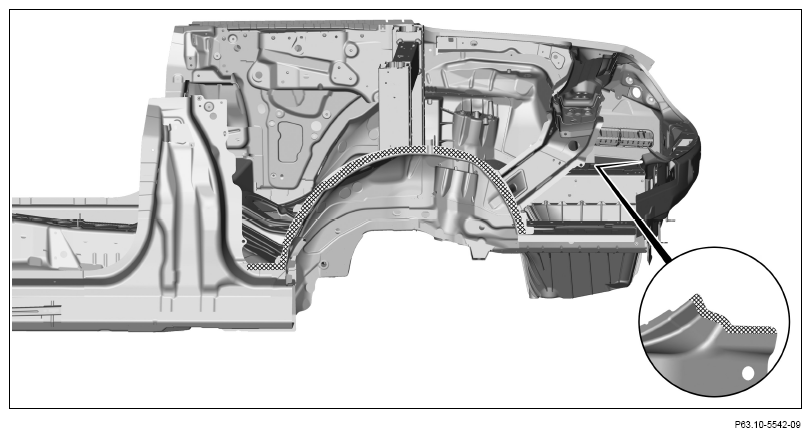

13. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

14. Install inner side wall (1) and fix in place.
15. 1. 15.1 Left side of vehicle.

       Rivet inner side wall (1) with Ø 6.4x12 rivet (area C).

       Clamping range 6.0 mm

    2. 15.2 Right side of vehicle.

       Inner side wall (1) (area C).

16. Rivet inner side wall (1) with Ø 6.5x12.5 rivet (area P).

    Clamping range 3.5 mm

17. Rivet inner side wall (1) with Ø 6.5x14.5 rivet (area D).

    Clamping range 2.4 mm

18. Rivet inner side wall (1) with Ø 6.4 rivet (area E).

    Clamping range 9.3 mm

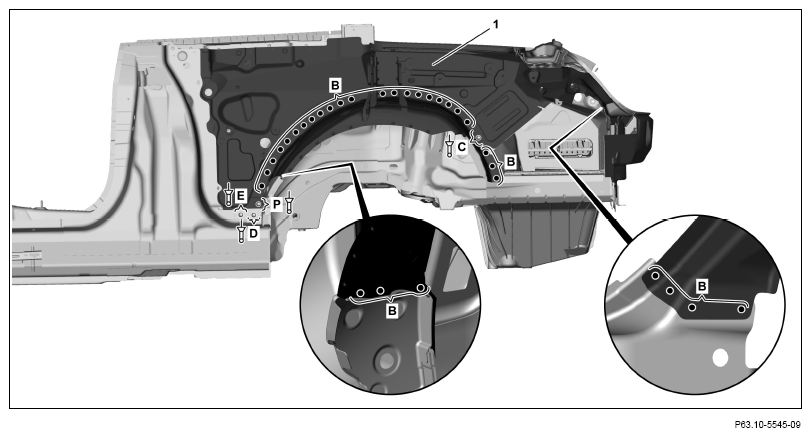

19. Inner side wall (1) (areas B).

    Courtesy of MERCEDES-BENZ USA

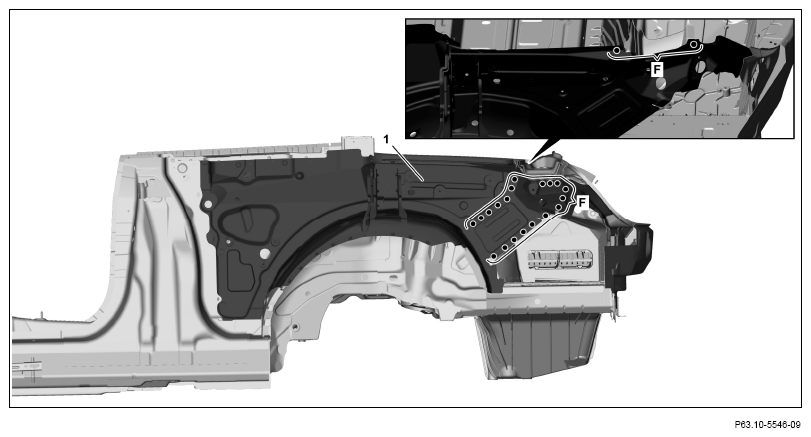

20. Inner side wall (1) (areas F).

    Courtesy of MERCEDES-BENZ USA

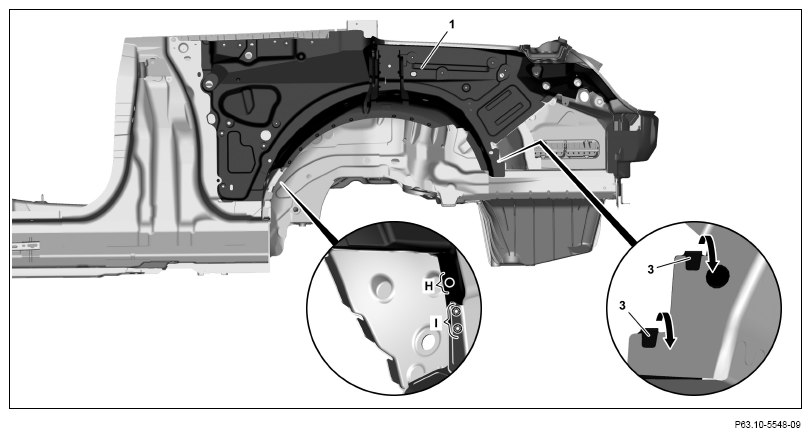

21. Inner side wall (1) (area H).
22. Inner side wall (1) (area I).
23. Turn over sheet metal tabs (3) on inner side wall (1).

    Courtesy of MERCEDES-BENZ USA

24. Rivet inner side wall (1) with Ø 6.5x14.5 rivet (area J).

    Clamping range 6 mm

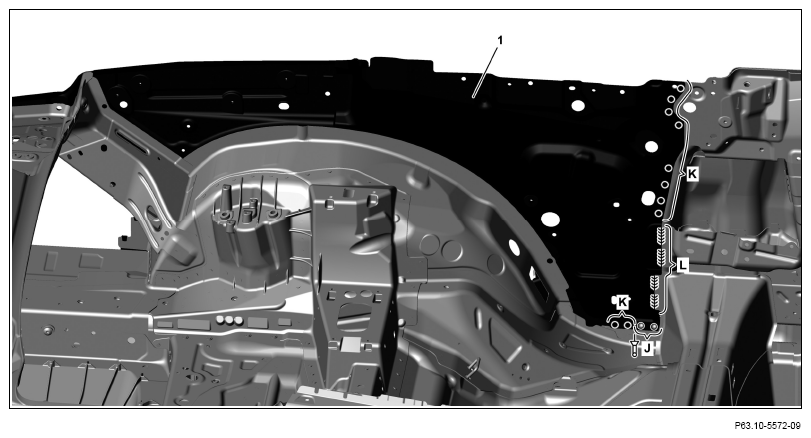

25. Inner side wall (1) (areas K).
26. Inner side wall (1) (area L).



    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

    Courtesy of MERCEDES-BENZ USA

27. Install strut (2) with portal bracket, fit and fix in place.

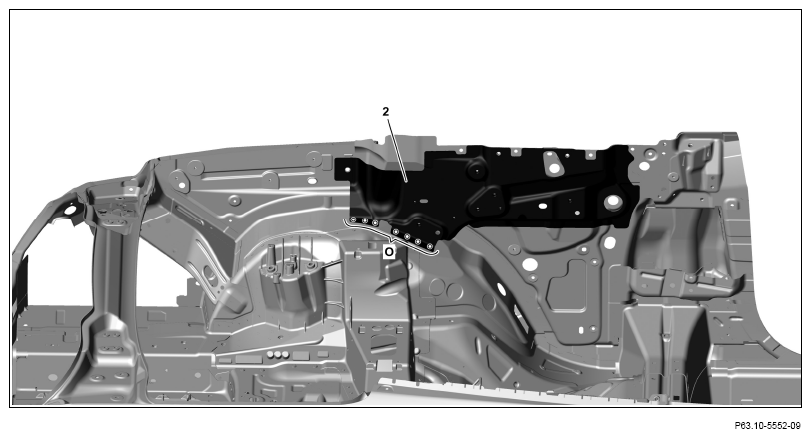

28. Drill rivet holes in strut (2) with Ø 6.7 mm bit (area O).
29. Remove strut (2).
30. Deburr rivet holes in strut (2) and body on both sides.
31. Remove drilling chips.
32. Coat insides of riveted joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

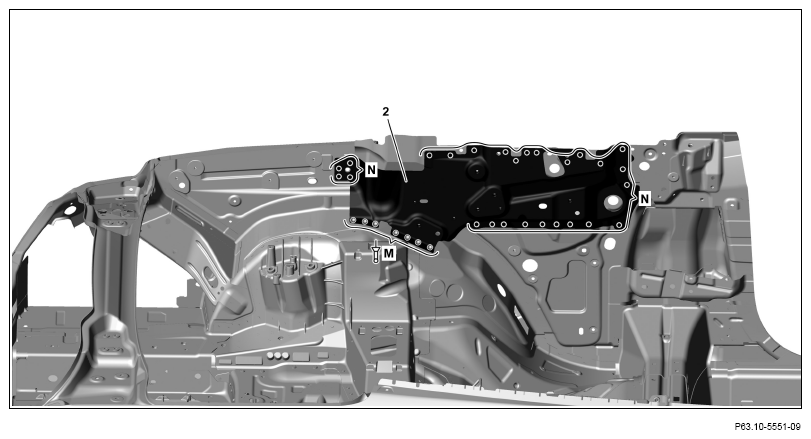

33. Install strut (2) with portal bracket, fit and fix in place.
34. Rivet strut (2) with Ø 6.4x12 rivet (area M).

    Clamping range 2.5 mm

35. Strut (2) (areas N).
36. Remove portal bracket.
37. Clean weld joints that are no longer accessible after installation of waist line reinforcement and fender, and coat with zinc dust paint.
