Remove Spare Tire Well - Ar64.20-P-1245-01LWR

Model 205.4, 238.4

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

Shown on model 205.4

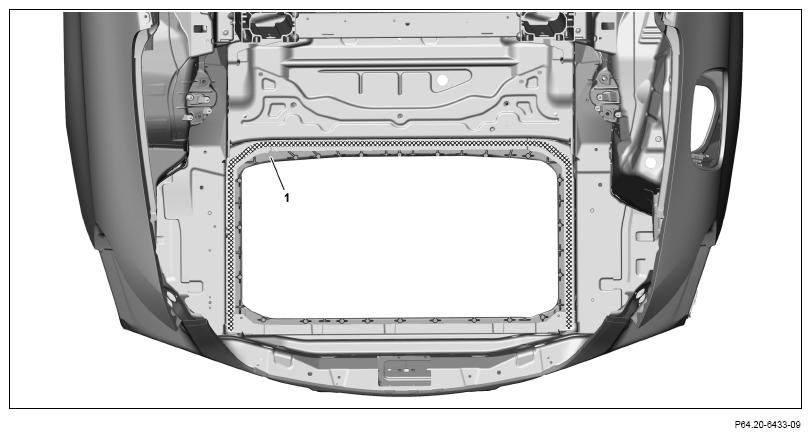

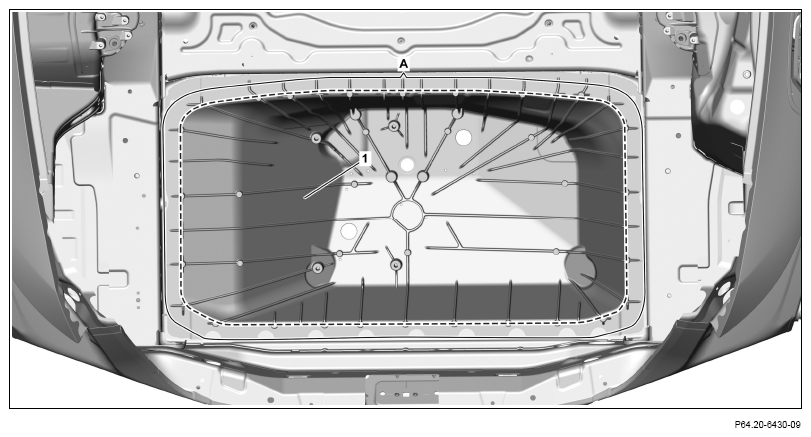

1. Mark separating point on front spare wheel well (1) and cut (area A).
2. Remove front spare wheel well (1).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.4

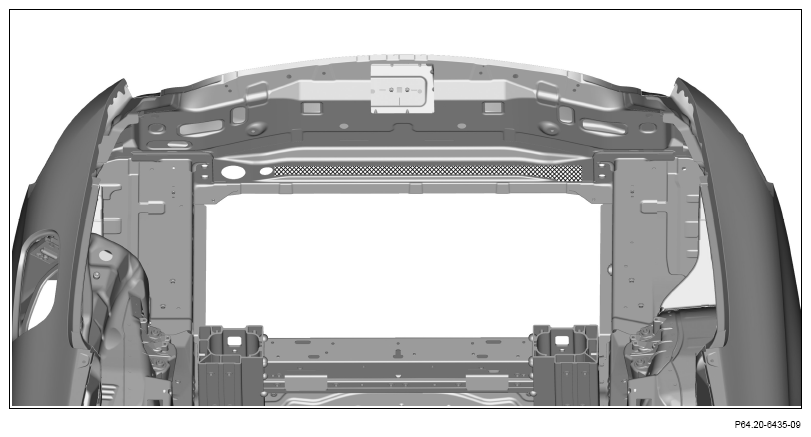

3. Expose spot welds on rear spare wheel well (2) and cut out (area B).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.4

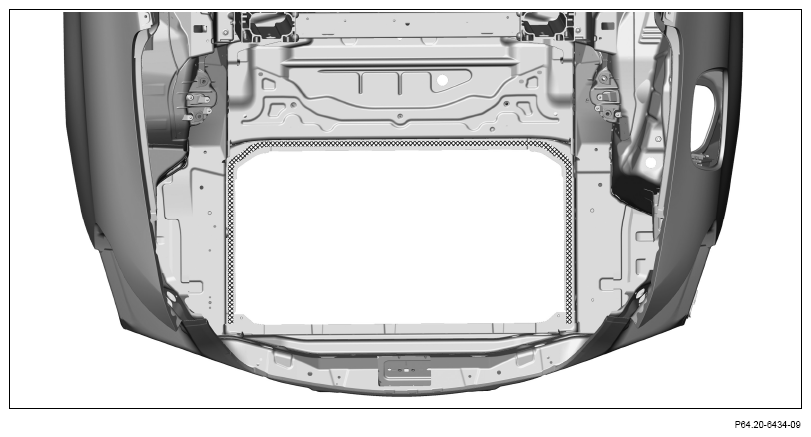

4. Expose spot welds on section of front spare wheel well (1) and cut out (area C).
5. Expose self-piercing riveting on the section of the front spare wheel well (1) and drill through with a diameter of 6 mm (area D).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.4

6. Heat section of front spare wheel well (1) in cross hatched area.

   Cross-hatched area is bonded.

7. Remove section of front spare wheel well (1).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.4

8. Grind mating surface down to bare metal in cross hatched area.
9. Remove grinding dust and drill chips.

   Observe preliminary treatment of bonding surface.

   Courtesy of MERCEDES-BENZ USA

   Shown on model 205.4

10. Grind mating surface down to bare metal in cross-hatched area on both sides.
11. Remove grinding dust and drill chips.
12. Apply zinc dust paint to inside of spot weld flanges.
