Install Welding Device - Ar62.20-P-1286-05LW

Model 205

Model 213

Model 238

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Model 205

Use set of welding device (205 589 00 23 00).

Model 253.

Model 293

Set welding device (253 589 00 23 00).

Model 213, 238

Use set of adapters (213 589 00 23 00) only in combination with carrier plate from set welding device (253 589 00 23 00).

Courtesy of MERCEDES-BENZ USA

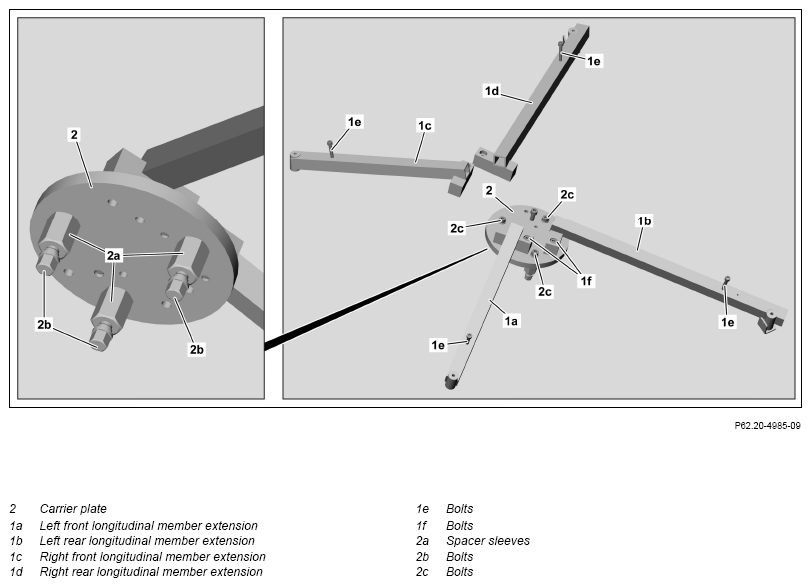

The following parts of the welding device are required:

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle with suspension strut installed

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle with suspension strut removed

1. Unscrew nuts (3).

   With suspension strut installed.

   1. 2.1 With suspension strut installed.

      Unscrew spacers sleeves (2a) on threaded pins f suspension turret web.

   2. 2.2 With suspension strut removed.

      Install spacers sleeves (2a) on suspension strut tower with bolts (2b).

      Tighten bolts (2b) slightly by hand.

2. Install base plate (2) on spacer sleeves (2a).
3. Lightly screw bolts (2c) into spacer sleeves (2a) by hand.
4. Screw left front longitudinal member extension (1a) with bolt (1f) to carrier plate (2).
5. Screw left rear longitudinal member extension (1b) with bolt (1f) to carrier plate (2).
6. Tighten bolts (2b).

   With suspension strut removed.

7. Tighten bolts (2c).
8. Tighten left front longitudinal member extension (1a) to longitudinal member with bolt (1e).
9. Tighten left rear longitudinal member extension (1a) to longitudinal member with bolt (1e).
