(Replace Brake Fluid - AP42.00-P-4280F)
Model 167
Shown on model 167.119
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove | |||

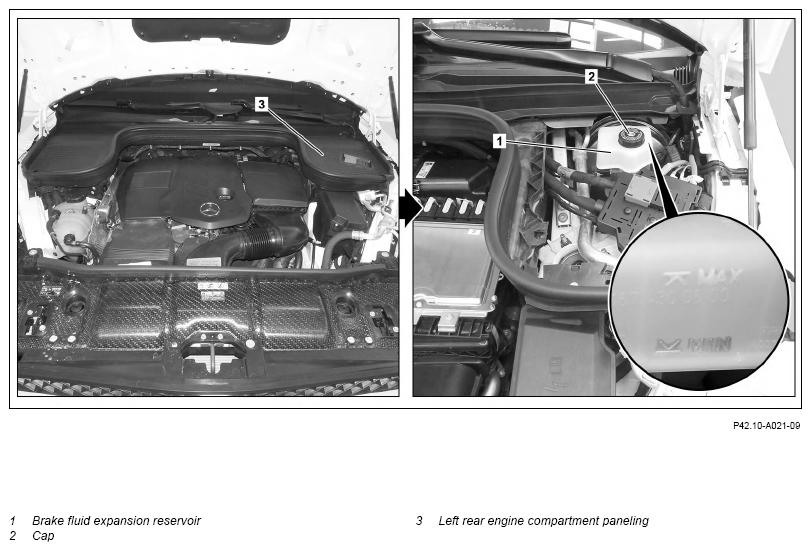

| 1 | Remove left rear engine compartment trim (3). | ||
| Clean | |||
| 2 | Clean area of cap (2) and brake fluid expansion reservoir (1). | ||
| Remove | |||
| 3 | Unscrew cap (2). | ||
| 4 | Suction brake fluid out of brake fluid expansion reservoir (1). | ||
| 5 | Fill new brake fluid up to maximum mark in brake fluid expansion reservoir (1). | ||
| 6 | Connect filler/bleeder unit to brake fluid expansion reservoir (1) and switch on. | Note operating instructions for filling and bleeding unit. Damage can otherwise occur. |
|
| Change fluid | |||
| 7 | Lift vehicle with lifting platform. | ||
| AR00.60-P-1006A | |||
| 8 | Renew brake fluid. | ||
| General brake fluid | BB00.40-P-0330-01A | ||
| Brake fluids (DOT 4 plus) | BB00.40-P-0331-00A | ||
New brake fluid must escape without any bubbles via the bleed hose. Damage can otherwise occur. |
AR42.10-P-0010-02MFA | ||
| *BA42.10-P-1001-10L | |||
↓ Remove/install wheel and tire assembly. |
*BA42.10-P-1001-12L | ||
| Check | |||
| 9 | Check brake system for leaks. | ||
| Install | |||
| 10 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1006A | |||
| 11 | Disconnect filling and bleeding unit. | ||
| Check | |||
| 12 | Check fluid level in brake fluid expansion reservoir (1). | AP42.10-P-4210E | |
| Install | |||
| 13 | Screw on cap (2). | ||
| 14 | Install left rear engine compartment trim (3). |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA42.10-P-1001-10L | Bleed screw at brake caliper | Nm | 18 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA42.10-P-1001-12L | Bleed screw to brake caliper | Nm | 11 |
