Trailer Recognition Control Unit Wiring Diagram - PE31.19-P-2101-97FBB
Model 205 as of model year 2019 with code 550 (Trailer coupling) Control unit N28/1
| Code: | Designation: | Position: |
|---|---|---|

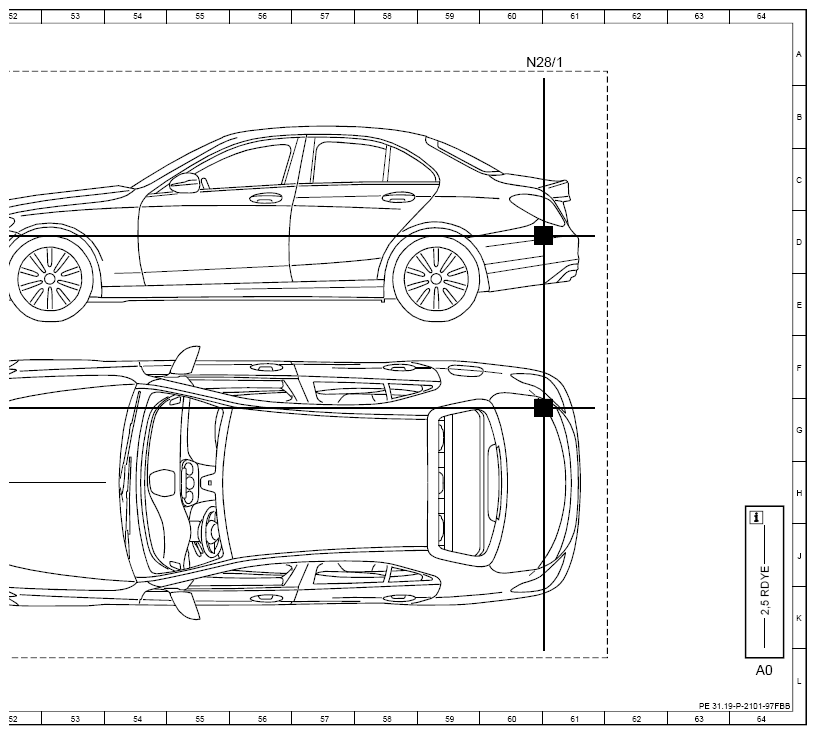

| A0 | Use of wiring diagrams | 64L |
| A63 | Trailer hitch release | 17L |
| CAN B | Interior CAN | 31K |
| Code FA | CABRIOLET | 33G |
| Code FC | COUPE | 34F |
| Code FS | STATION WAGON | 36F |
| Code FW | SEDAN | 33F |
| K40/5 | Rear fuse and relay module | 11L |
| K40/5f444 | Fuse 444 | 8L |
| K40/5f445 | Fuse 445 | 5L |
| K40/5f446 | Fuse 446 | 7L |
| K40/5f447 | Fuse 447 | 10L |
| K40/5f448 | Fuse 448 | 6L |
| N10/8 | Rear SAM control unit | 30L |

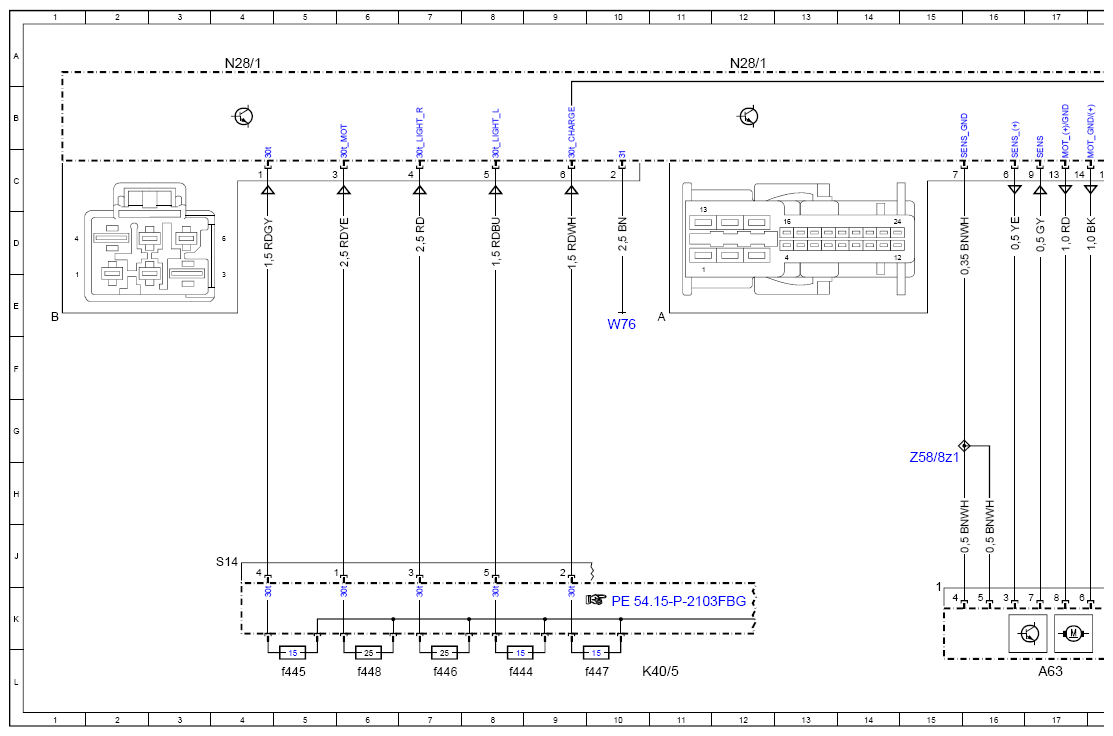

| N28/1 | Trailer recognition control unit | 4A |
| N28/1 | Trailer recognition control unit | 12A |
| N28/1 | Trailer recognition control unit | 28A |

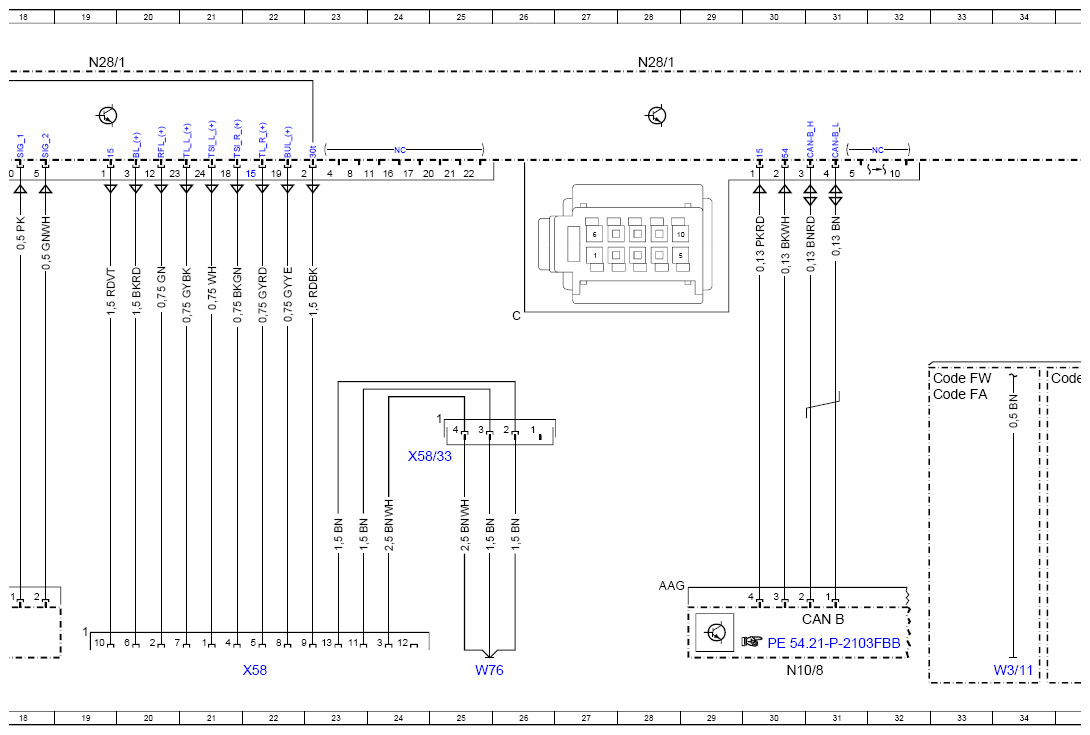

| N28/1 | Trailer recognition control unit | 19A |

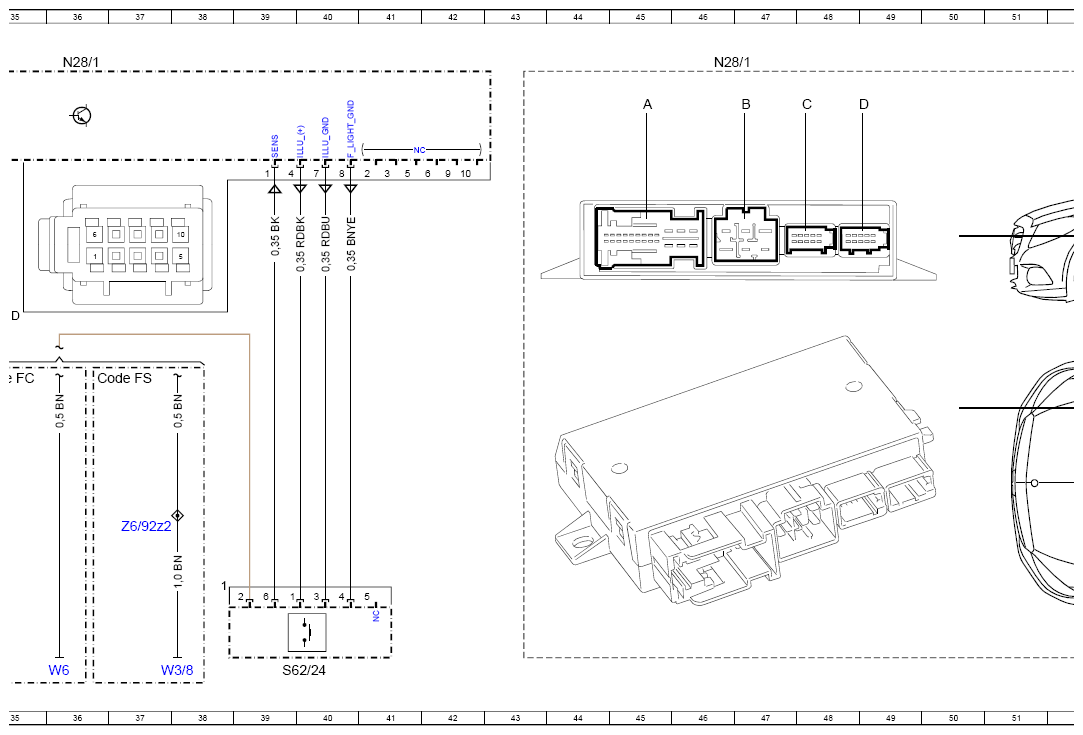

| N28/1 | Trailer recognition control unit | 36A |
| N28/1 | Trailer recognition control unit | 46A |
| N28/1 | Trailer recognition control unit | 60A |
| S62/24 | Trailer hitch release switch | 39L |
| W3/11 | Left rear wheel well ground point | 34L |
| W3/8 | Right rear wheel well ground point | 37L |
| W6 | Left wheel arch trunk ground point | 36L |
| W76 | Fuel pump ground point | 25L |
| W76 | Fuel pump ground point | 10E |
| X58 | Trailer socket | 22L |
| X58/33 | Vehicle interior/trailer hitch electrical connector | 25H |
| Z58/8z1 | Trailer hitch circuit 31 connector sleeve | 15G |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 37J |
