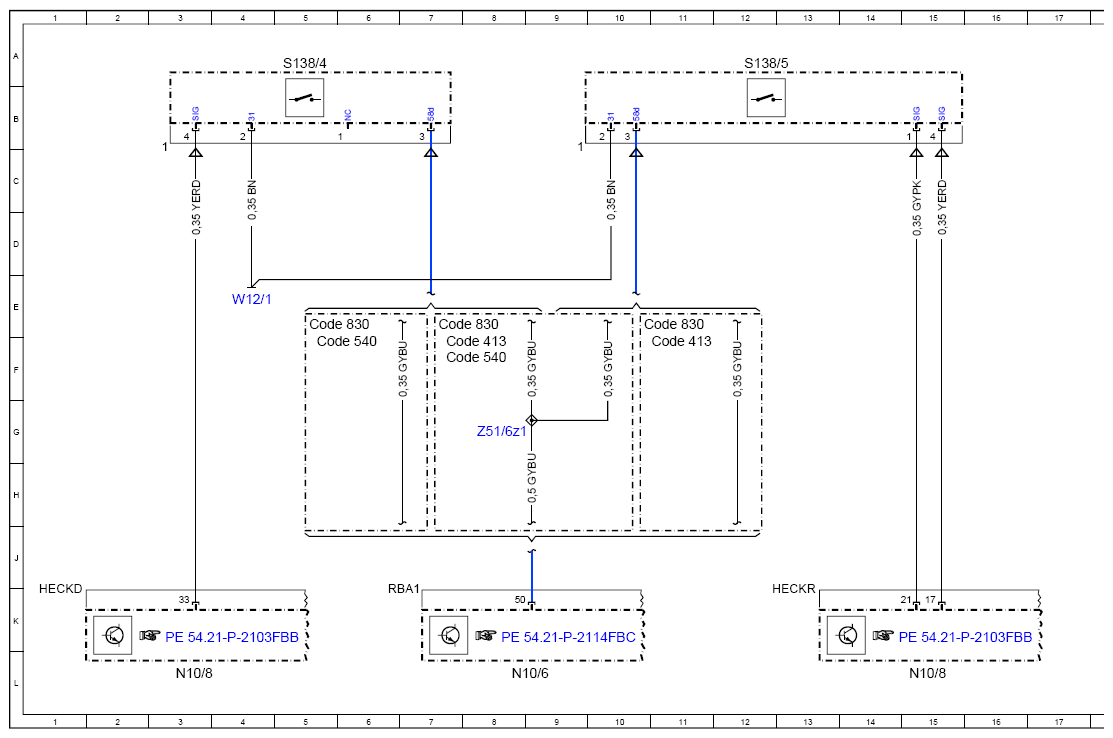

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97FBC
Model 205
as of model year 2019
with code 413 (Panoramic Sliding Sunroof/Glass Roof)
with code 540 (Electric Roller Blind For Rear Window)
with code 830 (China Version)
| Code: | Designation: | Position: |
|---|---|---|

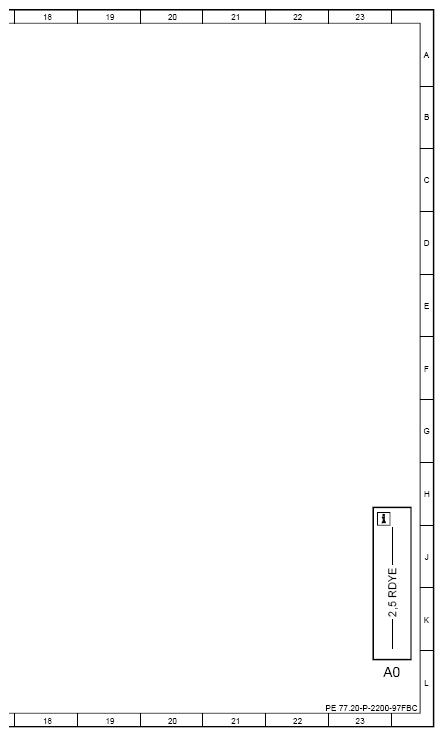

| A0 | Use of wiring diagrams | 23L |
| Code 413 | Panoramic Sliding Sunroof | 7F |
| Code 413 | Panoramic Sliding Sunroof | 11F |
| Code 540 | Electric roller sun blind for rear window | 5F |
| Code 540 | Electric roller sun blind for rear window | 7F |
| Code 830 | Additional Parts For China Vehicles | 5E |
| Code 830 | Additional Parts For China Vehicles | 7E |
| Code 830 | Additional Parts For China Vehicles | 10E |
| N10/6 | Front SAM control unit | 8L |
| N10/8 | Rear SAM control unit | 3L |
| N10/8 | Rear SAM control unit | 15L |
| S138/4 | Rear window roller sun blind button | 5A |
| S138/5 | Panoramic Sliding Sunroof roller sun blind button | 12A |
| W12/1 | Right center console ground point | 4E |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 8G |
