Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97FBA
Model 205
up to model year 2019
with code 413 (Automatic Panoramic Sliding Sunroof)
Control Unit A98
Model 253 (except 253.99)
up to model year 2020
with code 413 (Automatic Panoramic Sliding Sunroof)
Control Unit A98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |

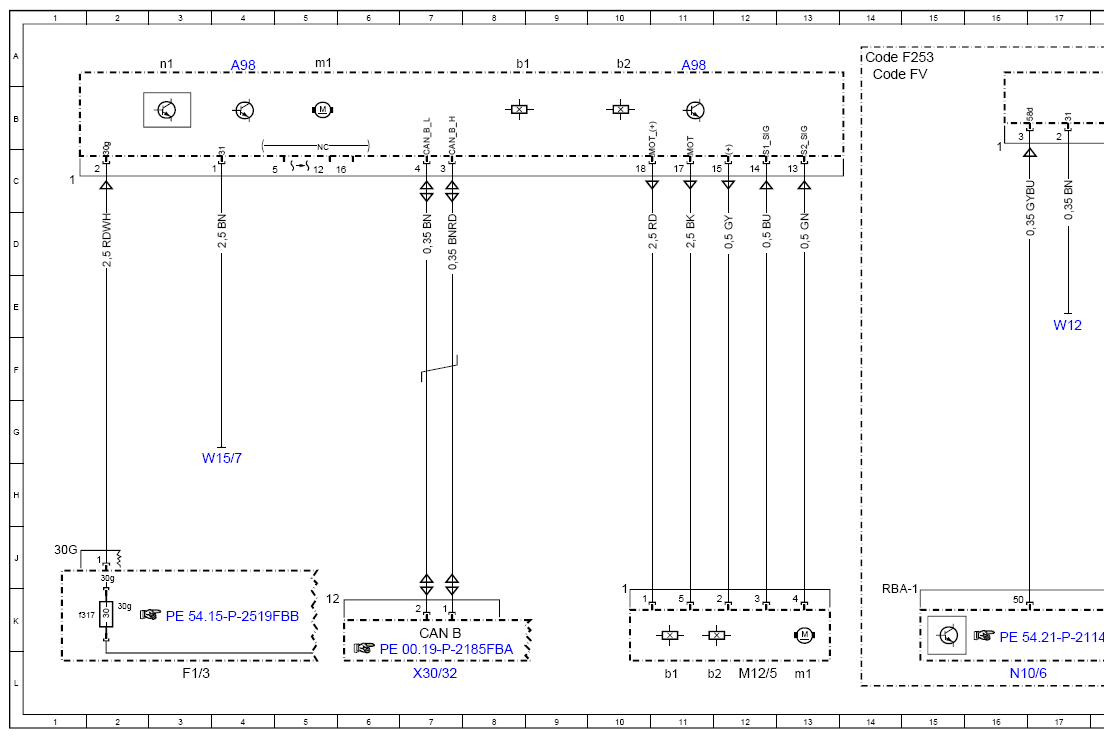

| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 11A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 8A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 10A |
| A98m1 | Panoramic sliding roof motor | 5A |
| A98n1 | Panoramic sliding roof control unit | 3A |
| CAN B | Interior CAN | 7K |
| Code F253 | Model SERIES 253 | 14A |
| Code FV | LONG SEDAN | 14A |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f317 | Fuse 317 | 1K |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 12L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 11L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 11L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 13L |
| N10/6 | Front SAM control unit | 16L |
| N10/8 | Rear SAM control unit | 20L |

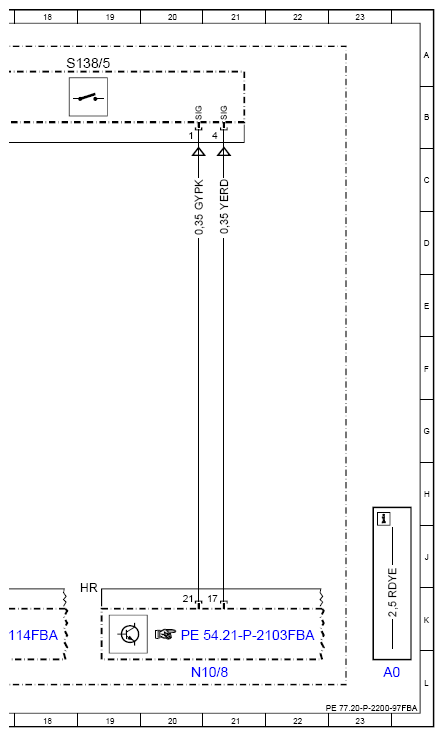

| S138/5 | Panoramic Sliding Sunroof roller sun blind button | 19A |
| W12 | Ground point (center console) | 17E |
| W15/7 | Right front footwell ground point | 4G |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 7L |
