Remove/Install Trunk Lid Handle - AR88.50-P-5062LF
Model 205.0/1
Model 213.0/1
Model 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, Trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on Sensor System For Trunk lid Opening/Closing | Model 205.0/1 with code P17 (KEYLESS-GO package) Model 213.0/1 with code P17 (KEYLESS-GO package) Model 222 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove | |||
| 1 | Remove license plate with license plate number | ||
| 2 | Mask hatched area (arrow C) on Trunk lid (2) | ||

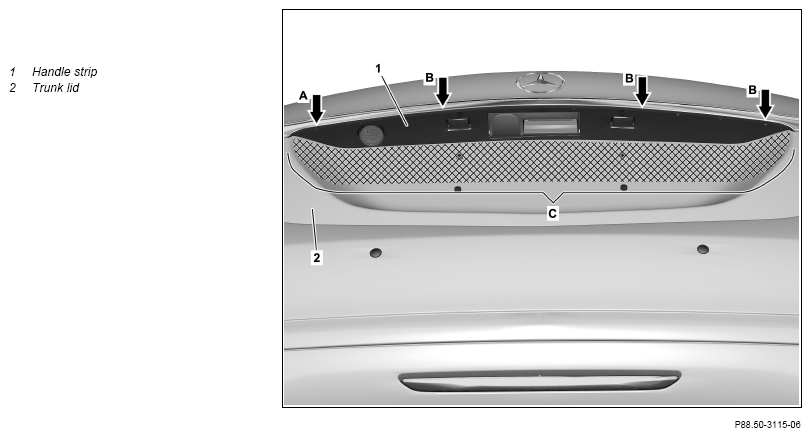

| 3 | Pull handle strip (1) out of trim piece with extraction hook (arrow A) | Then the adhesive piece (4) is loosened simultaneously in this area. Extraction hook |
Fig 3 |

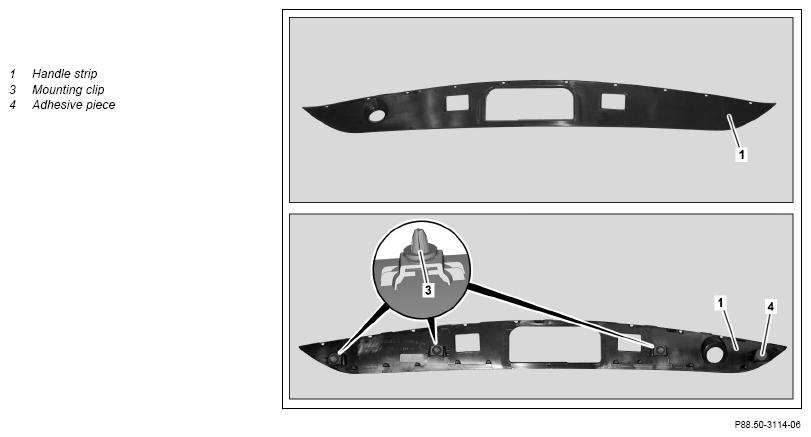

| 4 | Unclip handle strip (1) from trim piece (arrows B) | Mounting wedge |
Fig 2 |
| 5 | Unclip retaining clips (3) and remove handle strip (1) | Replace damaged retaining clip (3). |
|
Mounting wedge |
Fig 2 | ||
| Install | |||
| 6 | Remove adhesive from Trunk lid (2) and clean bonding surfaces | Bonding surface must be free of grease and dust. Observe flash-off time for cleaning agent. Cleaner |
*BR00.45-Z-1025-04A |
| 7 | Remove adhesive residues from handle strip (1) | When reusing handle strip (1). Bonding surface must be free of grease and dust. Observe flash-off time for cleaning agent. Cleaner |
*BR00.45-Z-1025-04A |
| 8 | Install new adhesive piece (4) on handle strip (1) | When reusing handle strip (1). | |
| Adhesive tape | *BR00.45-Z-1022-02A | ||
| 9 | Position handle strip (1) on Trunk lid (2) and clip in | ||
| 10 | Press on handle strip (1) in area of adhesive piece (4) | ||
| 11 | Remove adhesive tape from hatched area (area C) | ||
| 12 | Remove license plate number with license plate bracket |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1022-02A | Adhesive tape | A 005 989 70 85 |
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
