Remove Longitudinal Member Outer Shell On Entrance - Ar63.30-P-1102-01LW

Model 205.0/1/2

Model 253

Model 293

The following operation steps are shown on the left side of the vehicle on model 205.0 and must be performed analogously on the right side in the event of damage.

The longitudinal member outer shell can be separated at the specified separating points by observing the foam parts and reinforcement. Observe standard series production joining and bonded connections.

Courtesy of MERCEDES-BENZ USA

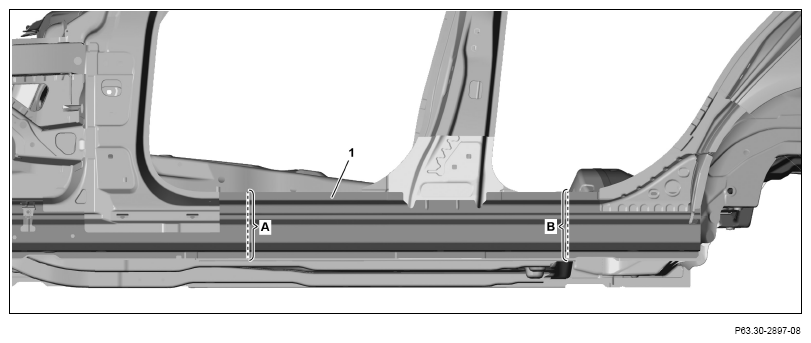

1. Mark separating point on longitudinal member outer shell (1) and cut (area A).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Mark separating point along Y-marking (area A).

2. Mark separating point on longitudinal member outer shell (1) and cut (area B).

   If longitudinal member outer shell (1) is only replaced partially.

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   The separation point is freely selectable (area B) according to the degree of damage taking into account the foam parts and reinforcements in the longitudinal member outer shell (1).

   Courtesy of MERCEDES-BENZ USA

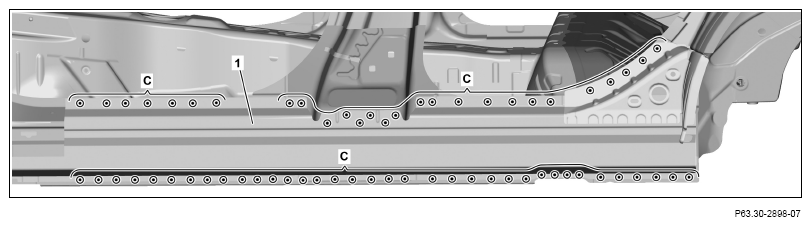

3. Expose spot welds on longitudinal member outer shell (1) and cut out (areas C).
4. Expose spot welds on longitudinal member outer shell (1) and cut out (areas Di and E).

   Cut out spot weld through two panel thicknesses (area E).

5. 1. 5.1 Model 205.0/1/2

      Expose spot welds on longitudinal member outer shell (1) and cut out (area D).

   2. 5.2 Model 253

      Model 293

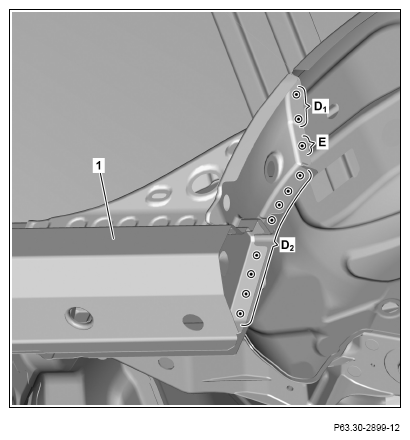

      Expose MIG solder seams and cut (area D>).

      MIG solder seams are present instead of spot welds (area D₂ ).

      Courtesy of MERCEDES-BENZ USA

      Courtesy of MERCEDES-BENZ USA

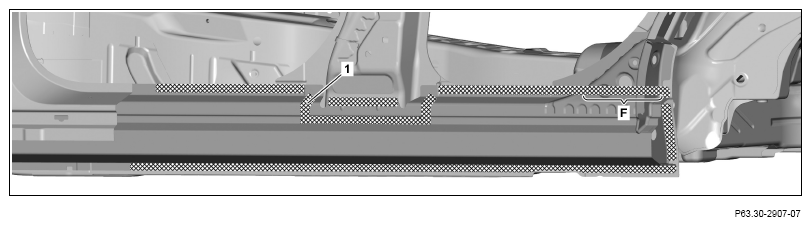

6. Heat longitudinal member outer shell (1) in crosshatched areas.

   Heat bonding surface (area F) through hole in longitudinal member outer shell (1).

   Cross-hatched areas are bonded.

7. Remove outer longitudinal member shell (1).

   Courtesy of MERCEDES-BENZ USA

8. Grind mating surfaces down to bare metal in the crosshatched inner C-pillar sidewall.

   Sand down spot weld flanges to bare metal on both sides.

9. Remove grinding dust and drill chips.
10. Coat insides of spot weld flanges with zinc dust paint.

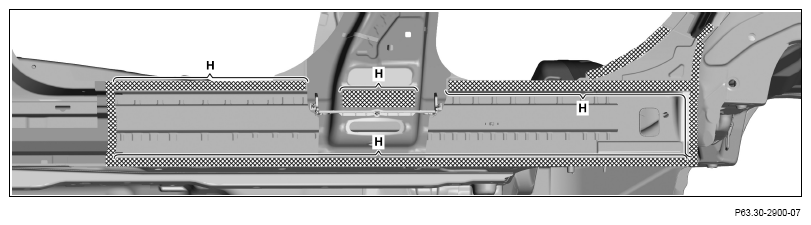

    Do not coat bonding surfaces with zinc dust paint (areas H).

    Otherwise adhesion problems may occur.
