Partially Prepare Main Floor Panel For Installation - Ar63.40-P-1180-26LW

Model 205

Model 253

Model 293

The following operation steps are shown on component parts on the left side of the vehicle on model 205.0 and must be similarly performed on the right side of the vehicle in the event of damage. The superordinate service document as well as the safety information in the service document must be observed.

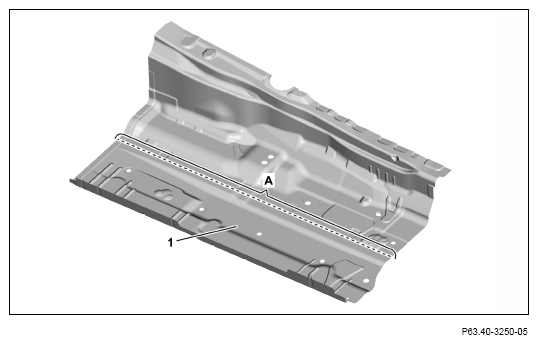

1. Mark separating on main floor (1) and cut (area A).

   Transfer separating point from vehicle and observe overlap of approx. 20 mm.

   Courtesy of MERCEDES-BENZ USA

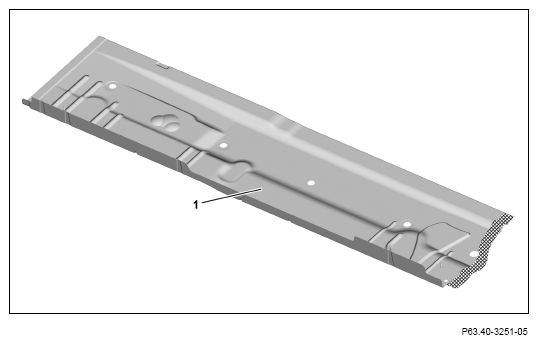

2. Grind mating surface on main floor (1) down to bare metal in crosshatched area.
3. Remove grinding dust.

   Observe preliminary treatment of bonding surface.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

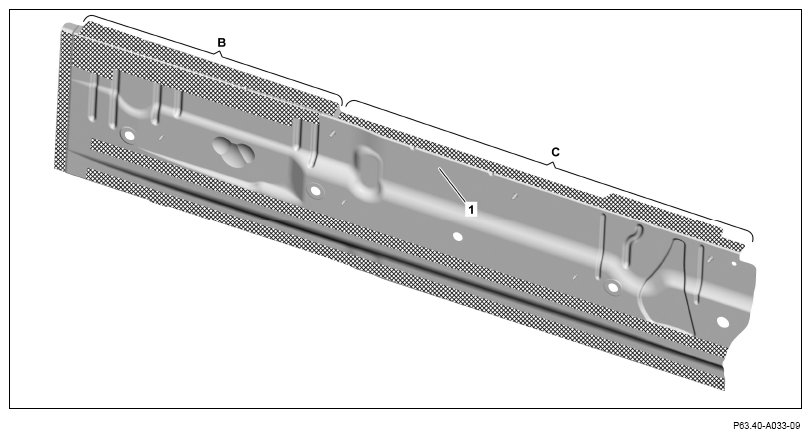

4. Grind mating surfaces on main floor (1) down to bare metal in cross-hatched areas.

   Model 253, 293

   Grind mating surface down to bare metal (area B).

5. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

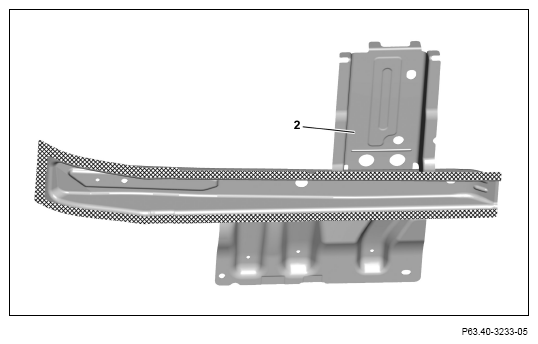

6. Grind mating surface on connecting carrier (2) down to bare metal in crosshatched area.
7. Remove grinding dust.

   Observe preliminary treatment of bonding surface.

   Courtesy of MERCEDES-BENZ USA

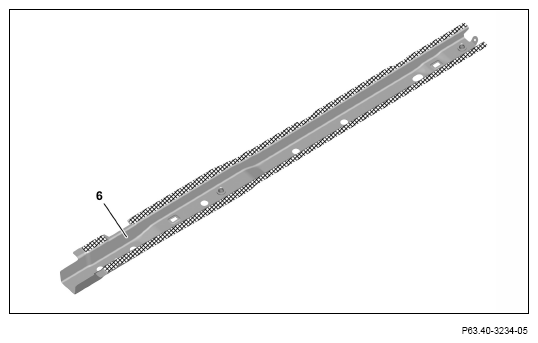

8. Grind mating surfaces on bottom longitudinal member (6) down to bare metal in crosshatched areas.
9. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

10. Model 205.4

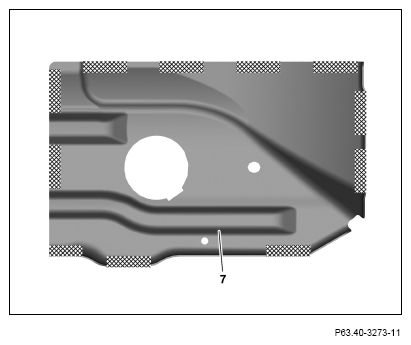

    Grind mating surfaces on reinforcement (7) down to bare metal in crosshatched areas.

11. Model 205.4

    Remove grinding dust.

    Courtesy of MERCEDES-BENZ USA
