Prepare Rear Wheel Well Section For Installation - Ar63.10-P-0662-02LF

Model 205

Model 213

Model 217

Model 222

Model 253

Model 293

The following operation steps are shown on the left side of the vehicle on model 222 and must be performed in the same way on the right side in the event of damage.

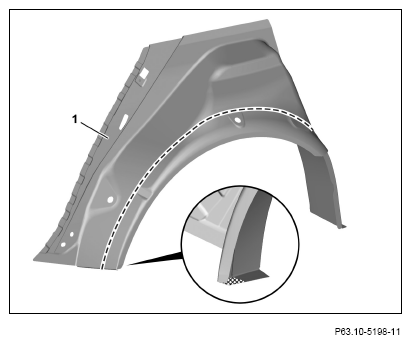

1. Mark separating point on outer rear wheel well (1) and cut.

   Transfer separation point from vehicle and add approx. 2 cm for overlap.

2. Remove remaining piece from outer rear wheel well (1).
3. Grind mating surface on outer rear wheel well (1) down to bare metal in cross-hatched areas.
4. Remove grinding dust.
5. Apply zinc dust paint to inside of spot weld flange.

Courtesy of MERCEDES-BENZ USA
