Cut Off A-Pillar - Ar63.20-P-1100-01CLW

Model 205.3

The next steps are shown on the left side of the vehicle and must be performed in the same way in the event of damage on the right side of the vehicle.

Further information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

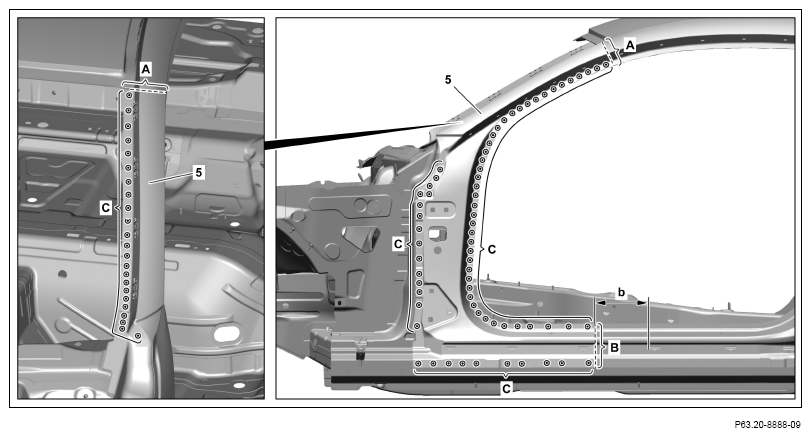

1. Mark separating point on A-pillar paneling (5) and cut (areas A and B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   b = approx. 170 mm

   Set separation point (area A) at bottom edge of roof frame.

2. Expose spot welds on A-pillar paneling (5) and cut out (areas C).

   Joint spot welds of the A-pillar paneling (5) and A-pillar reinforcement (6) must be cut out through two panel thicknesses.

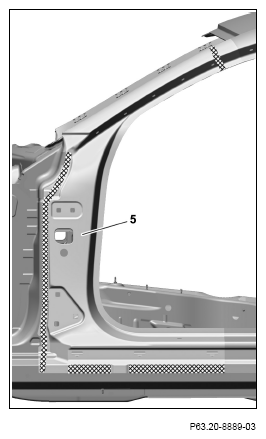

3. Heat A-pillar paneling (5) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

4. Remove A-pillar paneling (5).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

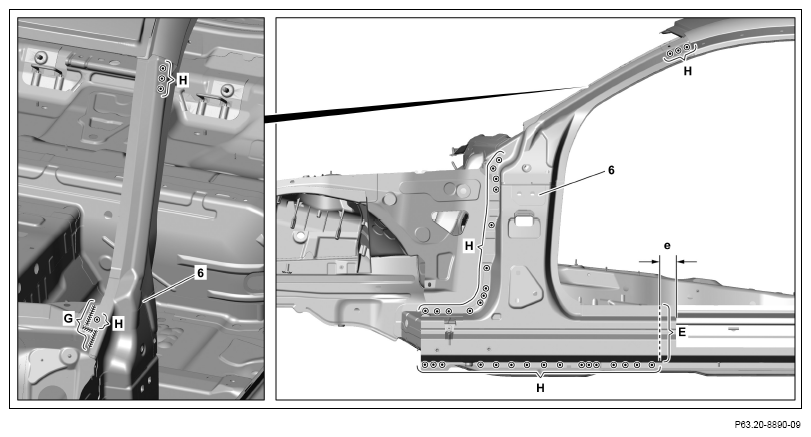

5. Mark separating point on A-pillar reinforcement (6) and cut (area E).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   e = approx. 50 mm

6. Expose MIG solder seam on A-pillar reinforcement (6) and cut (area G).
7. Expose spot welds on A-pillar reinforcement (6) and cut out (areas H).

   Joint spot welds of the A-pillar reinforcement (6) and A-pillar inner panel (7) must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

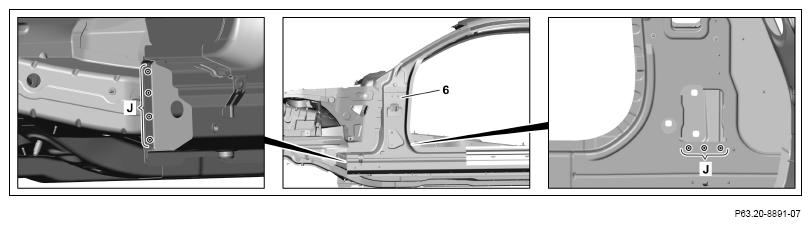

8. Expose spot welds on A-pillar reinforcement (6) and cut out (areas J).

   Courtesy of MERCEDES-BENZ USA

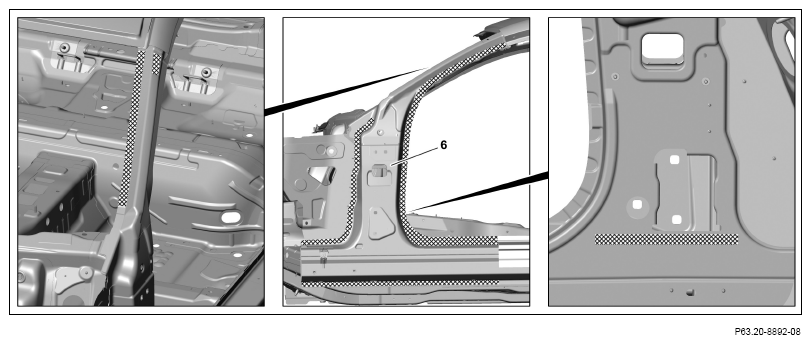

9. Heat A-pillar reinforcement (6) in cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

10. Remove A-pillar reinforcement (6).

    Courtesy of MERCEDES-BENZ USA

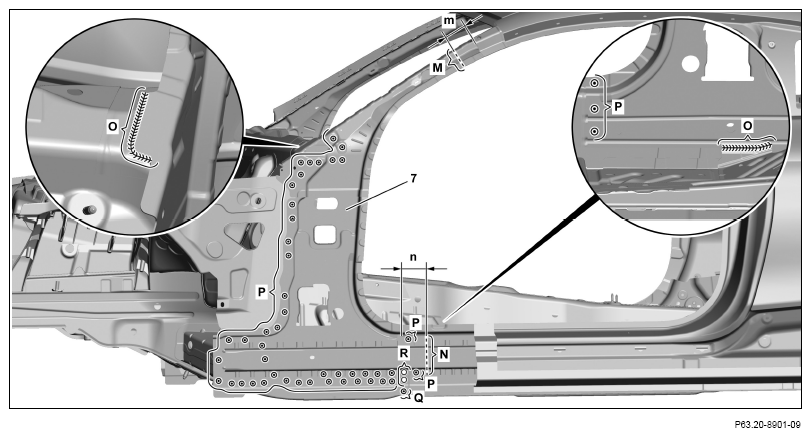

11. Mark separating points on A-pillar inner panel (7) and cut (areas M and N).

    Do not make the cuts too deep.

    Otherwise the components below can be damaged and weakened.

    Dimensions:

    m = approx. 40 mm

    n = approx. 40 mm

12. Expose MIG solder seams on the A-pillar inner panel (7) and cut (areas O).
13. Expose spot welds on A-pillar inner panel (7) and cut out (areas P and Q).

    Cut spot welds on inside (area Q).

14. Expose spot welds on A-pillar inner panel (7) ad drill with Ø 6.5 mm (area R).

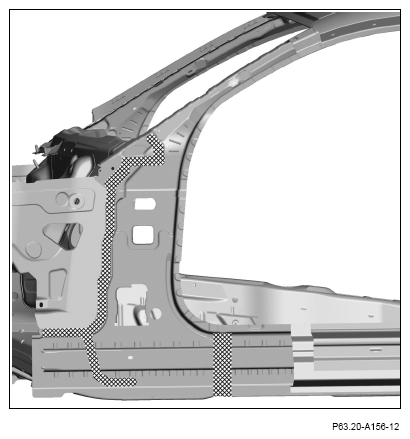

15. Heat A-pillar inner panel (7) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

16. Remove A-pillar inner panel (7).

    Courtesy of MERCEDES-BENZ USA

17. Grind mating surfaces down to bare metal in crosshatched areas.

    Sand down spot weld flanges to bare metal on both sides.

18. Remove grinding dust and drill chips.

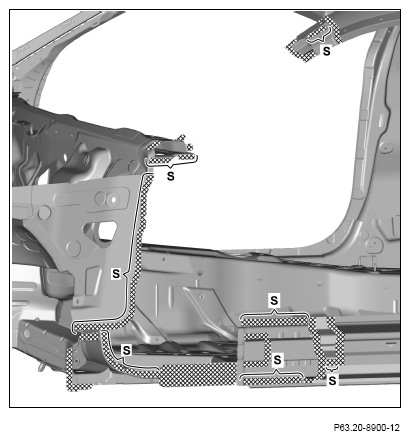

19. Apply zinc dust paint to insides of spot weld flanges. onto connecting flanges that are no longer accessible after installing side roof paneling.

    Do not coat bonding surfaces with zinc dust paint (areas S).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.
