Remove/Install Roll Bar Mount - Ar64.20-P-0003LWR
Model 205.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A . | |

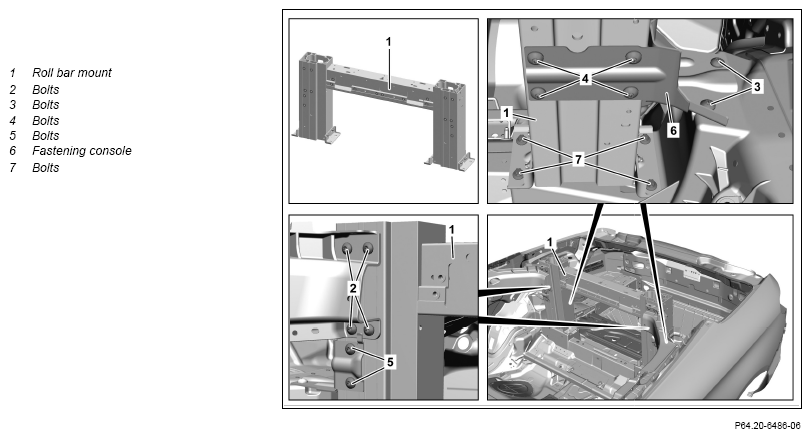

| Remove/install | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Unscrew bolts (2) on left and right side of vehicle | *BA64.10-P-1001-01D . | |
| 3 | Unscrew bolts (3, 4, 5) on left and right front mounting console (6) and remove mounting consoles (6) | *BA64.20-P-1002-02A . | |
| 4 | Unscrew bolts (7) on left and right side of vehicle | *BA64.20-P-1001-02A . | |
| 5 | Remove rollbar mount (1) from vehicle | ||
| 6 | Install in the reverse order |
REAR PANEL TORQUE SPECIFICATIONS (Model 205.4)
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA64.10-P-1001-01D | Bolt, connecting panel to body | Nm | 20 |
ROLL BAR MOUNT TORQUE SPECIFICATIONS (Model 205.4)
| Number | Designation | Model 205.4 | ||
|---|---|---|---|---|
| BA64.20-P-1001-02A | Screw/bolt, roll bar mount to longitudinal member | Stage 1 | Nm | 18 |
| Stage 2 | Nm | 25 | ||
| Stage 3 | losen ca. 180° | |||
| Stage 4 | Nm | 25 | ||
ROLL BAR MOUNT TORQUE SPECIFICATIONS (Model 205.4)
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA64.20-P-1002-02A | Screw/bolt, mounting bracket to roll bar mount/body | Nm | 20 |
