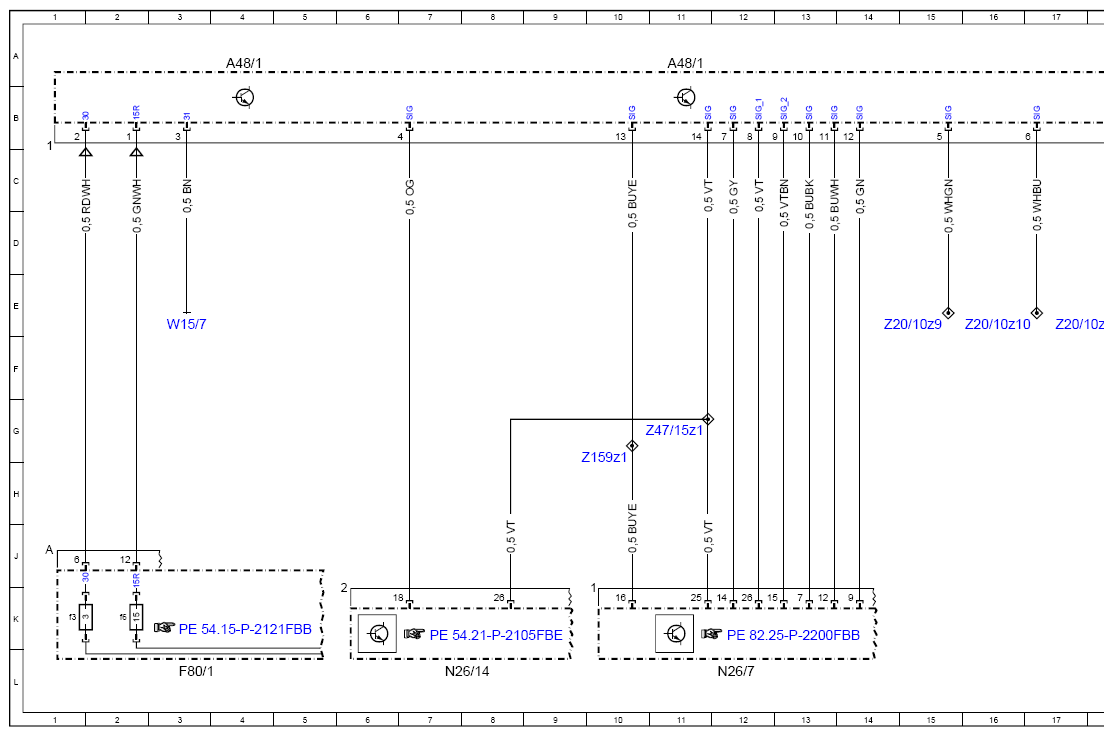

Wiring Diagram For Front Central Operating Unit - PE82.00-P-2060-97FBD
Model 205 as of model year 2019
with Code 970 (Police Emergency Vehicle)
with Code 974 (Preparation For Fire Service Command Vehicle)
with Code 975 (Preparation For Emergency Doctor Vehicle)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A48/1 | Special signal system operating unit | 4A |
| A48/1 | Special signal system operating unit | 11A |
| A48/1 | Special signal system operating unit | 19A |
| F80/1 | Special-purpose vehicle fuse block 1 | 3L |
| F80/1f3 | Fuse 3 | 1K |
| F80/1f6 | Fuse 6 | 2K |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 7L |
| N26/7 | Special signal system control unit | 12L |
| W15/7 | Right front footwell ground point | 3E |
| Z159z1 | Tone sequence active connector sleeve | 10G |
| Z20/10z10 | Wire end not stripped | 16E |
| Z20/10z11 | Wire end not stripped | 18E |
| Z20/10z12 | Wire end not stripped | 19E |
| Z20/10z9 | Wire end not stripped | 15E |
| Z47/15z1 | Emergency vehicle warning light connector sleeve | 11G |
