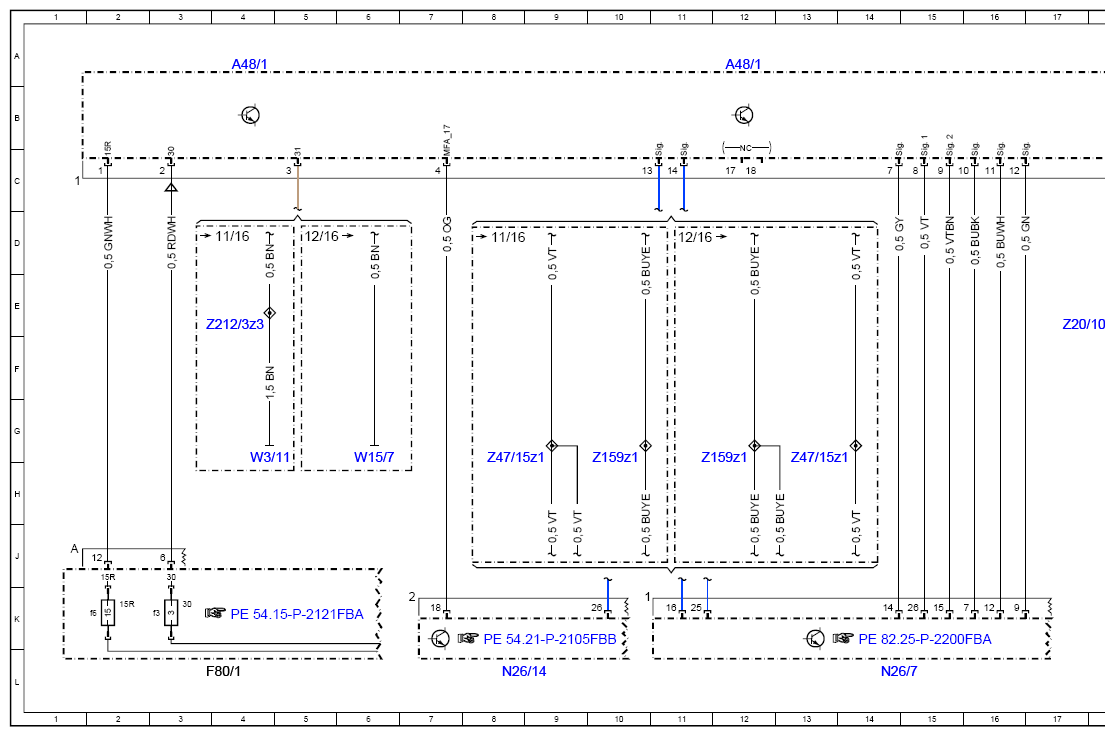

Wiring Diagram For Front Central Operating Unit - PE82.00-P-2060-97FBB
Model 205 up to model year 2019
with Code 970 (Police Emergency Vehicle)
with Code 974 (Preparation For Fire Service Command Vehicle)
with Code 975 (Preparation For Emergency Doctor Vehicle)
A48/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A48/1 | Special signal system operating unit | 4A |
| A48/1 | Special signal system operating unit | 20A |
| A48/1 | Special signal system operating unit | 12A |
| F80/1 | Special-purpose vehicle fuse block 1 | 4L |
| F80/1f3 | Fuse 3 | 3K |
| F80/1f6 | Fuse 6 | 2K |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 8L |
| N26/7 | Special signal system control unit | 14L |
| W15/7 | Right front footwell ground point | 6H |
| W3/11 | Left rear wheel well ground point | 4H |
| Z159z1 | Tone sequence active connector sleeve | 10G |
| Z159z1 | Tone sequence active connector sleeve | 12G |
| Z20/10z10 | Wire end not stripped | 19E |
| Z20/10z11 | Wire end not stripped | 21E |
| Z20/10z12 | Wire end not stripped | 22E |
| Z20/10z9 | Wire end not stripped | 18E |
| Z212/3z3 | Circuit 31 supply connector sleeve | 4E |
| Z47/15z1 | Emergency vehicle warning light connector sleeve | 8G |
| Z47/15z1 | Emergency vehicle warning light connector sleeve | 13G |
