Retrofit Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005LWR
Model 205.4
| Remove | |||
| 1 | Release front SAM control unit (N10/6) | ||
| AR54.21-P-1254LW | |||
| 2 | Detach door seals from entrance area at left and right | ||
| 3 | Use suitable means to remove front right door sills and remove adhesive residue | ||
| Topical note | Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks | Commercially available devices/tools Battery-operated drill Left and right door sill moldings are no longer required. Use commercially available surface conditioning disk with dia.100 mm. |
AH00.00-P-0013-01AK |
| 4 | Remove front floor covering on driver side | ||
| AR68.20-P-2050LW | |||
| 5 | Remove front floor covering on front passenger side | ||
| AR68.20-P-2070LW | |||
| 6 | Remove front footrest on passenger side | ||
| 7 | Fit electrical wiring harness of illuminated door sill molding with Mercedes-Benz lettering to the front | AZ82.20-P-0005-01LWR | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
Right front footwell ground point (CAN) |
*BA00.19-P-1019-01E | ||
| 8 | Install control unit for illuminated door sill moldings with Mercedes-Benz lettering | AZ82.20-P-0005-05LWR | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Self-adhesive felt strip 40x2 mm | *BR00.45-Z-1074-01A | ||
| Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | *BR00.45-Z-1084-02A | ||

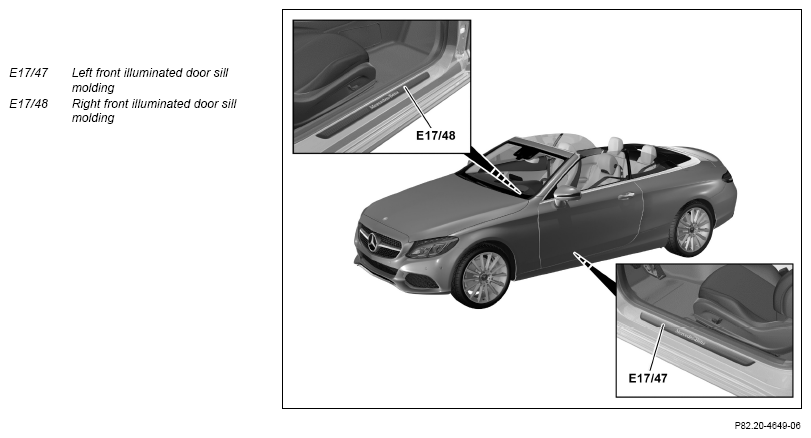

| 9 | Install front left illuminated door sill molding (E14/47) and front right illuminated door sill molding (E14/48) | AZ82.20-P-0005-10LWR | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Cleaner | *BR00.45-Z-1025-04A | ||
| Check | |||
| 10 | Carry out function check 1 *"l | Front left illuminated door sill molding (E14/47) or front right illuminated door sill molding (E14/48) is switched on by opening corresponding front door. Automatic shutoff takes place after approx. 5 min. |
|
| Install | |||
| 11 | Install footrest at front on front passenger side | ||
| 12 | Install front floor covering on front passenger side | ||
| AR68.20-P-2070LW | |||
| 13 | Install front floor covering on driver's side | ||
| AR68.20-P-2050LW | |||
| 14 | Install door seals in entrance area at left and right | ||
| 15 | Fasten front SAM control unit (N10/6) in place | ||
| AR54.21-P-1254LW | |||
| Update Vehicle Documentation (VeDoc) | |||
| 16 | Attach a note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0005LWR" under field organization texts to design groups 68 and 82 |
GROUND POINTS
| Number | Designation | Model 205 | ||
|---|---|---|---|---|
| BA00.19-P-1019-01E | Right front footwell ground point (CAN) | W15/8 | Nm | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
| BR00.45-Z-1074-01A | Self-adhesive felt strip 40X2 mm | A 001 983 23 10 |
| BR00.45-Z-1084-02A | Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |
