Retrofit Illuminated Door Sill Molding - AZ82.20-P-0001LW
Model 205.0 (except 205.012/047/064/086/087)
Model 205.2 (except 205.212/247/264/286/287)
Model 205.3 (except 205.364/386/387)
Model 205.4 (except 205.464/486/487)

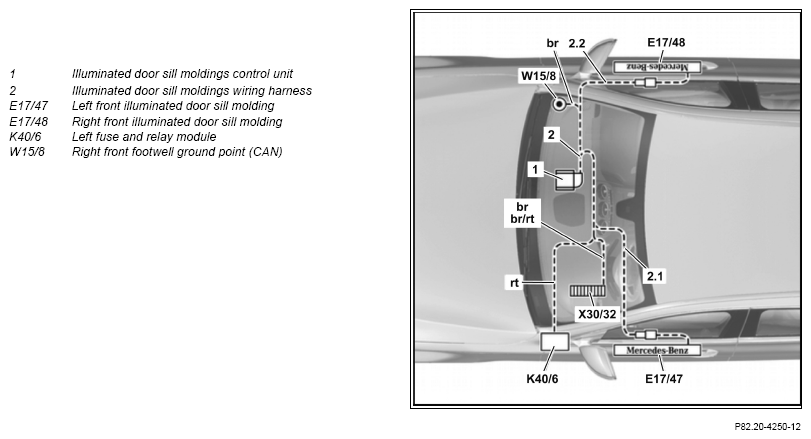

Shown on Model 205.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Move driver seat and front passenger seat towards rear | ||
| 2 | Disconnect battery ground line | ||
| AR54.10-P-0003LW | |||
| 3 | Remove left and right front inner door sills | ||
| Model 205.3/4 | AR68.30-P-4100CLW | ||
| Model 205.0/2 | AR68.30-P-4100LW | ||
| 4 | Detach door seals from entrance area at left and right | ||
| 5 | Remove cover below left of instrument panel | ||
| AR68.10-P-1500LW | |||
| 6 | Remove left instrument panel cover | ||
| 7 | Detach left fuse and relay module (K40/6) | ||
| 8 | Remove cover below right dashboard | ||
| AR68.10-P-1520LW | |||
| 9 | Remove left and right longitudinal member paneling | ||
| AR88.80-P-6000LW | |||
| 10.1 | Remove left and right front door sills and remove adhesive residue | Model 205.0/2/3 | |
| Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks | Commercially available surface conditioning disk, 0 100 mm with fixing shank. Left and right door sills are no longer required. |
AH00.00-P-0013-01AK | |
Mounting wedge |
Fig 1 | ||
| 10.2 | Remove left and right door sills with retaining frame and remove adhesive residue | Model 205.4 | |
| Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks | Commercially available surface conditioning disk, 0 100 mm with fixing shank. Left and right door sills are no longer required. |
AH00.00-P-0013-01AK | |
Mounting wedge |
Fig 1 | ||
| 11 | Remove front left floor covering | ||
| AR68.20-P-2050LW | |||
| 12 | Remove front right floor covering | ||
| AR68.20-P-2070LW | |||
| Install | |||
| 13 | Install wiring harness for illuminated door sill moldings (2) | AZ82.20-P-0001-04LW | |
| *BA00.19-P-1019-01E | |||
| 14 | Install left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48) | AZ82.20-P-0001-01LW | |
| Cleaner | *BR00.45-Z-1025-04A | ||
| 15 | Install control unit for illuminated door sill moldings (1) | AZ82.20-P-0001-05LW | |
| 16 | Install remaining parts | ||
| Update Vehicle Documentation (VeDoc) | |||
| 17 | Attach note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0001LW" to DG 68 and DG 82 under field organization texts | ||
| Check | |||
| 18 | Carry out function check | The left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48) are switched on by opening the corresponding front door. They are automatically switched off after approx. 5 min. |
GROUND POINTS
| Number | Designation | Model 205 | ||
|---|---|---|---|---|
| BA00.19-P-1019-01E | Right front footwell ground point (CAN) | W15/8 | Nm | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (refer to EPC) | Parts kit for illuminated door sill moldings | 1 |
| KG 98 (refer to EPC) | Electric line bridge | 1 |
