Retrofit Holder For CA Module Card Reader - AZ82.60-P-0032-02LW
Model 205.0 (except 205.047)
Model 205.2/3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |

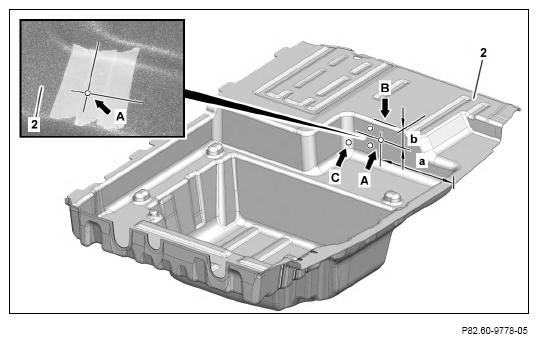

- Mask area for attachment of CA Module Card reader bracket to trunk recess paneling (2) with Velcro strip.
-
- 2.1 Model 205.0 (except 205.012/047/086/087), 205.2 (except 205.212/286/287), 205.3 (except 205.386/387) Mark hole (arrow A).
Dimensions:
a = 225 mm
b = 50 mm
- 2.2 Model
205.012/086/087/212/286/287/386/387
Mark hole (arrow A).
Dimensions:
a 135 mm
b = 50 mm
- 2.1 Model 205.0 (except 205.012/047/086/087), 205.2 (except 205.212/286/287), 205.3 (except 205.386/387) Mark hole (arrow A).

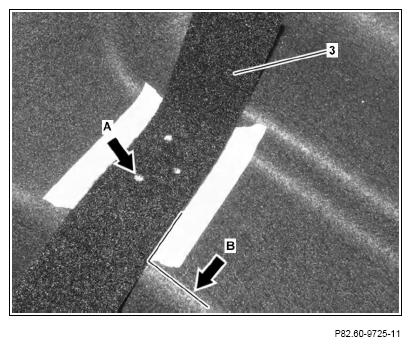

- Place Velcro strip (3) at previously marked hole (arrow A), align and mark remainder of holes in line with the strip (3).
The Velcro strip (3) must be aligned at a right angle to the reference edge (arrow B).
- Remove Velcro strip (3).
- Drill marked holes with 6 mm Ø.

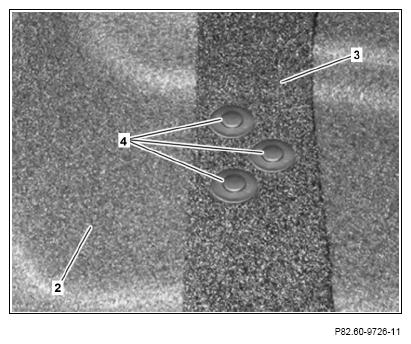

- Affix Velcro strip (3) with the expansion rivets (4) to the trunk recess paneling (2).
Use expansion rivets (4) with a Ø of 6 mm. The expansion rivets (4) are included in the scope of delivery.

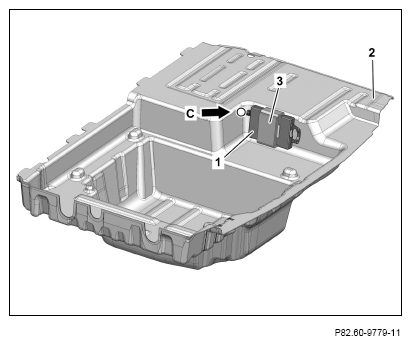

- Affix CA Module Card reader (1) to trunk recess paneling (2) using Velcro strips (3).
- Mark hole (arrow C) for guiding electrical wiring harness for CA Module Card reader (1).
- Remove CA Module Card reader (1).
- Drill marked hole (arrow C) with 6 mm Ø.

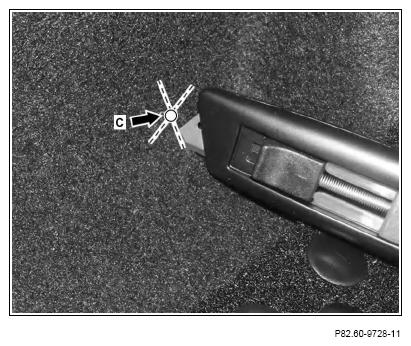

- Cut into previously drilled hole (arrow C), approx. 4 mm, four times (broken lines).
