Retrofit Front Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005-10LW
Model 205.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
Installation is shown on left side of vehicle as an example. Installation on right side of vehicle is performed analogously.

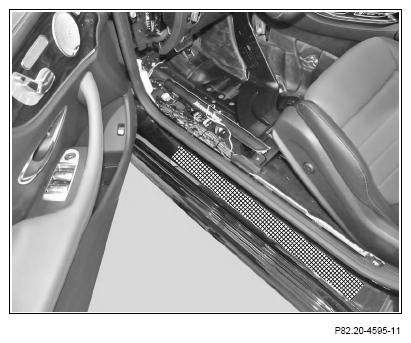

- Clean contact surface of door sill in hatched area.

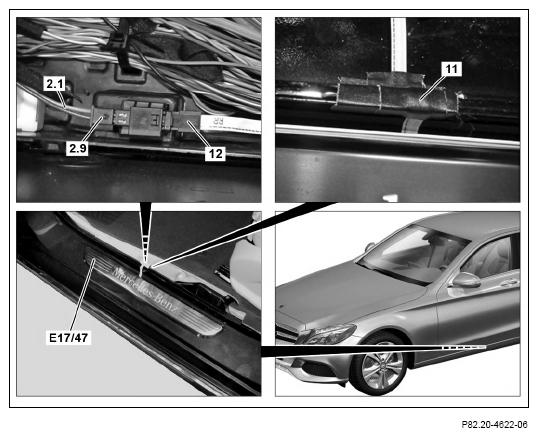

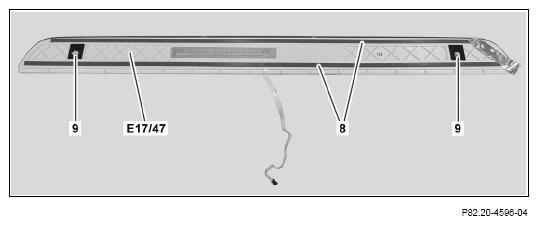

- Pull off carrier foils (8) from front left illuminated door sill molding (E17/47).
Note guides (9) during installation.
- Position illuminated door sill molding at front left (E17/47) onto longitudinal member and uniformly press on.
- Connect black 2-pin connector socket (12) of front left illuminated door sill molding (E17/47) to black 2-pin connector (2.9) of front left illuminated door sill molding branch-off line (2.1).
- Clip electrical connector into bracket on cable duct.
- Route electrical line of front left illuminated door sill molding (E17/47) over body flange on longitudinal member, and fix in place using duct tape (11).
