Retrofit Electrical Wiring Harness For CA Module Card Reader - AZ82.60-P-0032-01LWR
Model 205.4
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |

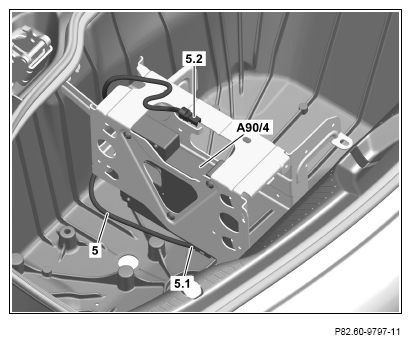

- Connect blue 1-pin connector (5.1) at tuner unit (A90/4).
- Route wiring harness (5) along existing lines to CA Module Card reader installation location.
Note extended length of wiring harness (5) for connection at CA Module Card reader.
Blue 1-pin connector (5.2) is connected to CA Module Card reader at a later point in time.
