Retrofit Control Unit - AZ82.20-P-0001-05LW

Model 205.0/1/2/3/4

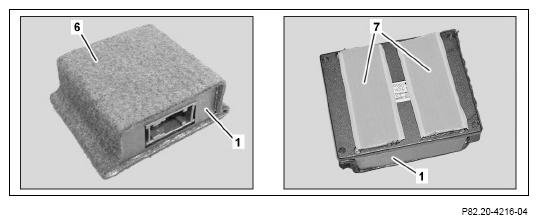

1. Stick felt tape (6) to upper side of illuminated door sill molding control unit (1).
2. Stick commercially available Velcro strips (7) to lower side of illuminated door sill molding control unit (1).

   Courtesy of MERCEDES-BENZ USA

3. Remove carrier foil from Velcro strips.

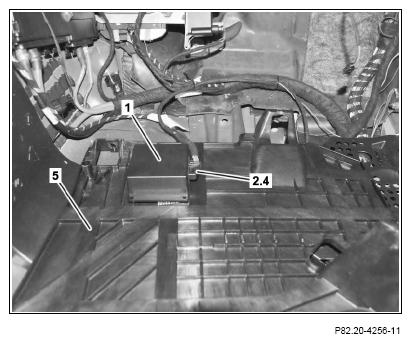

4. Glue illuminated door sill molding control unit (1) onto footrest (5).
5. Place footrest (5) into front passenger footwell.
6. Connect black 18-pin connector (2.4) of illuminated door sill molding wiring harness to illuminated door sill molding control unit (1).

   Courtesy of MERCEDES-BENZ USA
