Remove/Install Telephone Antenna Splitter - AR82.70-P-8956LWR
Model 205, 253, 293 with code 362 (HERMES communications module LTE)
Model 205, 253 with code 379 (Telephone module with Bluetooth® (SAP profile))
Model 205, 253 with code 386 (Comfort telephony)
Model 205, 253 with code B24 (Remote control for Auxiliary heating)
Model 205, 293 with code 899 (Multifunction telephony)
Model 205 with code 344 (Antenna preinstallation for taxi)
Model 253 with code 360 (HERMES UMTS)

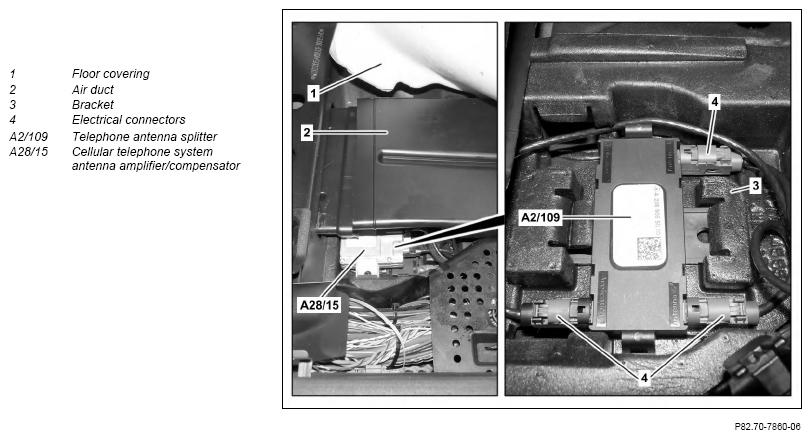

Fig 1: Telephone Antenna Splitter Components Location - Model 205 With Codes 362, 379, 386, B24, 899 And 344; Shown With Code 386
Shown with CODE 386 (Comfort telephony)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove right front seat. | Model 205.4 with code 344 (Antenna preinstallation for taxi) Model 205.4 with code 362 (HERMES communications module LTE) Model 205.4 with code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.4 with code 386 (Comfort telephony) Model 205.4 with code 899 (Multifunction telephony) Model 205.4 with code B24 (Remote control for Auxiliary heating) |
AR91.10-P-1000LWR |
| Model 205.0/1/2/3, 293 with code 362 (HERMES communications module LTE) Model 205.0/1/2/3, 293 with code 899 (Multifunction telephony) Model 205.0/1/2/3 with code 344 (Antenna preinstallation for taxi) Model 205.0/1/2/3 with code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.0/1/2/3 with code 386 (Comfort telephony) Model 205.0/1/2/3 with code B24 (Remote control for Auxiliary heating) |
AR91.10-P-1000LW | ||
| 2 | Release floor covering (1) at front right. | ||
| 3 | Release air duct (2). | ||
| 4 | Remove cellular telephone system antenna amplifier/compensator (A28/15) from holder (3) and place to one side with attached lines. | If installed. | |
| 5 | Remove telephone antenna splitter (A2/109) from holder (3) and disconnect electrical connectors (4). | ||
| 6 | Install in the reverse order. |
