Remove/Install TV Antenna Amplifier - AR82.62-P-8302LW
Model 205.0/1/2/3, 253 with code 865 (digital TV)

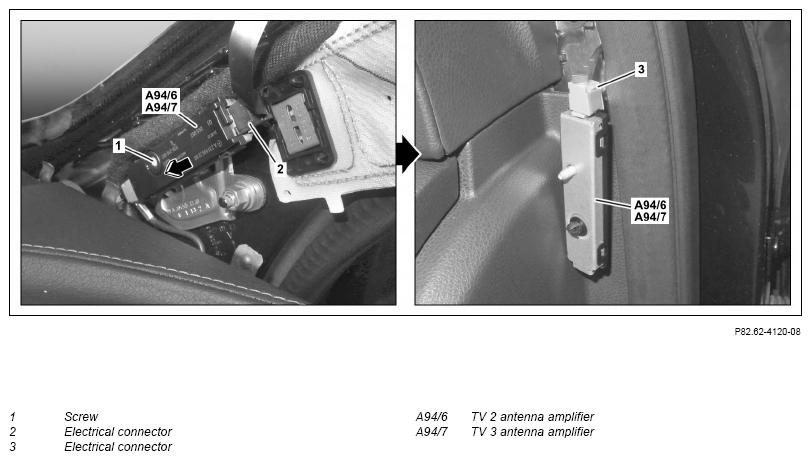

Fig 1: TV Antenna Amplifier Components Location - Model 205.0/3 With Code 865; Shown On Right Side Of Vehicle
Shown on right side of vehicle
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove paneling from left A-pillar | When removing the TV 2 antenna amplifier (A94/6) | AR68.30-P-4050LW |
| 1.2 | Remove paneling on right A-pillar | When removing the TV 3 antenna amplifier (A94/7) | AR68.30-P-4050LW |
| 2 | Disconnect electrical connector (2) | ||
| 3 | Remove bolt (1) | ||
| 4 | Unclip TV 2 antenna amplifier (A94/6) or TV 3 antenna amplifier (A94/7) at A-pillar and disconnect electrical connector (3) | ||
| 5 | Install in the reverse order |
