Remove/Install Emergency Call System Antenna - AR82.95-P-0017LWR

Model 205.4, 238.4 with code 360 (HERMES UMTS)

Model 205.4, 238.4 with code 362 (HERMES communications module LTE)

Model 205.4, 238.4 with code 364 (HERMES - UMTS communications module for Russia)

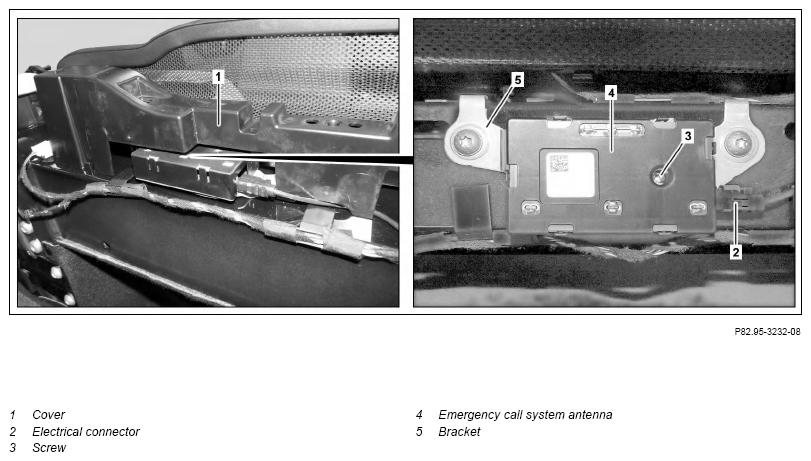

Fig 1: Emergency Call System Antenna Components Location - Model 205.4 With Codes 360, 362 And 364

Courtesy of MERCEDES-BENZ USA

Shown on model 205.4

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove trim from the roll bars.		AR68.30-P-1380LWR
2	Release and disconnect electrical connector from warning buzzer and expose electric line.
3	Remove trim (1).
4	Release and disconnect electrical connector (2).
5	Remove bolt (3).	The screw/bolt (3) remains on the emergency call system antenna (4).
6	Unclip emergency call system antenna (4) from holder (5) and remove.
7	Install in the reverse order.
