Remove/Install Emergency Call System Antenna - AR82.95-P-0017LW
Model 205.0/1/3 with code 360 (HERMES UMTS)
Model 205.0/1/3 with code 362 (HERMES communications module LTE)
Model 205.0/1/3 with code 364 (HERMES - UMTS communications module for Russia)

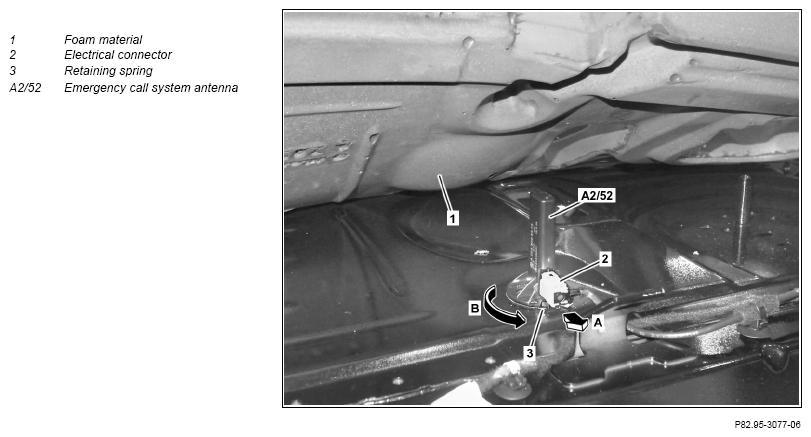

Fig 1: Emergency Call System Antenna Components Location - Model 205.0/3 With Codes 360, 362 And 364
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear shelf. | Model 205.0/1 with code 360 (HERMES UMTS) Model 205.0/1 with code 362 (HERMES communications module LTE) Model 205.0/1 with code 364 (HERMES - UMTS communications module for Russia) |
AR68.30-P-4581LW |
| Model 205.3 with code 360 (HERMES UMTS) Model 205.3 with code 362 (HERMES communications module LTE) Model 205.3 with code 364 (HERMES - UMTS communications module for Russia) |
AR68.30-P-4581CLW | ||
| 2 | Lift foam material (1) into center. | ||
| 3 | Disconnect electrical connection (2). | ||
| 4 | Lift up safety spring (3) and pull emergency call system antenna (A2/52) forward up to end stop (arrow A). | ||
| 5 | Rotate emergency call system antenna (A2/52) through 90° in counterclockwise direction (arrow B) and remove. | ||
| 6 | Install in the reverse order. |
