Remove/Install AM Antenna Amplifier - AR82.62-P-8344LWR

Model 205.4

Model 238.4

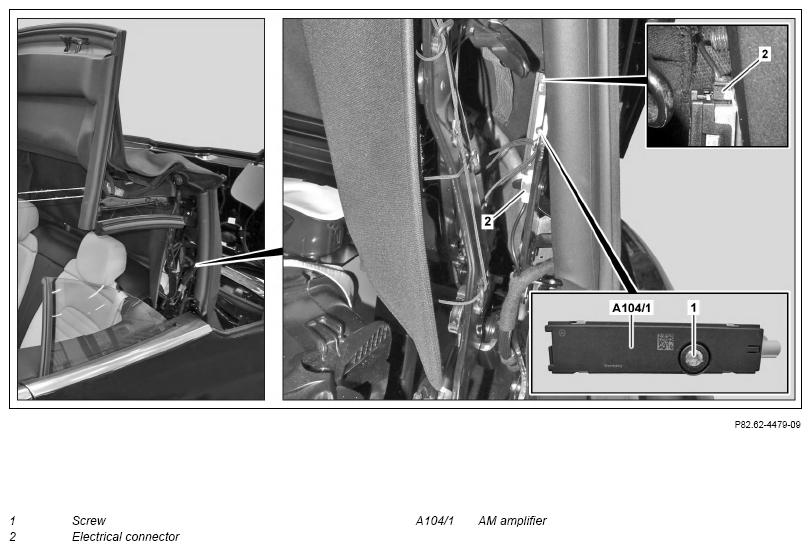

Fig 1: AM Antenna Amplifier Components Location - Model 205.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Move soft top to repair position R3		AR77.30-P-1030LWR
		Installation:  With a helper, manually mow the soft top into the soft top compartment and then close with the switch.
2	Cover the left rear fender
3	Remove bolt (1)
4	Separate electrical connectors (2)
5	Remove the AM amplifier (A104/1)
6	Install in the reverse order
